Teco Gas Manifold K2.2 multi interception 2-way 3/4 K202CC10100
1TC K202CC10100
8050880185801
Gas manifold Teco K2.2 with 2 intercepted ways Certified safety, quick connection, and easy inspection for recessed gas installations.
-
Type: Recessed gas manifold with 2 intercepted ways
-

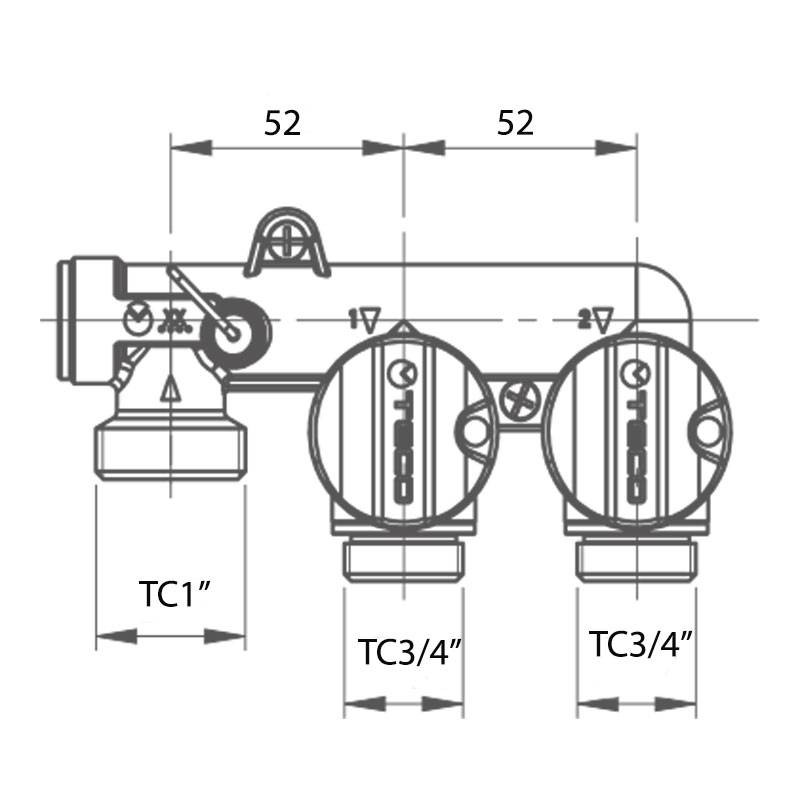

Inlet connection: TC 1 (Conical Seal)
-
Outlet connections: 2 x TC 3/4, DIN 3439 compliant
-
Interception valves: Integrated EN 331
-
Pressure outlet: compatible with Punto Arancio® (included)
-

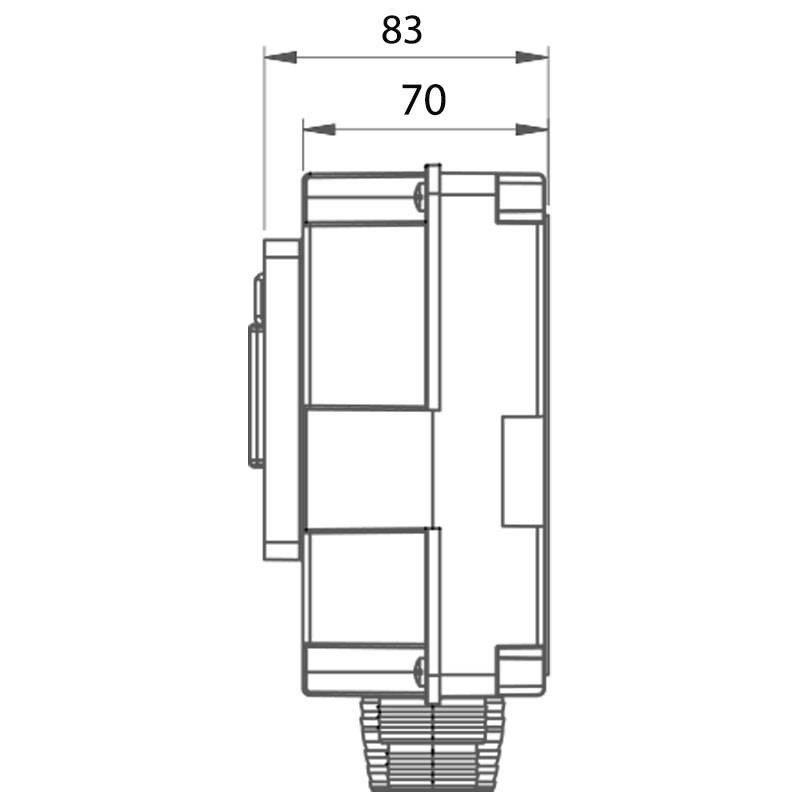

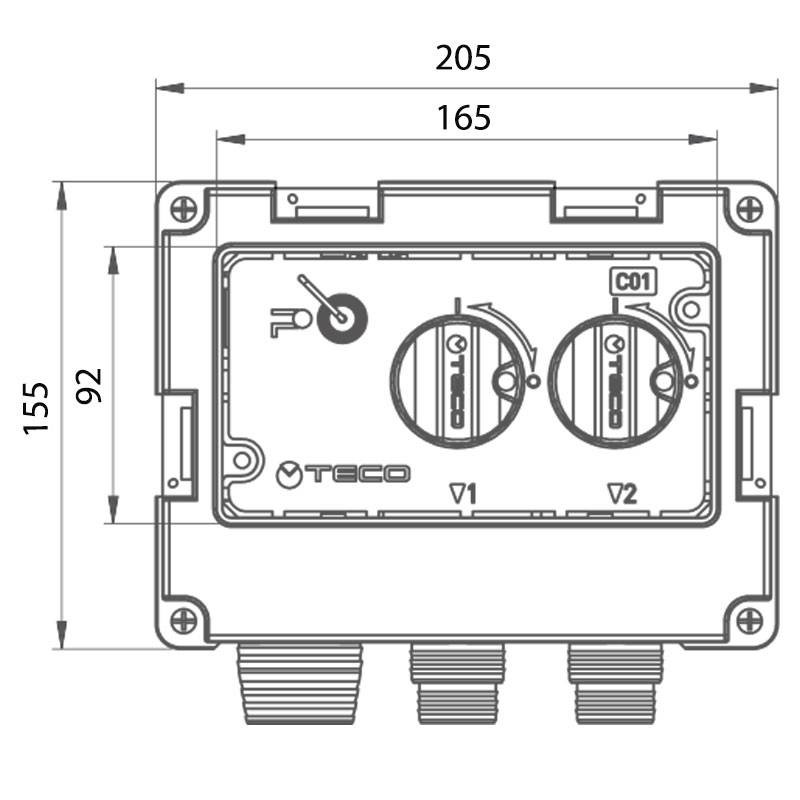

Recessed box dimensions: 205 x 155 x 85 mm
-
Body material: Brass
-
Operating temperature: 20°C / +60°C
-
Included accessories: Mounting brackets - Construction site protection - Watertight sandwich box, ventilated
-
Optional accessories: Cover plate with door (not included in package)
€91.84
Items Available: 19
: 3
Frequently bought together
Gas manifold Teco K2.2: Compact solution for gas distribution and interception

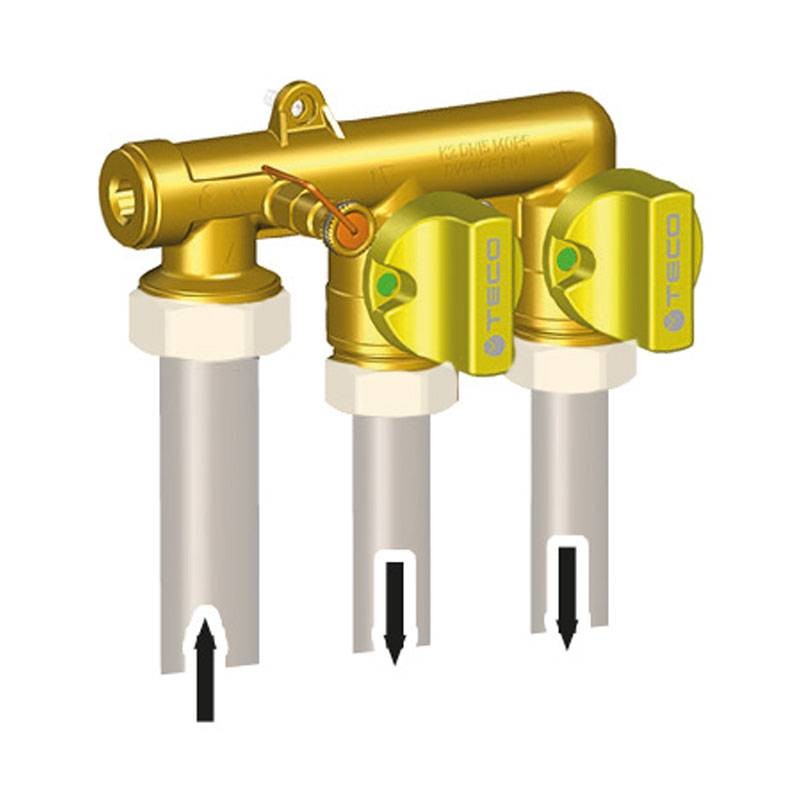

The gas manifold Teco K2.2 2-way 3/4 is designed to offer safe, modular, and inspectable gas distribution management in residential and commercial installations. Thanks to the presence of two EN331 ball valves integrated directly on the body and the Punto Arancio® pressure outlet, this manifold allows simplified control and maintenance of each line.
The conical seal inlet of 1 and the 3/4 outlets are DIN 3439 certified, ensuring perfect sealing and reliability over time even in critical conditions.

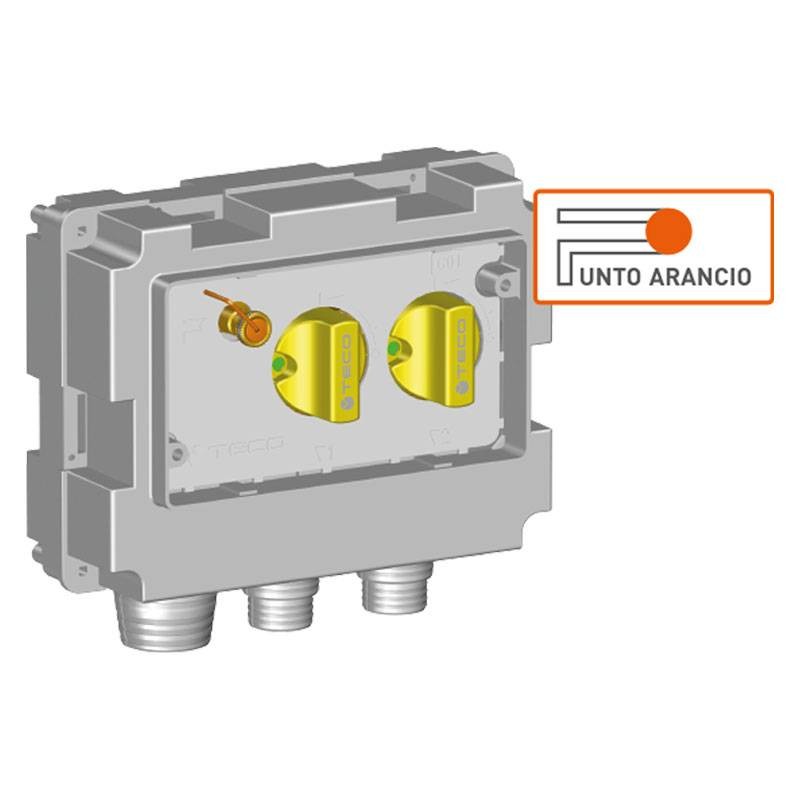

Ventilated and inspectable sandwich box
The kit is supplied with a recessed sandwich box with a watertight seal, equipped with ventilation towards the environment to comply with gas installation safety regulations. The design is studied to allow quick inspections, thanks to the manually openable cover plate (available separately in three colours), and the handles equipped with an open/closed viewer.
Simple installation, intuitive control
Installation is made quick and safe thanks to the included mounting brackets and the construction site protection, which safeguards the system during wall laying and finishing. The manual control with status viewer allows immediate control of the valves, even by the end user, in case of need or emergency.
| MAIN FEATURES | |
|---|---|
| Type | 2-way recessed gas manifold |
| Inlet connection | Conical Seal TC 1” |
| Outlet connections | 2 × Conical Seal TC 3/4” |
| Standard | DIN 3439 – EN 331 Valves |
| Material | Brass body |
| Operating temperature | –20°C ÷ +60°C |
| MOP | Compliant with residential installations for methane/LPG |
| Pressure outlet | Compatible with Punto Arancio® (2 branches) |
| BOX | |
| Box dimensions | 205 × 155 × 85 mm – Watertight, ventilated |
| EQUIPMENT | |
| Included components | 2-way manifold with valves Inspectable box Brackets Construction site protection |
| OPTIONAL ACCESSORIES | |
| Cover plate with door | Available in 3 colours |
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connections: 1 inch
3/4 inches
