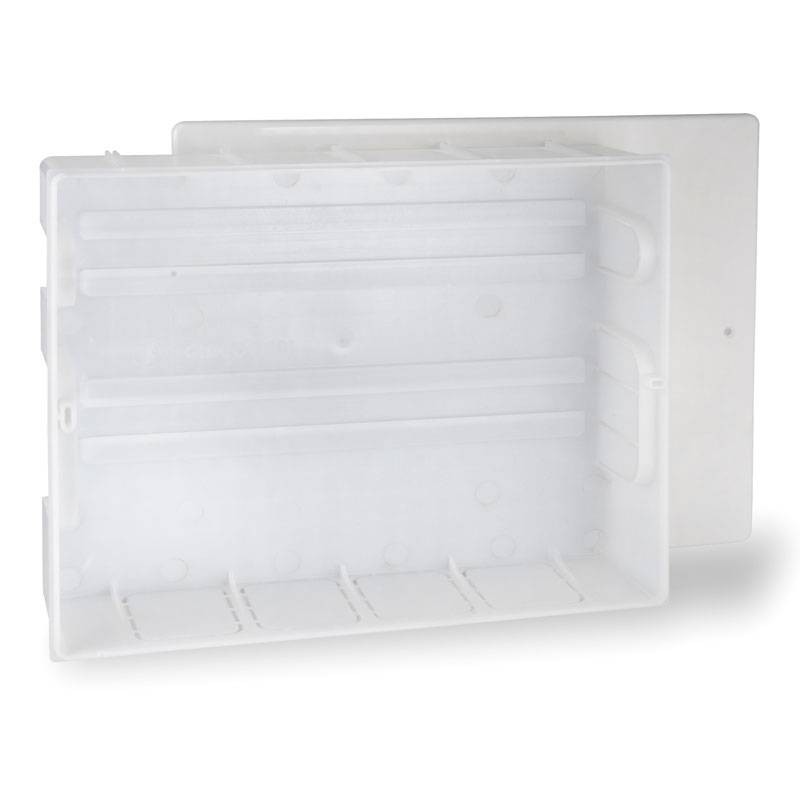

Giacomini Box for manifolds 370x300x90mm plastic R595AY002
GIM R595AY002
8009902410018
Box for Giacomini manifolds R595AY002 in plastic, dimensions 370x300x90 mm, ideal for bar manifolds of 3/4 or 1 and modular DN25.
-
Made of durable and lightweight plastic
-

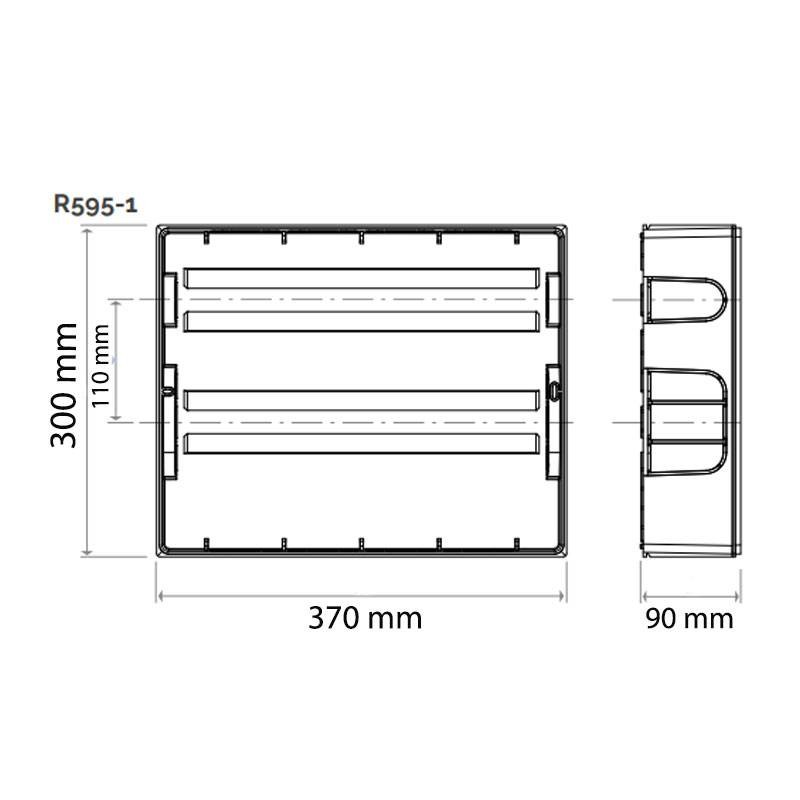

Dimensions: 370 x 300 x 90 mm
-
Compatible with 3/4 and 1-inch manifolds
-
Supports modular DN25 and Giacomini modular manifolds
-
Secure screw fixing on the cover
-
Sliding guide for centre distance hook adjustment
€13.59
Items Available: 16
: 11
Frequently bought together
Box for Giacomini manifolds R595AY002: Compact and functional solution for housing manifolds
The Giacomini manifold box R595AY002 is a practical and secure solution for the orderly and protected installation of hydraulic manifolds in heating, cooling, or domestic water distribution systems. With its compact dimensions of 370 x 300 x 90 mm, this box is ideal for residential and commercial applications where available space is limited but maximum system efficiency is required.
Compatibility with bar and modular manifolds
The box is designed to accommodate bar manifolds of 3/4 or 1 and modular manifolds DN25, ensuring wide compatibility with the main system configurations. It is also compatible with Giacomini modular manifolds of the series R580C, R585C, R580C-1, R585C-1, R580C-2, R585C-2, and R585CS, making it a modular and versatile solution for every installation need.
Durable plastic structure with secure fixing
Made of high-quality technical plastic, the box ensures resistance to impacts and corrosion, maintaining a lightweight that facilitates wall or in-wall installation. The cover is fixed with screws, ensuring stability and security even in the presence of vibrations or mechanical stresses. The structure allows easy access to the manifolds during maintenance.
Adjustable centre distance with sliding guide
The box is equipped with a centre distance with sliding guide hooks, allowing precise adjustment of the supports' position according to the manifold used. For correct installation, it is recommended to use the appropriate Giacomini R598K supports, sold separately.
There are no reviews
Data sheet
- Type: Cabinets for Manifolds
