Built-in box for manifolds Cappellotto 1000x590x80mm 1000590080
HCO 1000590080

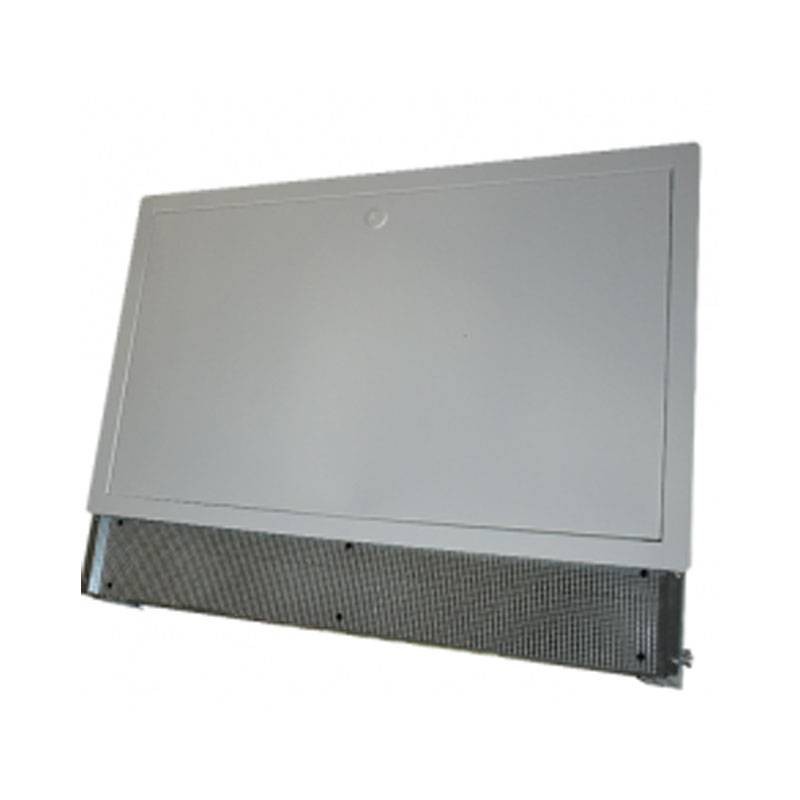

The Cappellotto manifold flush box 1000x590x80mm is a robust and durable solution for the installation of MDSS and MDK series manifolds. Made of galvanized sheet metal, this cassette is designed to provide excellent rust resistance and offers exceptional durability:
-
Material: Galvanized sheet metal, impervious to rust
-
Provision: Suitable for MDSS and MDK series manifolds with brackets
-
Cassette thickness: 80 mm
-
Installation: Easy and facilitated with mounting rails
-
Accessories: Locking lock, adjustable feet, plaster mesh
-
Adjustable frame: Front frame thickness adjustment.
€125.48
Items Available: 7
: 4
Cappellotto Built-in Cassette for Manifolds 1000x590x80mm
The Cappellotto 1000x590x80mm flush-mount cassette is designed to hold high-quality manifolds, ensuring safe and durable installation. Made of high-quality galvanized sheet metal, the cassette is impervious to rust and free of welding points, ensuring a long service life.
Ease of installation
The cassette is prepared for simplified installation thanks to specially designed mounting rails and the ability to adjust the front frame as needed. In addition, the base of the cassette is complete with a mesh for plaster clinging, sturdy adjustable feet for height, and cavities to improve structural strength.
Functionality and Benefits
The clever design of the cassette provides side walls with pre-drilled holes that allow the side passage of collector supply piping. In addition, the cassette offers the possibility of laterally translating the manifold, thus increasing the flexibility of the installation.
Technical characteristics.
- Material: galvanized sheet metal
- Cassette thickness: 80 mm
- Dimensions: 1000 x 590 x 80 mm
- Color: White
- Accessories included: mesh for plaster clinging placed on the back panel and lower front base; sturdy feet for height adjustment, anchors and cavities for better structural strength
There are no reviews
Data sheet
- Type: Cabinets for Manifolds
