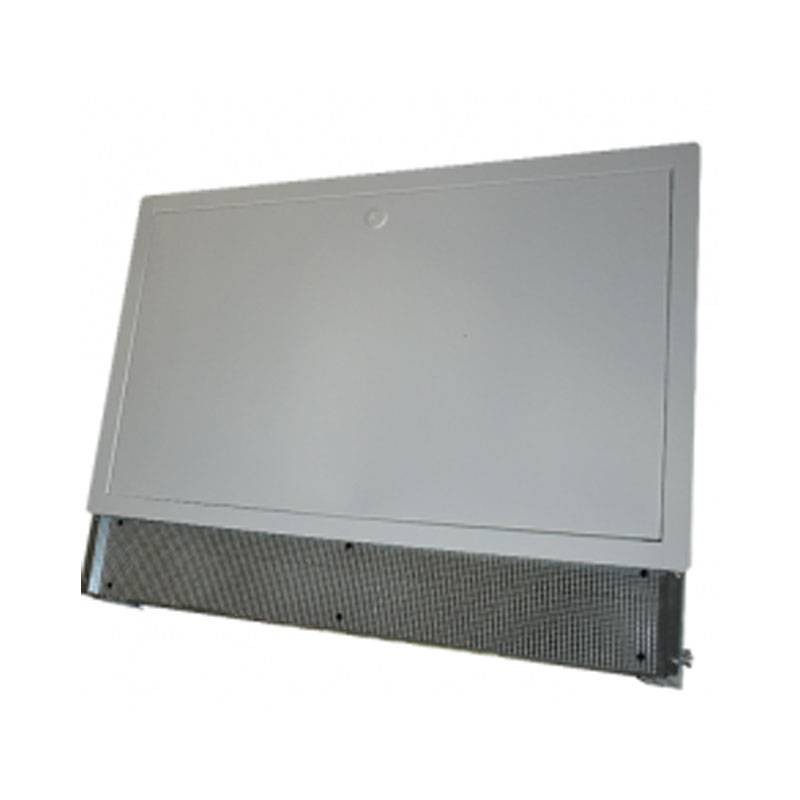

Built-in box for manifolds Cappellotto 750x590x80mm 0750590080
HCO 0750590080
The 750x590x80mm Capellotto Manifold Recessed Box is a solid and durable solution for the installation of MDSS and MDK series manifolds. Made of galvanized sheet metal, it is designed to be rust-resistant due to the absence of welding points. In addition, the box offers a practical and functional design that facilitates installation and ensures a long service life:
-
Material: rust-resistant galvanized sheet metal
-
Cassette thickness: 80 mm
-
Dimensions: 750 x 590 x 80 mm
-
Easy installation: Prepared for installation with mounting rails for MDSS and MDK collectors
-
Frame adjustment: Adjustable front frame to suit specific needs
-
Fully assembled: The cassette is delivered already assembled for quick installation
-
Security and sturdiness: Frame and door painted white, with locking latch.
€103.41
Items Available: 10
: 9
Recessed Cassette for Cappellotto Manifolds 750x590x80mm
The cassette is designed to ensure quick and safe installation. The mounting rails make it easy to install the MDSS and MDK series manifolds, which are equipped with brackets. At 80mm thick, the cassette is sturdy and equipped with all necessary accessories, such as plaster clinging netting and adjustable height feet, which ensure perfect stability.
Practicality and flexibility
The cassette is equipped with side walls with pre-drilled holes to allow side passage of collector supply piping. In addition, the ability to laterally translate the manifold allows for easy adaptation to different configurations. The back panel and lower base are provided with anchors and cavities, which provide structural strength and facilitate installation.
Safety and reliability
The 750x590x80mm Cappellotto cassette is designed to ensure not only durability but also installation security, with a flat-edge door and lock to prevent unauthorized access. In addition, the frame can be easily adjusted to suit the specific needs of the installation.
Specifications:
- Material: rust-resistant galvanized sheet metal
- Box thickness: 80 mm
- Dimensions: 750 x 590 x 80 mm
- Color: White
- Accessories included: Lock, adjustable feet, plaster mesh
- Installation: Prepared for MDSS and MDK manifolds
- Fixing accessories: Fixing rails for collectors
- Lateral translation: Possibility to translate the collector laterally
- Pre-drilled side holes: Lateral piping passage
There are no reviews
Data sheet
- Type: Cabinets for Manifolds
