Far Manifold with Manual Stops 3825 MF 2-Way 3/4" 3825 34
RFR 3825 34
8032628353161

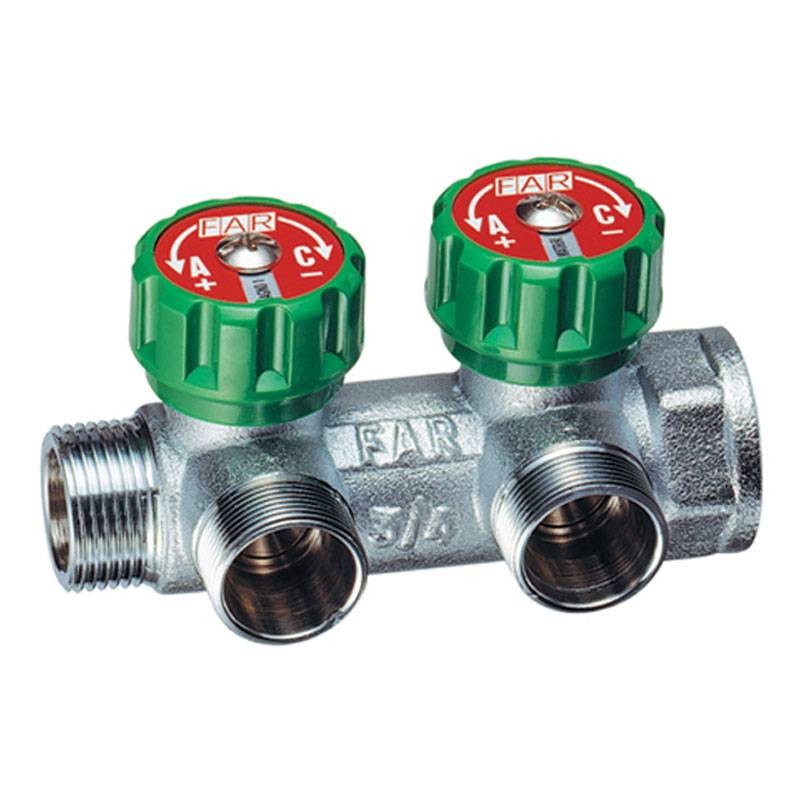

Far Multifar 3825 chrome-plated sectional manifold, for plumbing or heating systems, with manual 2-lead stops:
- Interchangeable connections for copper, plastic and multilayer pipe
- Side connections: 3/4 male-female
- Branch spacing: 45 mm
Each stop is equipped with a handwheel with two silk-screen-printed discs with which the utility connected to each branch can be identified.
€17.67
Items Available: 123
: 71
TENDER ITEMS: Chromed brass modular Multifar manifold with 2 outlets for sanitary, heating or cooling systems, with 3/4 male-female side connections, shut-off valves having: double o-ring seal on the Rod, rubber shutter plate and handwheel with two screen-printed discs for user or circuit identification; outlets with interchangeable connections for copper, plastic and multilayer pipe, 45 mm spacing. Max. operating temperature 95°C. Max operating pressure 10 bar.
Overview: MULTIFAR manifolds are modular manifolds with built-in stops or lockshields that can be used on sanitary water systems and heating systems. Shut-offs located on each branch allow connected utilities to be directly excluded from the inspection box for any work, such as installation, maintenance or replacement. Installed in distribution boxes, they feature valve control knobs and lockshield adjustment screw on the front, allowing the user convenient operation.
There are no reviews

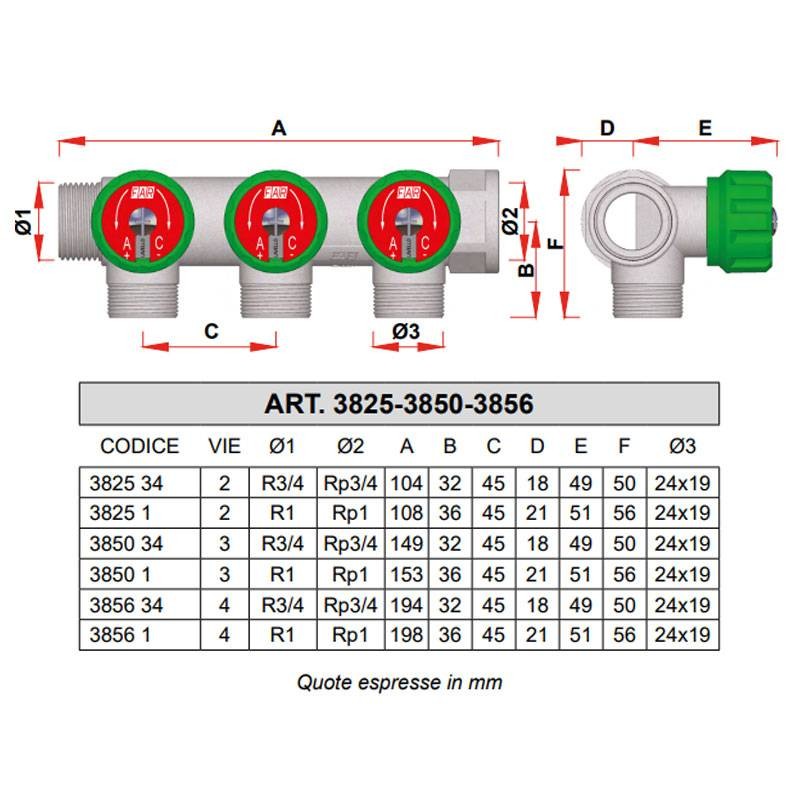

Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Connections: 3/4 inches
