Etelec medium voltage cable lugs 25-95 sq mm D 13 mm CR025095F13
ETL CR025095F13
8053323907008

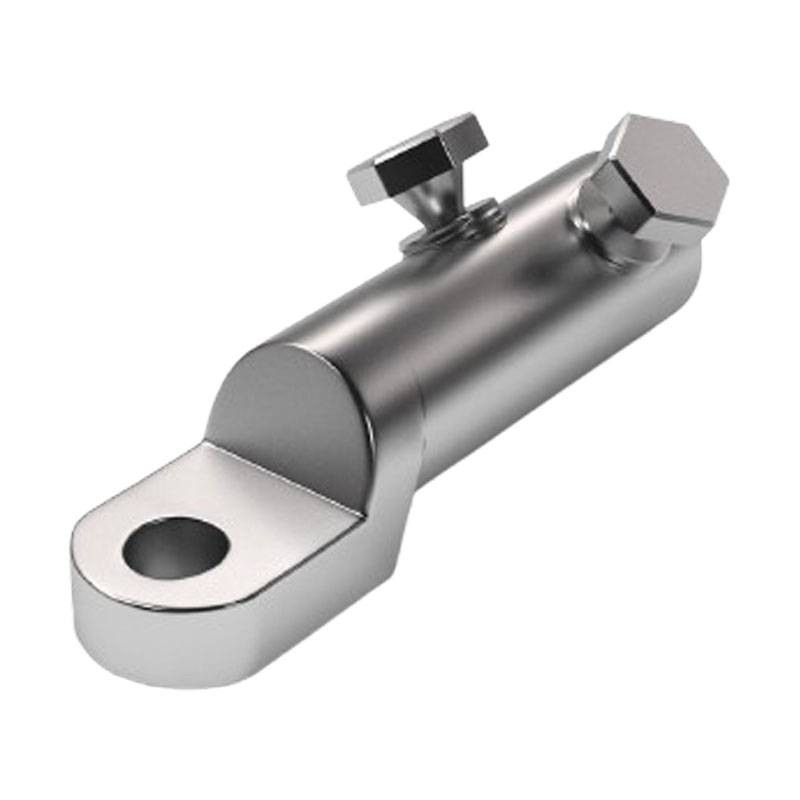

Etelec Mechanical Lug is designed for termination of copper and aluminum cables up to 36 kV. Made of tinned aluminum, it provides a secure connection by mechanical bolting with break bolts, eliminating the need for crimping tools, with the following features:
-
Conductor section: 25-95 sq mm
-
Maximum voltage: 36 kV
-
Hole diameter: 13 mm
-
Bolt head size: 14 mm
-
Material: Tin-plated aluminum
-
Compatibility: Copper and aluminum cables
€14.63
Items Available: 54
: 2
Etelec cable lugs: Reliable Connection, Durable Materials and Easy Installation
Secure connection without crimping
By mechanically tightening with breakaway bolts, the Etelec lug ensures a stable and reliable connection without the use of specialized equipment.
High-quality material for maximum durability
Made of tinned aluminum, it ensures excellent corrosion resistance and perfect electrical conductivity, making it ideal for medium voltage applications up to 36 kV.
Easy installation on different cable sections
Thanks to its multi-section design and shaped insert, it is suitable for different types of conductors, offering maximum flexibility in installations.

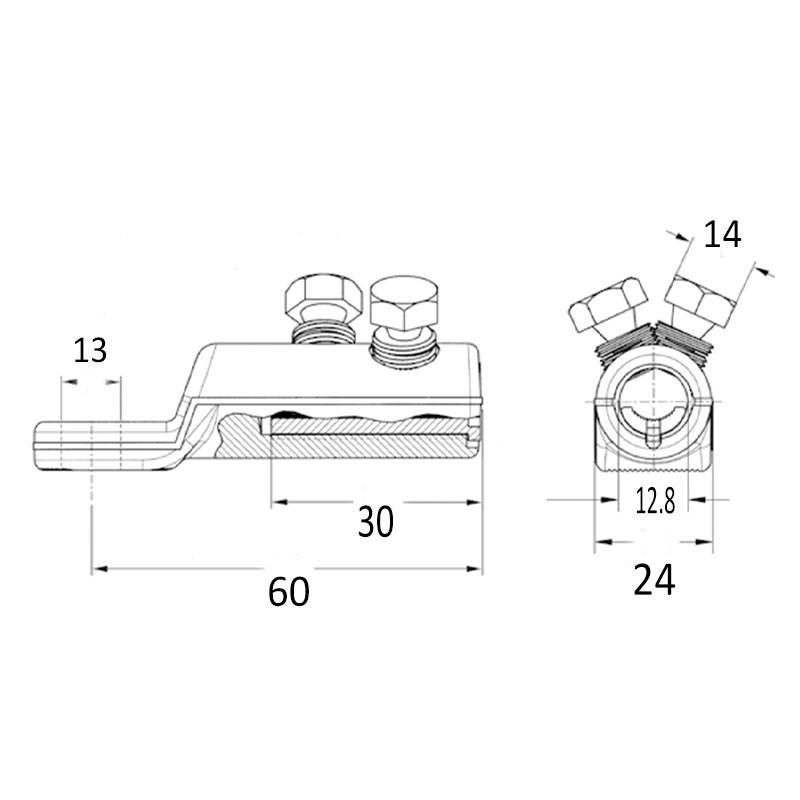

Technical Specifications Etelec cable lug
| Feature | Value |
|---|---|
| Conductor section | 25 to 95 sq. mm. |
| Hole diameter | 13 mm |
| Bolt head size | 14 mm |
| Maximum voltage | 36 kV |
| Material | Tin-plated aluminum |
| Technology | Mechanical clamping |
| Compatibility | Copper and aluminum cables |
| Copper cable | Yes |
| Aluminum cable | Yes |
| Suitable for multiple sections | Yes |
| Internal lubricant | Yes |

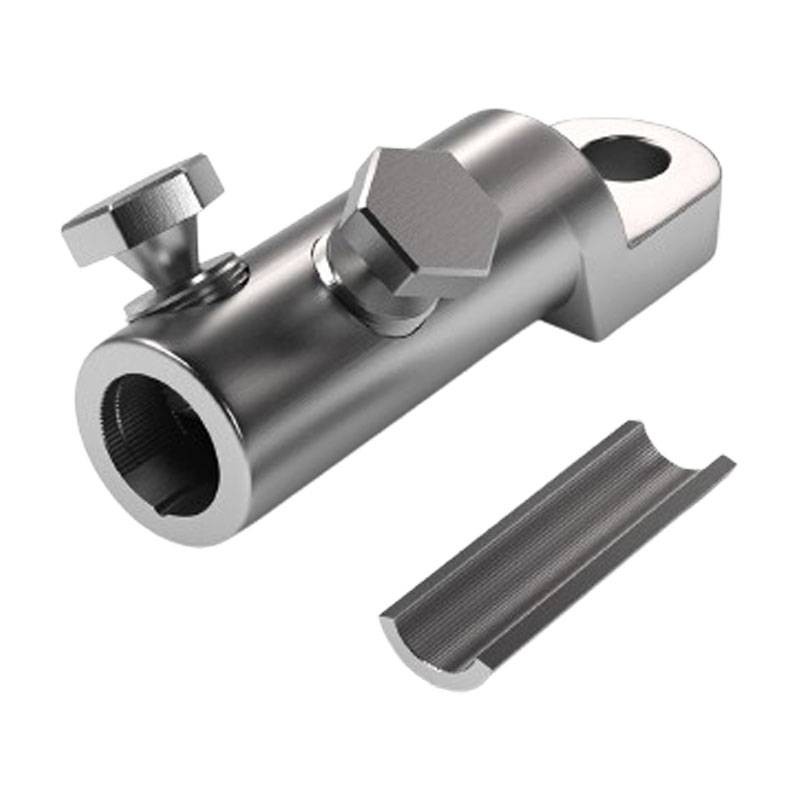

| Shaped insert | For use on smaller section cables |
| Installation | Without the use of crimping tools |
There are no reviews
Data sheet
- Diameter: 13mm
- Type: Terminal lugs
- Cross-Section: 25-95 mmq
