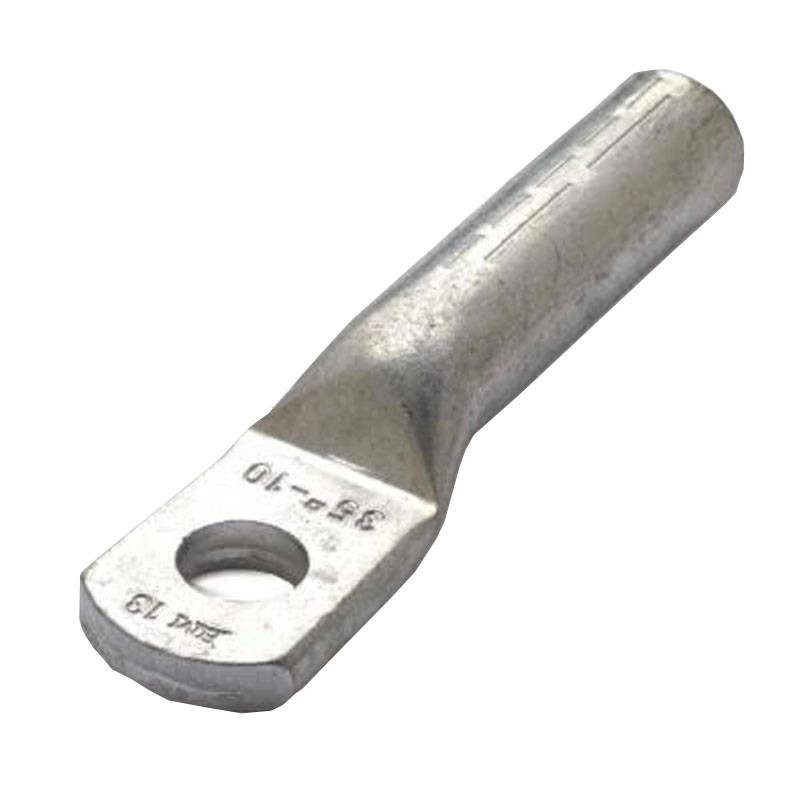

BM lugs for uninsulated aluminum conductors DIN 150-12 76150
BMM 76150
BM cable lugs for non-insulated aluminum conductors DIN 150-12 with the following characteristics:
- Non-compact circular or sectional conductor cross-section: 150 mm²
- Circular compact conductor section: 185 mm²
- Screw diameter: 12 mm
- Stud size for screw: 1/2"
- Matrix hexagon number 25mm
- Material: aluminum 1050 A EN573-3 with purity not less than 99.5%
Conductor housing is filled with grease (drop point at 90°C) and closed with plastic cap to prevent oxidation.
BM lugs for uninsulated aluminum conductors DIN 150-12 76150
€7.84
€7.84
Tax included
Tax included
Pay in installments with Klarna
Items Available: 7
Data sheet
- Diameter:
- 12mm
- Type:
- Terminal lugs
