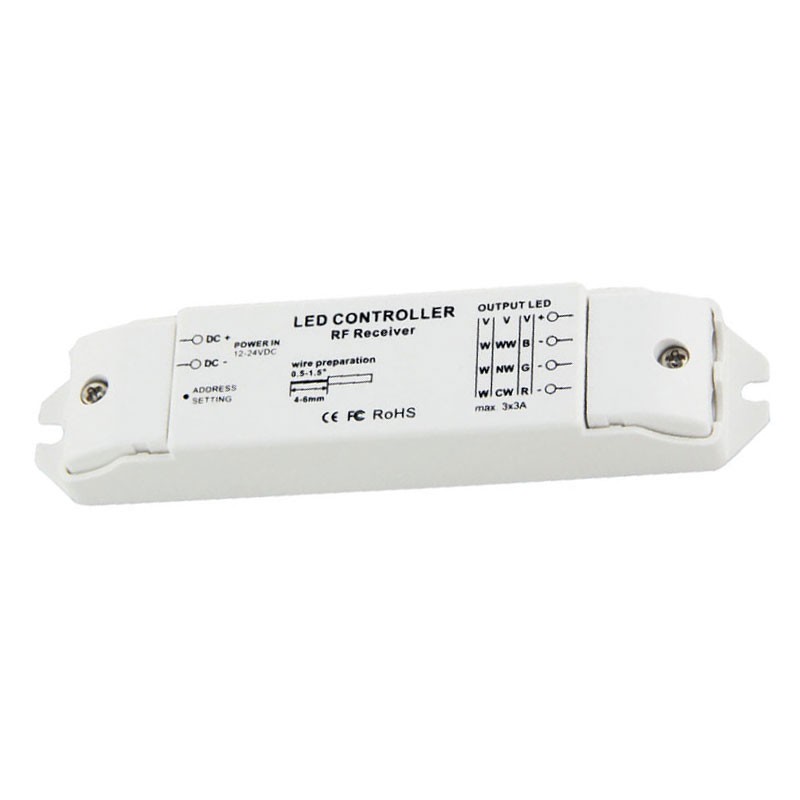

Ledco Multifunction receiver Output 3A x 3 channels 12-24V DC CT780
2AV CT780
Ledco multifunction receiver for managing up to 4 Led zones with RF remote controls (433.92 MHz). Compatible with dimmer, dynamic white, and RGB. Wall, recessed, or ceiling installation, with the following features:
-
Number of manageable zones: Up to 4
-
Compatible remote controls: CT750 - CT760 - CT770 (not included)
-
Input voltage: 12-24V DC
-
Maximum output current: 9A total (3A x 3 channels)
-
Transmission type: Radio frequency 433.92 MHz
-
Operating range: 40 - 50 m in open field
-
Installation: Recessed - Ceiling - Wall
€43.62
Items Available: 3
: 2
Frequently bought together
Ledco Receiver centralized and flexible management for Led systems
The Eco Ledco CT780 Multizone Receiver is the ideal solution for controlling up to 4 independent LED lighting zones. Designed for professional and residential applications, it can be paired with various Ledco remote controls to manage monochromatic, dynamic white, or RGB lights, adapting to complex and customizable systems.
Independent outputs and high power
The receiver features 3 output channels of 3A each, for a total maximum current of 9A. It supports an output power of up to 216W at 24V or 108W at 12V, making it suitable for managing high-intensity LED strips. The 3A x 3 channels configuration makes it ideal for RGB, but it is perfectly compatible with dynamic white or simple dimming.
Compatibility with Ledco multifunction remote controls
The CT780 is designed to be paired with various models of Ledco remote controls, available separately:
-
CT750 – for monochromatic strips (dimmer)
-
CT760 – for dynamic white
-
CT770 – for RGB strips
It is possible to associate up to 4 zones for each remote control, and each zone can be controlled individually. The association is done via a side button near the terminals, quickly and intuitively.
Simple and versatile installation

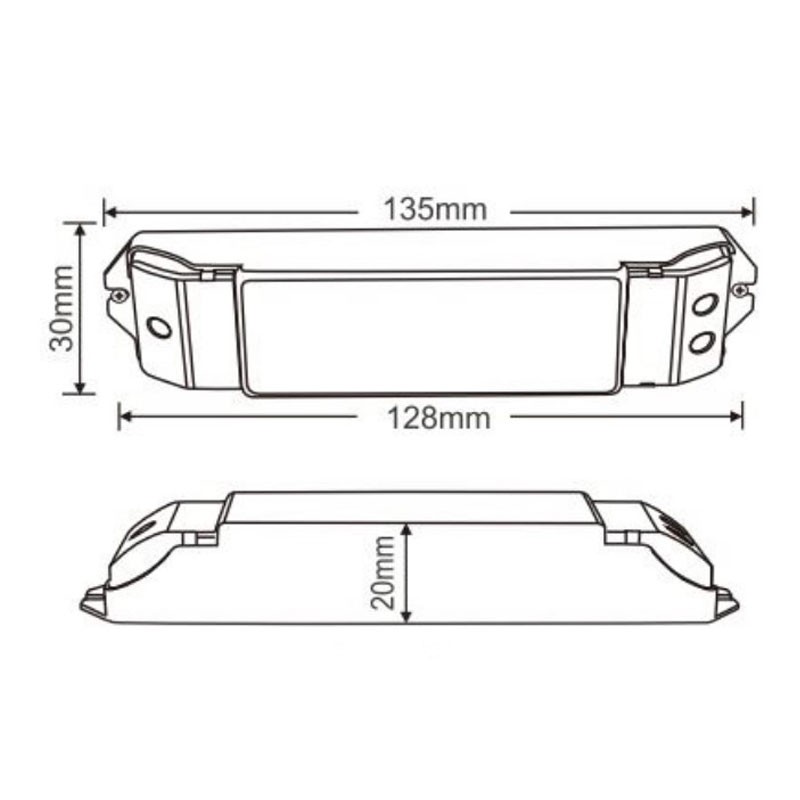

The compact (135 x 30 x 20 mm) and lightweight (390 g) body allows for wall, recessed, or ceiling installation, offering maximum flexibility during mounting. The IP20 protection rating makes it suitable for indoor environments, such as homes, offices, showrooms, or commercial premises.
Reliability and consistent performance
The receiver operates with an input voltage of 12/24V DC, recommending the use with compatible Ledco power supplies to ensure maximum efficiency and safety. The RF frequency at 433.92 MHz ensures an operating range of up to 50 metres in open field, without the need for direct line of sight.
Technical Features Ledco Receiver
| Number of manageable zones | Up to 4 |
| Type of supported control | Monochromatic / Dynamic white / RGB |
| Compatible remote controls | CT750 / CT760 / CT770 (not included) |
| Input voltage | 12V / 24V DC |
| Maximum output current | 9A total (3A × 3 channels) |
| Maximum output power | 108W @ 12V / 216W @ 24V |
| Type of output | 3 channels (3A × 3CH) |
| Type of transmission | Radio frequency 433.92 MHz |
| Operating range | 40 – 50 m in open field |
| Installation | Recessed / Ceiling / Wall |
| Body material | PVC |
| Power supply | Not included |
| Operating temperature | -20 °C ÷ +50 °C |
| Insulation class | Class 3 |
| Protection rating | IP20 |
| Dimensions (L × W × H) | 135 × 30 × 20 mm |
There are no reviews
Data sheet
- Type: Amplifiers
- Voltage: 12/24V
- Degree of protection: IP20
- Installation: External
