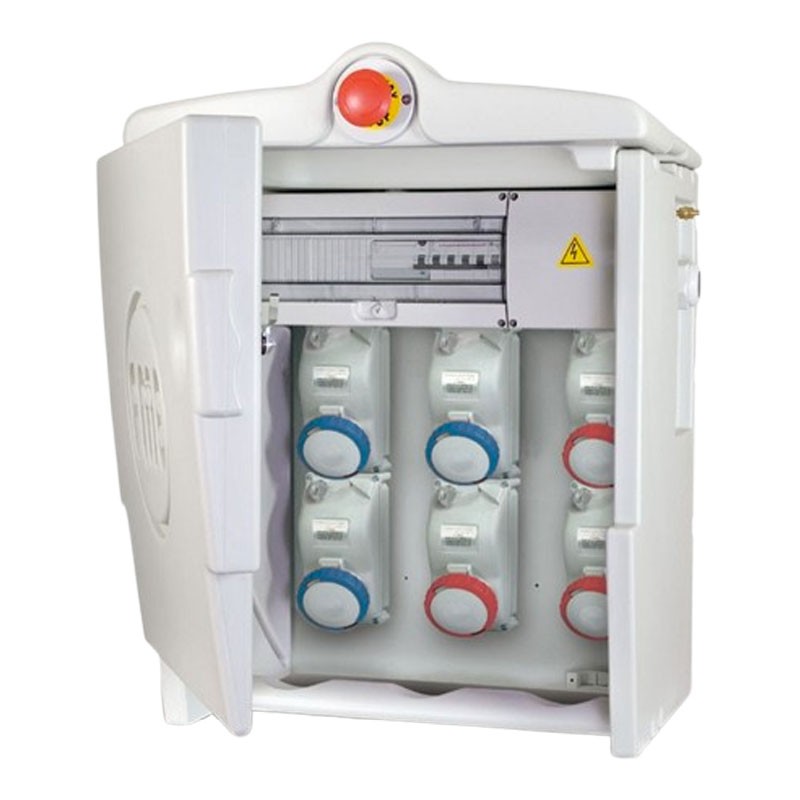

Fanton Polifemo MIDI ASC IP55 6 Sockets Electrical Panel 74712

Fanton
Fanton
FME 74712 8015450747124

Fanton Polifemo MIDI ASC switchboard, robust, safe and ready to use in construction sites and industrial environments, with the following features:

  • Interlocked sockets: 3x 2P+E 16A 230V - 2x 3P+E 16A 400V - 1x 3P+N+E 32A 400V

  • General protections: Magnetothermal 4P 32A C - Differential 4P 40A 30mA AC

  • Socket protections: 2P 16A C magneto-thermal switch - 3P 16A C

  • Degree of protection: IP55

  • Maximum power: 18 kW

  • Housing DIN modules: Up to 17 modules

  • Installation: Wall (with brackets) or floor (optional bracket)

  • Structure material: UV-stabilized shockproof thermoplastic

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fanton Polifemo MIDI ASC IP55 6 Sockets Electrical Panel 74712
€1,170.29
€1,170.29

€1,170.29
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€1,170.29

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

ASC compliant distribution board for construction sites and harsh environments

The Fanton Polifemo MIDI ASC switchboard is a professional solution designed to meet electrical distribution needs in construction sites, industrial environments and mobile situations. Compliant with CEI EN 61439-1 and 61439-4 standards, it is classified as an ASC (Construction Site Series Built Equipment) switchboard and guarantees reliability, durability and maximum safety of use.

Robust and outdoor-resistant structure

High-strength, UV-stabilized thermoplastic material construction ensures durability even in harsh environmental conditions. IP55 rating protects against dust and splash water, while heat resistance (self-extinguishing glow-wire test 650°C) makes it suitable for the specific demands of construction sites.

Its compact size makes it easy to place even in tight spaces, and its built-in handles make it easy to carry. It can be installed on the wall using brackets (included) or on the floor with the galvanized bracket (accessory).

Fully equipped with outlets and guards

The switchboard is wired and ready to use, equipped with 6 IP67 interlocked outlets, protected against dust and water jets:

  • 3 x 2P+E 16A 200-250V 6h

  • 2 x 3P+E 16A 380-415V 6h

  • 1 x 3P+N+E 32A 380-415V 6h

Each receptacle is interlocked, ensuring totally safe insertion and removal.

Integrated protections for maximum safety

The panel includes general and dedicated protections for individual outlets:

  • 1 circuit breaker 4P 32A curve C

  • 1 differential circuit breaker 4P 40A 30mA AC type

  • 1 thermomagnetic circuit breaker 2P 16A curve C (for single-phase outlets)

  • 1 thermomagnetic circuit breaker 3P 16A curve C (for three-phase outlets)

There is also an emergency push-button, for quick power interruption in case of anomalies.

Flexibility and ease of use

The switchboard is supplied with internal terminal block (25 sq mm section) for direct connection to the power line, ideal for supporting even high power loads (up to 18 kW). The open bottom allows cables to exit even with plugs inserted, and access can be blocked by lock even during use.

Up to 17 DIN modules can be housed inside the semi-transparent doors, protected and accessible only by authorized personnel.

Contents and equipment

Each switchboard comes with:

  • Declaration of conformity and wiring diagram

  • Component nameplates

  • Document folder

  • Accessory kit: terminal block, cable clamps, screws, labels

Fanton Switchboard Technical Specifications

Parameter Value
Degree of protection IP55
Maximum power 18 kW
Interlocked sockets 3x 2P+E 16A 230V - 2x 3P+E 16A 400V - 1x 3P+N+E 32A 400V (IP67)
General protections Circuit breaker 4P 32A C - Differential 4P 40A 30mA AC
Socket protections 2P 16A C magneto-thermal switch - 3P 16A C
Emergency button Yes
Power supply type Terminal block 25 mm²
DIN module housing Up to 17 modules
Installation Wall (with brackets) or floor (optional bracket)
Structure material UV-stabilized shock-resistant thermoplastic
Self-extinguishing Glow-wire test 650°C
Color Light gray
Dimensions 574 x 750 x 430 mm
Accessories included Handles, brackets, terminal block kit, documentation
Standards Complies with IEC EN 61439-1 / 4

There are no reviews

Data sheet

Type:
Switchboards for construction sites
Voltage:
220/415VAC
Poles:
2P+E
3P+E
3P+N
Degree of protection:
IP55
Installation:
Wall-mounted
Amps:
16A
32A
