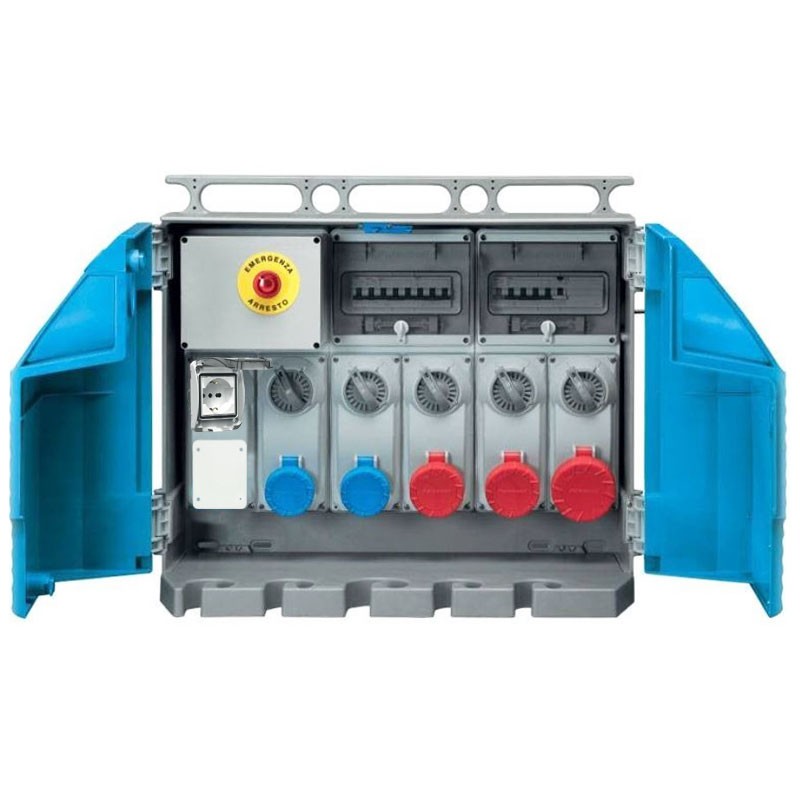

Switchboard with cabinet 6 fixed sockets 30 kW IP65 680x585x340 616110
PAL 616110
8014950039692
Switchboard with cabinet with 5 interlocked fixed industrial outlets, 1 civilian outlet and with circuit breaker Palazzoli ENERGY GO series with the following characteristics:
- Power: 30 kW
- Number of outlets: 6
- Number Sockets: 2 of 16A 2P+T 230V - 2 of 16A 3P+T 400V - 1 of 32A 3P+N+T 400V - 1 civil socket 2P+T 10/16A P30/P17 250V
- Rated voltage: 230-400V
- Degree of protection: IP66
- Portable
- Dimensions: 680x585x340mm
€1,119.52
Items Available: 12
Features:
- With circuit breaker
- Portable
- Emergency button
- Input type: M40
- Power 30 kW
- Number of Sockets: 2 x 16A 2P+E 230V - 2 x 16A 3P+E 400V - 1 x 32A 3P+N+E 400V - 1 x civilian socket 2P+E 10/16A P30/P17 250V
- Degree of protection: IP65
- Rated voltage: 230-400V
- Frequency: 50/60Hz
- Shock resistance: IK10
- Ambient storage temperature: -30/+70 degrees
- Ambient temperature: -25/+50 degrees
- Material: Technopolymer
- Insulation class: II
- Dimensions 680x585x340 mm
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Voltage: 230/400VAC
- Poles: 2P+E
- Degree of protection: IP66
- Installation: Wall-mounted
- Amps: 16A
3P+E
3P+N+E
32A
