Fanton Ulisse electrical panel 6 outlets 4 protectors with cable 74396
FME 74396
8015450743966

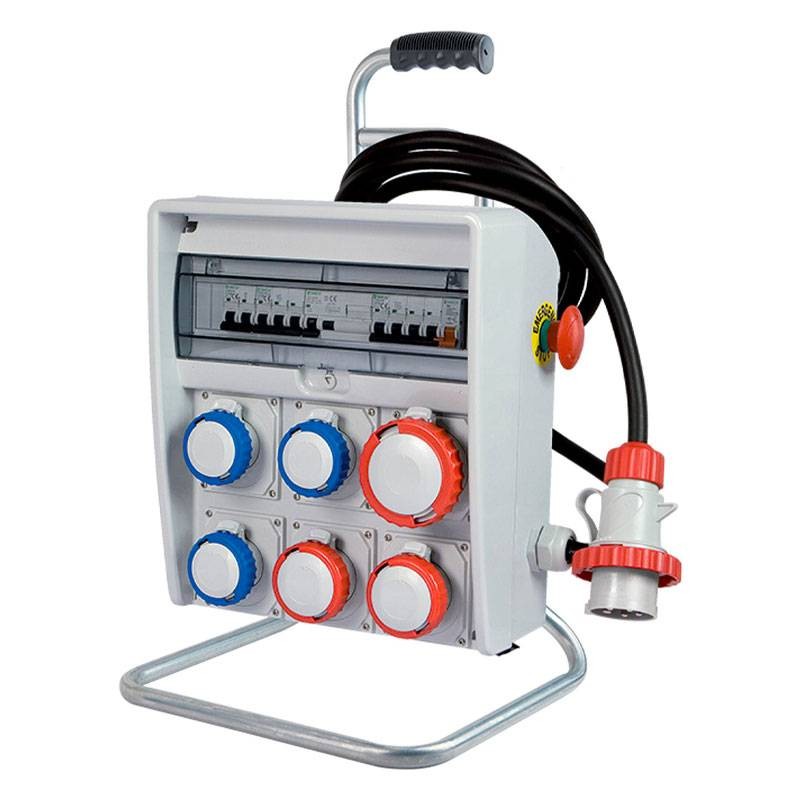

Fanton Ulisse Electric Switchboard equipped with 6 CEE sockets and integrated protections, 4-meter 5G6 H07RN-F cable, emergency button and metal stand, with the following features:
-
6 IP67 CEE sockets: 3 sockets 2P+E 16A 230V, 2 sockets 3P+E 16A 400V, 1 socket 3P+E 32A 400V
-
4 built-in protections: 2 circuit breakers, 1 differential, 1 general
-
Rubber cable: 5G6 H07RN-F, length 4 meters
-
Plug: 3P+N+E 32A 400V IP67
-
Structure: IP65 plastic with metal support and emergency button
-
Max power: 18 kW
-
Rated voltage: 400V
-
Rated current: 32A
€564.46
Items Available: 1
Complete and durable Fanton construction site switchboard
The Ulysses 350 ASC IP65 switchboard is designed to offer a complete, ready-to-use solution for temporary power supply in construction sites, trade shows, events and industrial environments. With 6 CEE industrial outlets and 4 built-in protection devices, it provides maximum safety and convenience of use.
Made of sturdy, self-extinguishing plastic with an IP65 rating, it resists dust, splashing water and mechanical impacts. The included metal stand ensures stable positioning even on uneven terrain.
Complete equipment for every need
The switchboard is equipped with:
-
1 circuit breaker 4P 32A curve C (general)
-
1 residual current circuit breaker 4P 40A 30mA AC
-
1 thermomagnetic circuit breaker 2P 16A curve C (for 230V sockets)
-
1 thermomagnetic circuit breaker 3P 16A curve C (for 400V sockets)
Built-in emergency button enables quick shutdown in case of danger, providing added safety in critical operating environments.
Versatile applications
Suitable for:
-
Temporary construction sites
-
Industrial and craft facilities
-
Public events and trade shows
-
Use outdoors and in harsh environments
Compliant with EN 61439-4, it is perfect for professional uses where reliability and regulatory compliance are required
Fanton Electrical Panel Technical Specifications
| Parameter | Value |
|---|---|
| Model | ULISSE 350 ASC |
| Dimensions (W x H x D) | 350 x 403 x 177 mm |
| IP protection | IP65 |
| Body Material | Self-extinguishing plastic |
| Plug | 3P+N+E 32A 400V 6h IP67 |
| Cable | 4m H07RN-F 5G6 |
| Maximum power | 18 kW |
| Rated current | 32 A |
| Rated voltage | 400 V |
| Circuit breaker | Circuit breaker 4P 32A curve C |
| Differential circuit breaker | 4P 40A 30mA AC type |
| Socket protections | 1x MTD 2P 16A, 1x MTD 3P 16A curve C |
| Sockets | 3x 2P+E 16A 230V |
| Emergency button | Included |
| Metal stand | Included |
| Regulatory compliance | EN 61439-4 |
| Quality Mark | CE |
| Color | Gray |
| Power dissipation | 15 W |
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Voltage: 230/400VAC
- Poles: 2P+E
- Degree of protection: IP65
- Installation: Mobile
- Amps: 32A
3P+E
