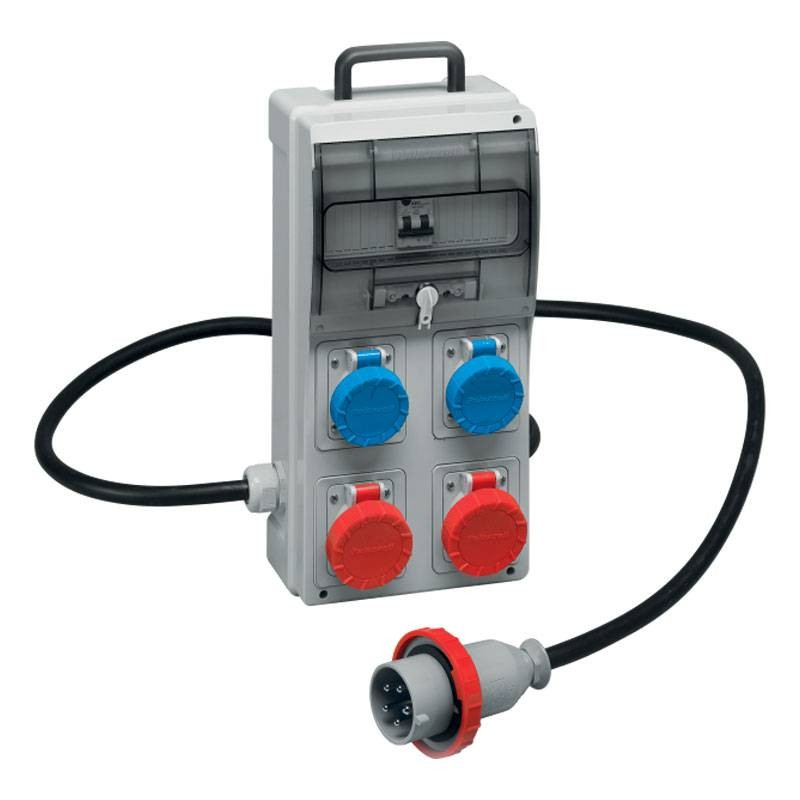

Palazzoli switchboard with 4 outlets 2P+E/3P+E 16A 239x456x160 mm 670042

Palazzoli
Palazzoli
PAL 670042 8014950039937

Switchboard with 4 interlocked fixed outlets, movable plug and Palazzoli ENERGY GO series residual current circuit breaker with the following features:



  • Number of outlets: 4
  • Number of sockets: 2 of 16A 2P+E 230V - 2 of 16A 3P+E 400V
  • Plug Type: 3P+N+T - 16A
  • Switch Type: MCB 3P+E 16A C 30mA
  • Rated Voltage: 230-400V
  • Degree of protection: IP66
  • Portable
  • Dimensions: 239x456x160mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Palazzoli switchboard with 4 outlets 2P+E/3P+E 16A 239x456x160 mm 670042
€323.25
€323.25

€323.25
Tax included
Calculate shipping cost
Items Available: 19
Further availability of the manufacturer
€323.25

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Number of outlets: 4
  • Number Sockets: 2 x 16A 2P+E 230V - 2 x 16A 3P+E 400V
  • Plug Type: 3P+N+T 16A
  • Switch Type: MCB 3P+E 16A C 30mA
  • Rated Voltage: 230-400V
  • Degree of protection: IP66
  • Dimensions 239x456x160mm
  • Frequency: 50/60Hz
  • Ambient storage temperature: -30/+70 degrees
  • Ambient temperature: -25/+50 degrees
  • Material: Technopolymer
  • Portable
  • Without plate
  • Insulation class: II
  • Impact resistance: IK08

There are no reviews

Data sheet

Type:
Switchboards for construction sites
Voltage:
230/240VAC
Poles:
2P+E
3P+E
Degree of protection:
IP66
Installation:
Wall-mounted
Amps:
16A
