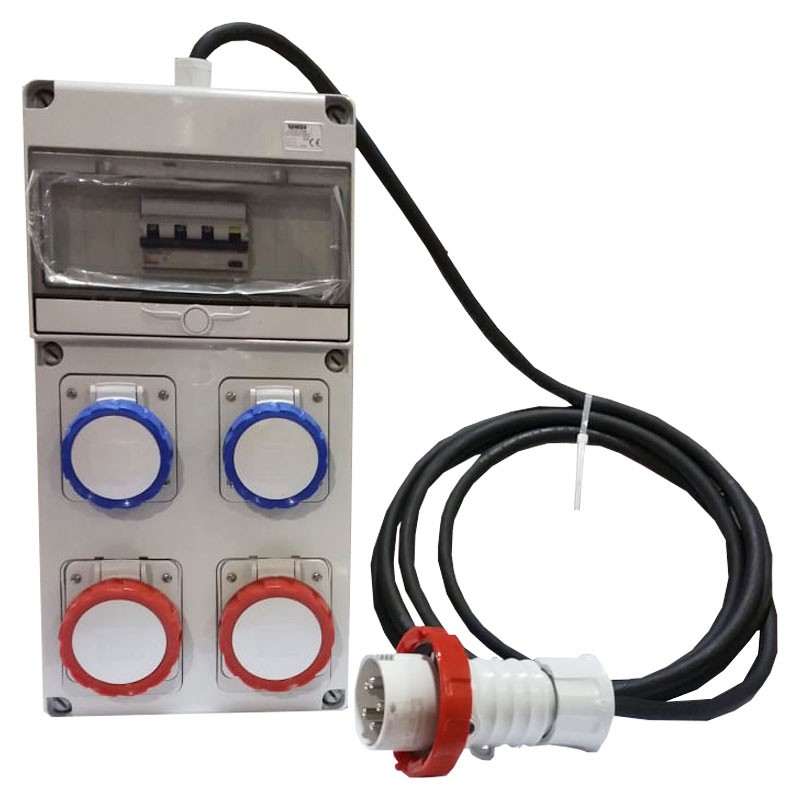

Gewiss switchboard 10 modules with 4 flanges for industrial sockets GW68204N

Gewiss
Gewiss
GEW GW68204N 8011564749689

Gewiss wired control panel, 10 modules with 4 vertical IB flanges for industrial sockets. With cable and plug, portable and mobile article.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss switchboard 10 modules with 4 flanges for industrial sockets GW68204N
€403.38
€403.38

€403.38
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€403.38

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Gewiss Series
  • Typology: Q-DIN 10 ASC
  • External dimensions BxHxP (mm): 220x435x96
  • Weight: 4 Kg
  • Regulatory compliance: EN 61439-4 (ASC)
  • UV resistance (EN 62208)
  • Degree of protection: IP65
  • Impact resistance: IK09
  • Glow wire test: 650 °C
  • Thermopressure with ball 70 °C
  • Insulation class II

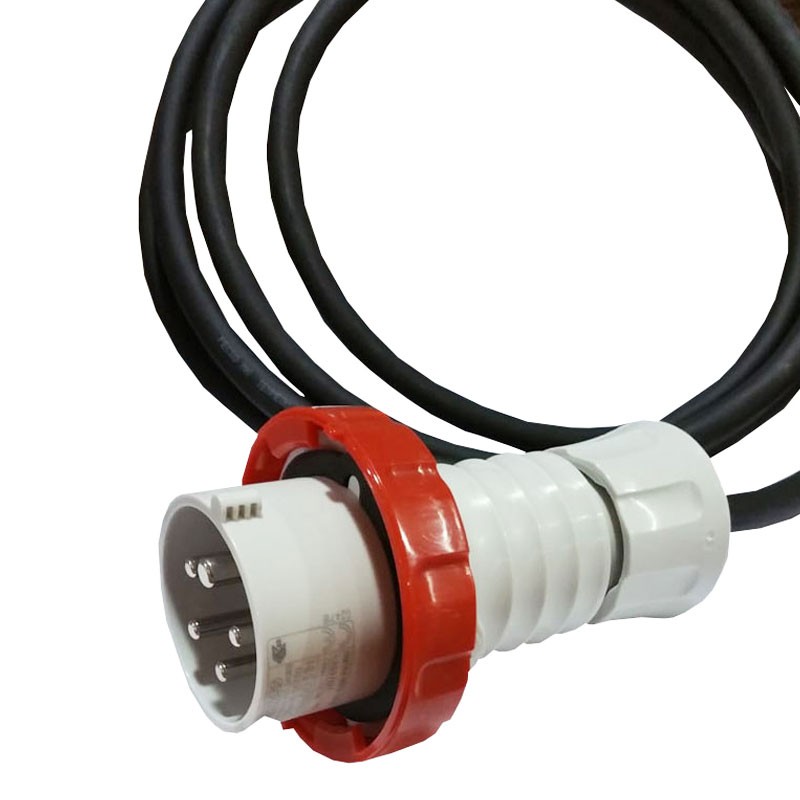

  • Power supply: mobile plug
  • Number of poles: 3P+N+T
  • Power output (kW) 8

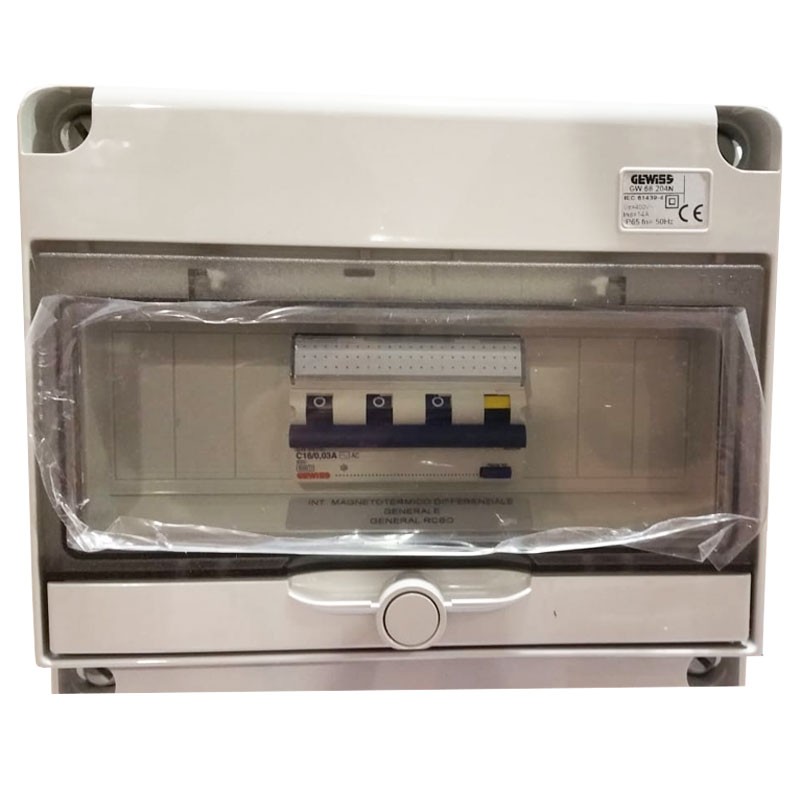

  • Main switch: Differential magnetothermal 16A 4P 6 kA 0,03A - AC type
  • Protection of MDC users
  • Number of sockets 4

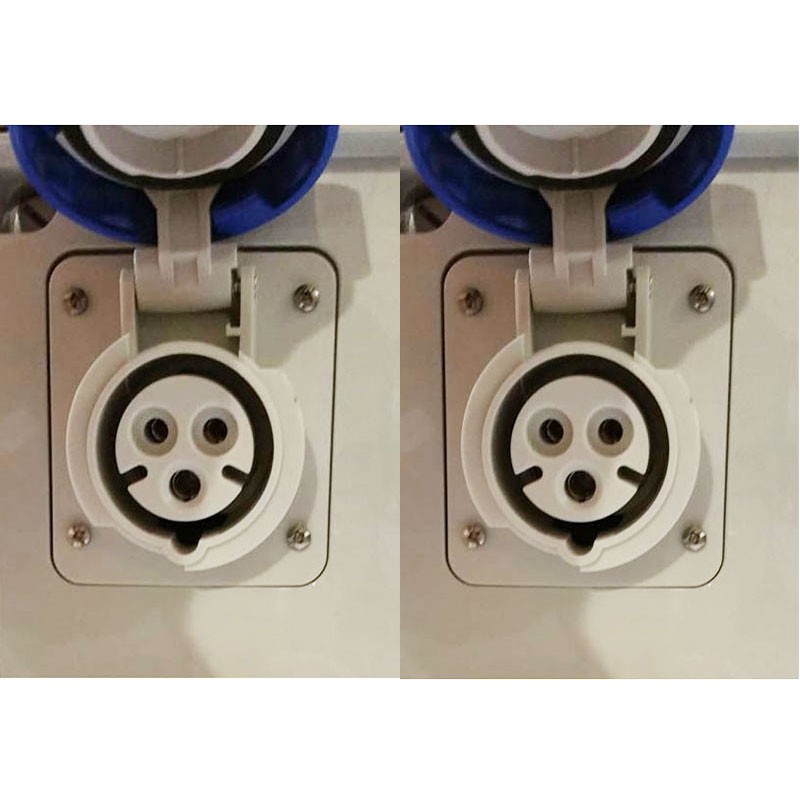

  • 2 sockets 2P+E 16A - IEC 309

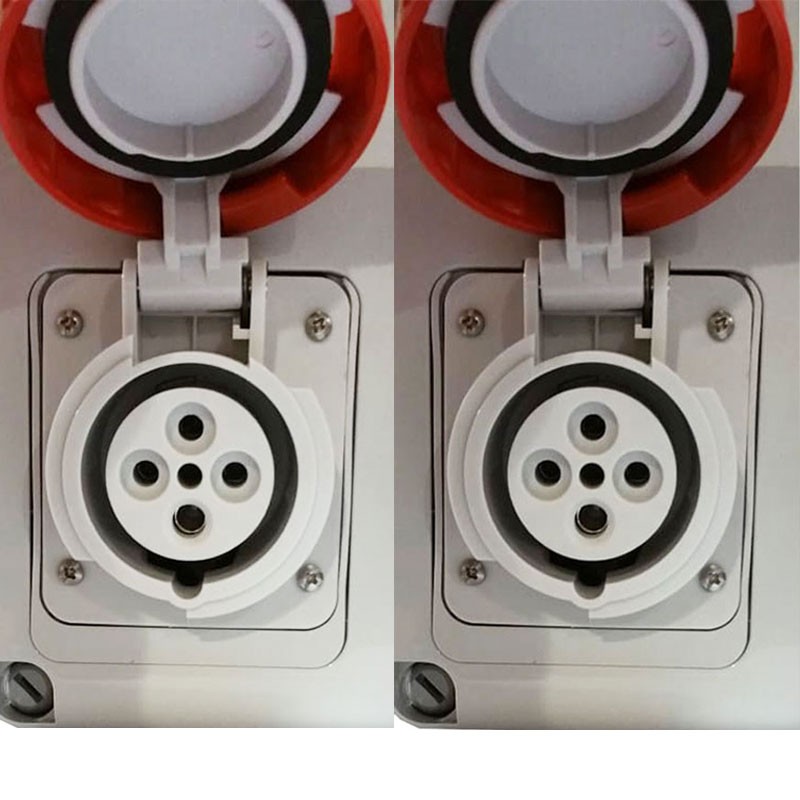

  • 2 sockets 3P+E 16A - IEC 309
  • Cable length: 4 meters
  • Electrocod code: 139
  • Ware number 85371098

There are no reviews

Data sheet

Type:
Switchboards for construction sites
Poles:
3P+N+E
Degree of protection:
IP65
Installation:
Wall-mounted
Amps:
16A
