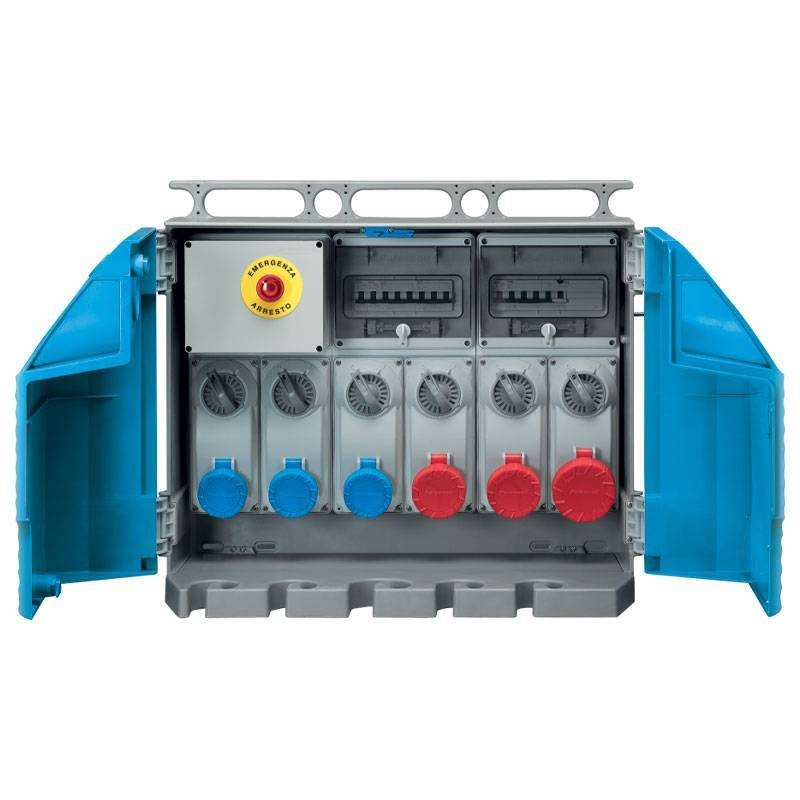

Palazzoli Switchboard with cabinet 6 outlets 30 kW IP65 680x585x340 606104
PAL 606104
8014950039708
Switchboard with cabinet with 6 fixed interlocked outlets and differential circuit breaker with fuses Palazzoli ENERGY GO series with the following characteristics:
- Power: 30 kW
- Number of outlets: 6
- Number Sockets: 3 of 16A 2P+E 230V - 2 of 16A 3P+E 400V - 1 of 32A 3P+N+E 400V
- Switch Type: MCB 4P 63A 30mA
- Rated Voltage: 230-400V
- Degree of protection: IP66
- Portable
- Dimensions: 680x585x340mm
€1,072.23
Items Available: 8
: 2
Features:
- With Fuses
- Portable
- Emergency button
- Input Type: M40
- Power 30 kW
- Number of Sockets: 3 of 16A 2P+E 230V - 2 of 16A 3P+E 400V - 1 of 32A 3P+N+E 400V
- Circuit Breaker Type: MCB 4P - 63A
- Differential protection: 40A 4P 30mA
- Degree of Protection: IP65
- Rated voltage: 230-400V
- Frequency: 50/60Hz
- Shock resistance: IK10
- Ambient storage temperature: -30/+70 degrees
- Ambient temperature: -25/+50 degrees
- Material: Technopolymer
- Insulation class: II
- Dimensions 680x585x340 mm
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Voltage: 230/400VAC
- Poles: 2P+E
- Degree of protection: IP66
- Installation: Wall-mounted
- Amps: 16A
3P+E
3P+N+E
32A
