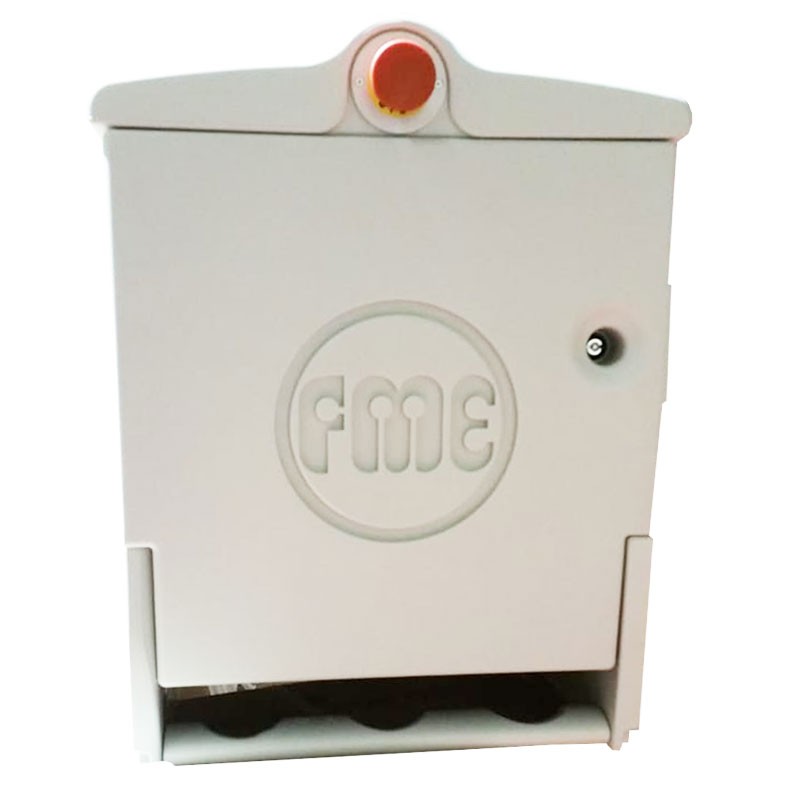

Fanton Polifemo Midi ASC 18KW construction panel with 6 CEE outlets 74694
FME 74694
8015450746943

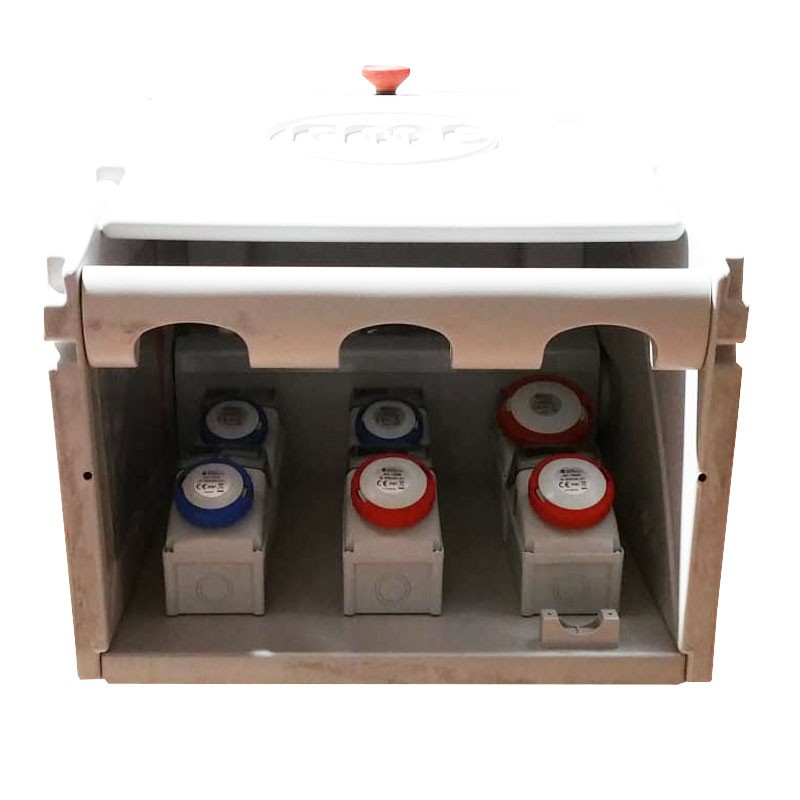

Fanton Polifemo Midi ASC construction switchboard composed of:
- 3 Sockets 2P+E 16A 200-250V 6h IP67 interlocked with fuses
- 2 Socket 3P+E 16A 380-415V 6h IP67 interlocked with fuses
- 1 3P+N+E 32A 380-415V 6h IP67 interlocked socket outlet with fuse
- 1 thermal-magnetic circuit breaker 4P 32A C
- 1 residual current circuit breaker 4P 40A 30mA AC
- 1 terminal block
- Emergency button
- Power Max 18 kW
Fanton Polifemo Midi ASC 18KW construction panel with 6 CEE outlets 74694
€1,268.80
€1,268.80
Tax included
Tax included
Pay in installments with Klarna
Items Available: 4
Features:
To meet a wide variety of shipyard, industrial and normal needs, we offer a range of final distribution boards both to be wired and customized.
- Compliant with CEI EN 61439-1 and CEI EN 61439-4 standards. Meeting these standards, they are defined as type ASC (equipment built in series per construction site).
- The supporting structure is made of thermoplastic material, with high resistance to impact and aging, in light gray (RAL 7035) stabilized to ultraviolet rays
- External dimensions 574x750x430 mm. (WxHxD)
- With IP55 degree of protection, self-extinguishing (glow-wire test 650°C) products are given suitable safety of use to what is stipulated by construction site standards
- Possibility of wall mounting using supplied brackets or floor mounting using the galvanized steel bracket (accessory)
- For transport, the enclosure is equipped with handles, has the possibility of locking even with plugs inserted (open bottom allows the exit of cables)
- Switchboards can be powered by fixed plug (suitable for sudden movements) or terminal block (suitable for supporting high amperages)

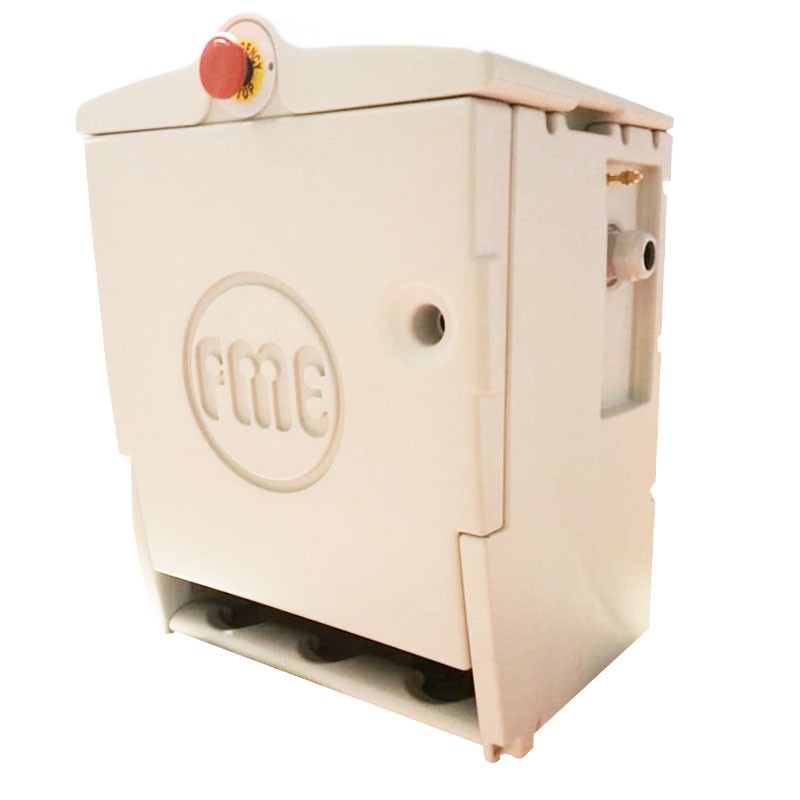

- Switchboards are available with emergency push-button located on the outside for power interruption in case of danger
- Up to 25 modules on the MAXI and 17 on the MIDI can be placed inside in the semi-transparent doors (equipped with locks)
- Possibility of placing up to 8 interlocked outlets on the MAXI and 6 on the MIDI
- All factory-wired switchboards come with a Declaration of Conformity and Electrical Diagram, placed in a special document folder, and with nameplates defining the characteristics of each product
- A kit containing cable clips, terminal block (25mm2), screws, labels, etc. is supplied with each product...
Data sheet
- Type:
- Switchboards for construction sites
- Voltage:
- 220/415VAC
- Poles:
- 2P+T
3P+N+T
3P+T - Degree of protection:
- IP55
- Installation:
- Wall-mounted
- Amps:
- 16A
32A
