Gewiss switchboard 3 modules with 3 flanges for industrial sockets GW68217N
GEW GW68217N
8011564749757

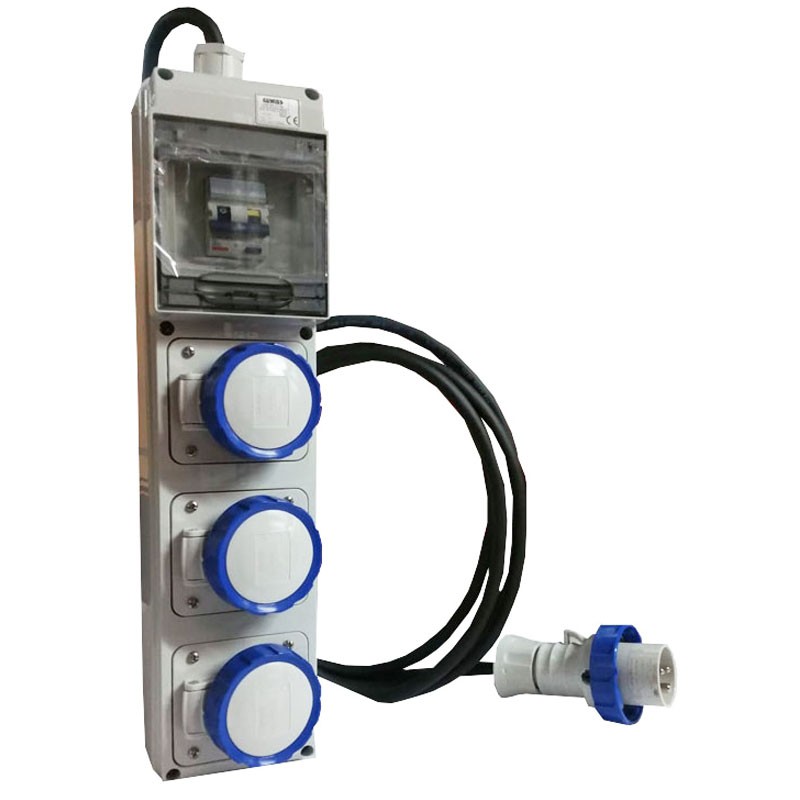

Gewiss wired control panel, 3 modules with 3 flanges. With cable and plug, portable and mobile article.
€252.69
Items Available: 3
Features:
- Gewiss Series
- Typology: Q-DIN 5 ASC
- External dimensions BxHxP (mm): 105x430x96
- Weight: 3 Kg
- Regulatory compliance: EN 61439-4 (ASC)
- UV resistance (EN 62208)
- Degree of protection: IP65
- Impact resistance: IK09
- Glow wire test: 650 °C
- Thermopressure with ball 70 °C
- Insulation class II
- Power supply: mobile plug
- Number of poles: 2P+T
- Power output (kW) 3

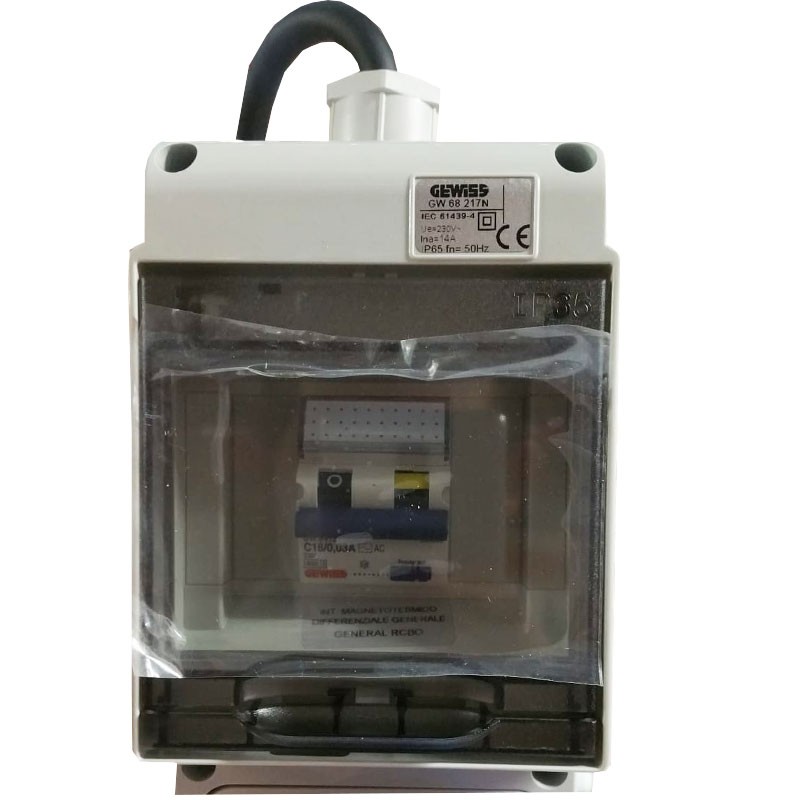

- Main switch: Differential magnetothermal 16A 2P 6 kA 0,03A - AC type
- Protection of MDC users
- Number of sockets 3

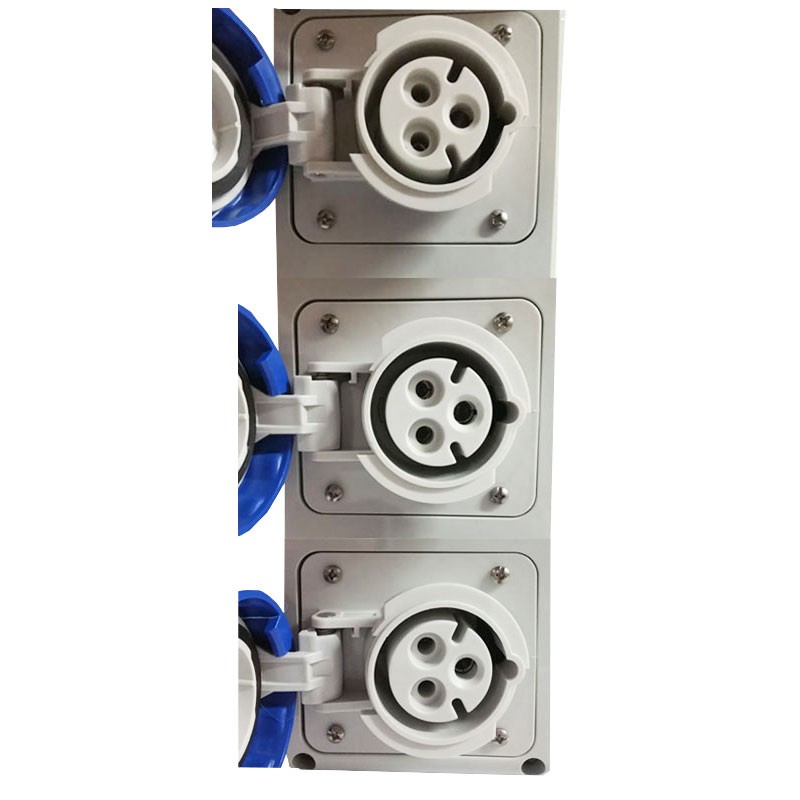

- 3 sockets 2P+E 16A - IEC 309
- Cable length: 4 meters
- Electrocod code: 139
- Ware number 85371098
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Poles: 2P+E
- Degree of protection: IP65
- Installation: Wall-mounted
- Amps: 16A
