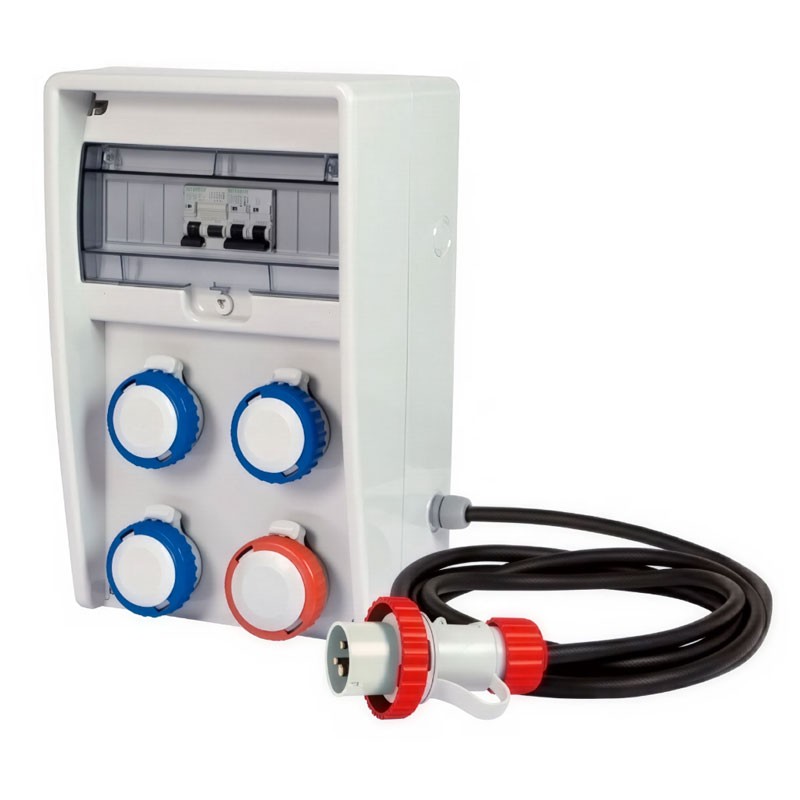

Fanton Ulisse ASC Electrical Panel with plugs sockets and cable IP65 74323

Fanton
Fanton
FME 74323 8015450743232

Fanton Ulisse ASC Electric Switchboard with cable, safe and portable electrical distribution for construction sites and temporary installations, with the following features:

  • Plug: 3P+N+T 16A 380-415V 6h IP67

  • Sockets 3 x 2P+E 16A 230V 6h IP67 - 1 x 3P+E 16A 400V 6h IP67

  • Thermal-magnetic protection: 4P 16A curve C

  • Differential protection: 4P 25A 30mA AC type

  • Maximum power: 9 kW

  • Power supply: 4m H07RN-F 5G2.5mmq cable

  • Degree of protection: IP65

  • Installation: Portable, ready to use

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fanton Ulisse ASC Electrical Panel with plugs sockets and cable IP65 74323
€285.94
€285.94

€285.94
Tax included
Calculate shipping cost
Items Available: 13
Further availability of the manufacturer
€285.94

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

ASC compliant electrical switchboard for mobile applications

The Fanton Ulisse ASC IP65 electrical switchboard is a portable, robust and compliant solution for electrical distribution in construction sites, temporary installations, industrial environments and mobile workshops. Manufactured according to CEI EN 61439-1 and CEI EN 61439-4 standards, it is classified as an ASC (Serial Built Equipment for Construction Site) switchboard, ensuring safety, reliability and versatility of use.

Complete and ready-to-use configuration

The switchboard is equipped with a 4-meter flexible rubber H07RN-F (5G2.5 sq. mm) cable, ideal for intensive use and quick connection to the grid.

Connection equipment:

  • 1 plug 3P+N+E 16A 380-415V 6h IP67

  • 3 sockets 2P+E 16A 200-250V 6h IP67

  • 1 outlet 3P+E 16A 380-415V 6h IP67

All outlets are interlocked to prevent unsafe connections and protect operators and devices from overvoltage and accidental contact.

Built-in electrical protections

The switchboard is already wired and equipped with automatic protections that ensure compliance with safety regulations:

  • 1 magnetothermal circuit breaker 4 poles 16A curve C

  • 1 differential circuit breaker 4 poles 25A 30mA AC type.

These devices protect the system from overloads, short circuits and earth leakage, making the switchboard immediately operational in total safety.

Durable and compact structure

The high-strength thermoplastic housing and IP65 rating make the switchboard suitable for use in dusty, humid or outdoor environments. Small size, allows easy transport, installation and use even in confined spaces or on the move.

Fanton Portable Switchboard Technical Specifications

Parameter Value
Degree of protection IP65
Power supply H07RN-F 5G2.5 mm² cable - length 4 m
Plug 3P+N+E 16A 380-415V 6h IP67
Receptacles 3 x 2P+E 16A 230V 6h IP67
1 x 3P+E 16A 400V 6h IP67
Thermal-magnetic protection 4P 16A curve C
Differential protection 4P 25A 30mA AC type
Maximum power 9 kW
Dimensions (W x H x D) 250 x 403 x 177 mm
Structure Shockproof thermoplastic
Installation Portable, ready to use
Standards CEI EN 61439-1 / 61439-4

There are no reviews

Data sheet

Type:
Switchboards for construction sites
Voltage:
220/415VAC
Poles:
2P+E
3P+E
3P+N+E
Degree of protection:
IP55
Installation:
Wall-mounted
Amps:
16A
