Fanton Ulisse electrical panel 6 outlets 4 cable protectors IP65 74397
FME 74397
8015450743973

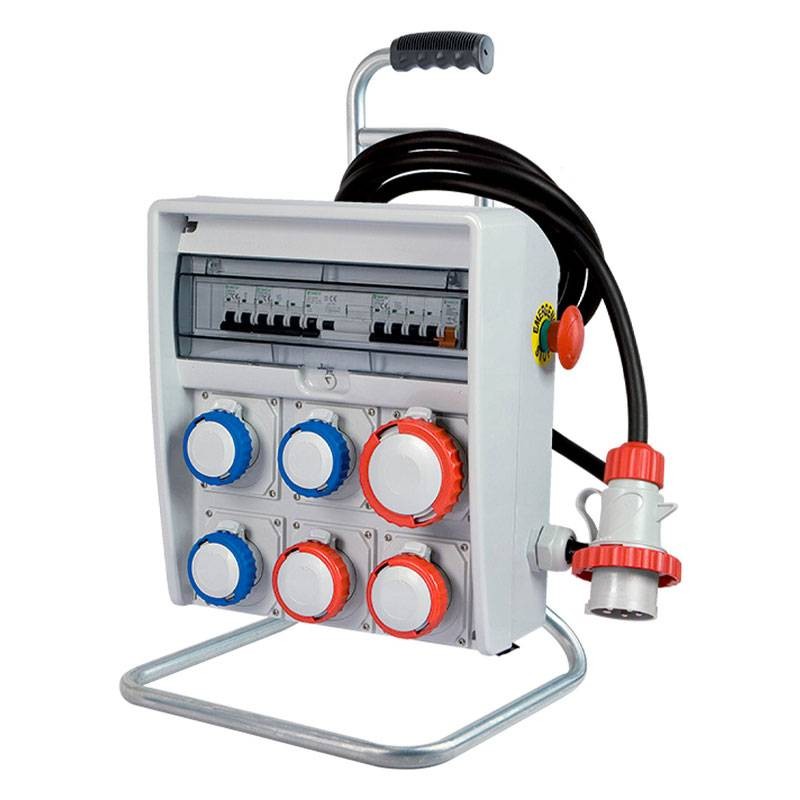

Fanton Ulisse 350 ASC switchboard complete with 6 CEE sockets, 4 protections, emergency button, metal support and 4 m cable with 32A 3P+N+T plug, with the following features:
-
6 IP67 CEE sockets: 3 x 2P+E 16A 230V - 2 x 3P+E 16A 400V - 1 x 3P+N+E 32A 400V
-
4 built-in protections: Circuit breaker 4P 32A C - Differential circuit breaker 4P 40A 30mA AC - Circuit breaker 2P 16A C - Circuit breaker 3P 16A C
-
Cable: H07RN-F 5G6 4 meters with 32A plug IP67
-
Degree of protection: IP65
-
Maximum power: 18 kW
-
Rated voltage: 400 V
-
Rated current: 32A
€572.56
Out of stock
Incoming
Fanton electrical switchboard maximum safety and versatility
The Ulisse 350 ASC IP65 electrical switchboard is designed to ensure safe and reliable power distribution in industrial environments, construction sites, events and trade shows. Thanks to its differential and thermal-magnetic protections, it ensures high safety in any operating context.
The built-in emergency button allows immediate shutdown in case of danger, and the IP65 degree of protection makes it suitable for outdoor installations and harsh environmental conditions.
Fully equipped and ready to use
Supplied already wired and ready for use, the switchboard is equipped with:
-
6 CEE IP67 industrial sockets
-
4 m 5G6 rubber cable
-
3P+N+E 32A 400V IP67 industrial plug
-
Metal bracket for grounding
-
Protection switches already installed
-
Sturdy plastic casing with great maneuverability
Applications
-
Construction and industrial sites
-
Public events and trade fairs
-
Craft or workshop environments
-
Outdoor areas subject to dust or moisture
-
Temporary or permanent use
Technical Specifications Fanton Electrical Panel
| Parameter | Value |
|---|---|
| Model | ULISSE 350 ASC |

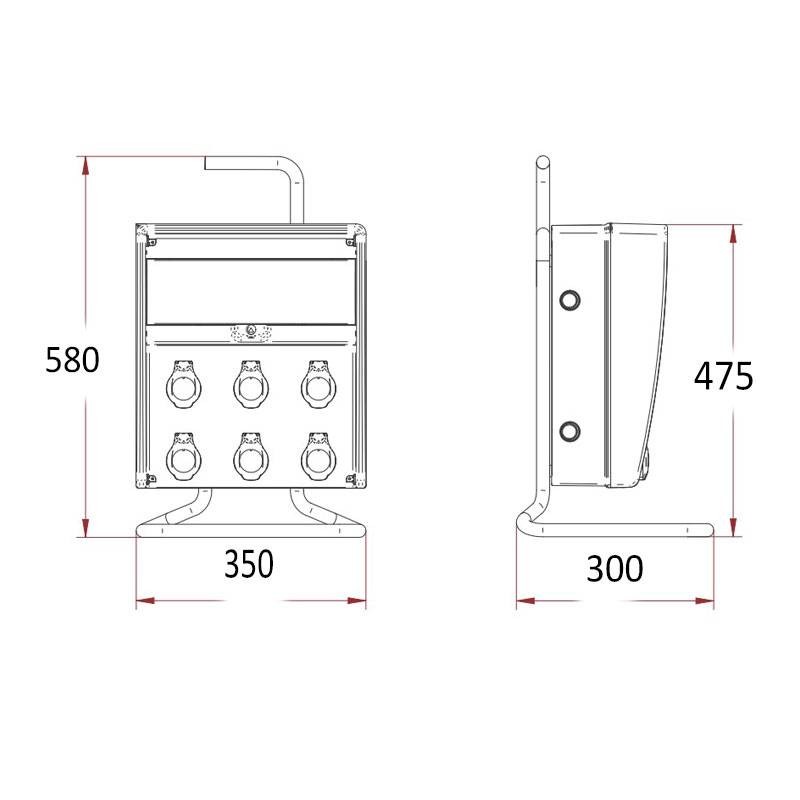

| Dimensions (W x H x D) | 350 x 403 x 177 mm |
| IP protection | IP65 |
| Material | Self-extinguishing plastic |
| Color | Gray |
| Plug | 3P+N+E 32A 400V 6h IP67 |
| Cable | H07RN-F 5G6 - Length 4 m |
| Maximum power | 18 kW |
| Rated voltage | 400 V |
| Rated current | 32 A |
| Emergency button | Yes |
| Regulatory compliance | EN 61439-4 |
| Receptacles | 3 x 2P+E 16A - 230V IP67 2 x 3P+E 16A - 400V IP67 1 x 3P+N+E 32A - 400V IP67 |
| Protections | 1x MTD 4P 32A C (general) 1x Differential 4P 40A 30mA AC 1x MTD 2P 16A C 1x MTD 3P 16A C |
| Power dissipation | 15 W |
| Insulation class | Class II |
| Connection technology | Screwless terminals |
| Mounting | Vertical, on included stand |
| Standard compliance | CEI, CE, IEC 60309 |
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Voltage: 230/400VAC
- Poles: 2P+E
- Degree of protection: IP65
- Installation: Mobile
- Amps: 32A
3P+E
3P+N+E
