Fanton Ulisse electrical panel 6 outlets 4 protectors with brackets 74398
FME 74398
8015450743980

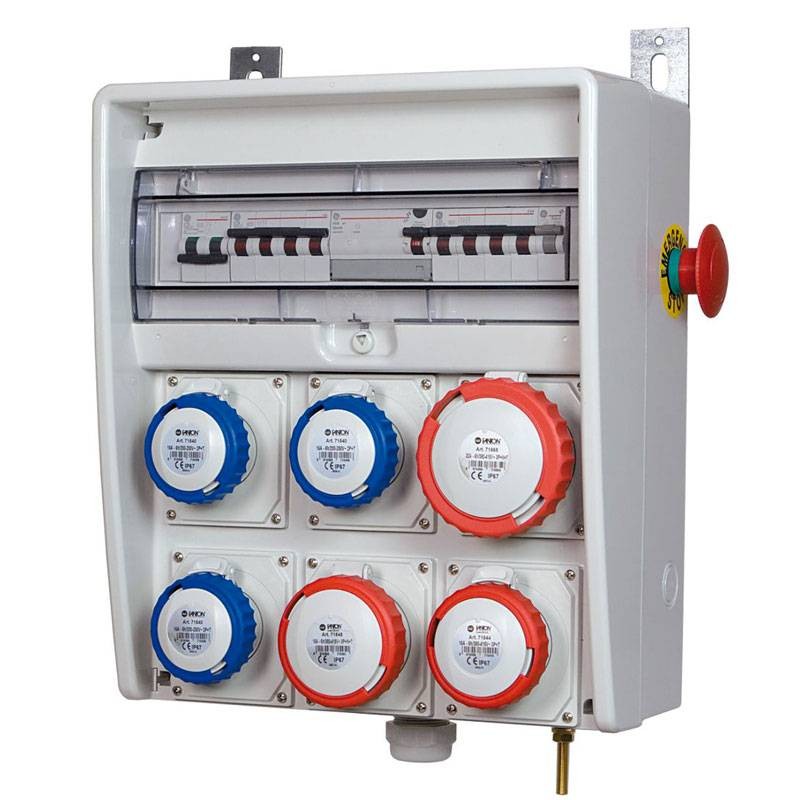

Fanton Ulisse 350 ASC switchboard with 6 industrial outlets, thermal-magnetic and differential protections, power supply via terminal block and wall mounting with brackets included. Ideal for industrial environments, construction sites and outdoor installations, with the following features:
-
6 CEE IP67 sockets: 3 x 2P+E 16A 230V - 1 x 3P+E 16A 400V - 1 x 3P+N+E 16A 400V - 1 x 3P+N+E 32A 400V
-
Total system protection: 1 x 4P 32A C-curve circuit breaker (general) - 1 x 4P 40A 30mA AC residual current circuit breaker - 1 x 2P 16A C-curve circuit breaker
-
Maximum power: 18 kW
-
Rated voltage: 400V
-
Rated current: 32 A
-
Degree of protection: IP65, resistant to dust and water jets
€578.10
Out of stock
Incoming
Fanton switchboard safety and functionality in harsh environments
The Ulysses 350 ASC IP65 Switchboard is designed for safe power distribution in industrial, construction or temporary environments. The power terminal block allows versatile and direct wiring, while the emergency stop button provides immediate safety.
Residual current and thermal-magnetic circuit protectors ensure that connected devices are safeguarded, reducing the risk of overloads, short circuits and leakage.
Robust and ready-to-use design
Equipped with a high-strength plastic enclosure, the switchboard is suitable for continuous use even in harsh environmental conditions. Wall brackets enable quick and secure attachment, while IP67 CEE sockets ensure connection with tools and machinery with total reliability.
Why choose it
-
Easy to install on wall thanks to the brackets provided
-
Complete configuration with internal terminal block and guards already mounted
-
Maximum protection with IP65 and built-in safety devices
-
Suitable for continuous use even in exposed environments
Fields of application
-
Construction sites and construction facilities
-
Industrial environments and workshops
-
Public events and trade fairs
-
Outdoor areas or areas subject to moisture
-
Temporary or permanent electrical distribution
Technical Specifications Fanton Electrical Switchboard
| Parameter | Value |
|---|---|
| Model | ULISSE 350 ASC IP65 |
| Dimensions (W x H x D) | 350 x 403 x 177 mm |
| Material | High-strength plastic |
| IP Protection | IP65 |
| Rated voltage | 400 V |
| Rated current | 32 A |
| Maximum power | 18 kW |
| Sockets | 3 x 2P+E 16A 230V IP67 1 x 3P+E 16A 400V IP67 1 x 3P+N+E 16A 400V IP67 1 x 3P+N+E 32A 400V IP67 |
| Protections | 1 x MTD 4P 32A curve C (general) 1 x Differential 4P 40A 30mA AC 1 x MTD 2P 16A curve C 1 x MTD 4P 16A curve C |
| Power supply | Via terminal block |
| Accessories included | Emergency button, mounting brackets, ground pin |
| Certifications | CE, complies with EN 61439-4 |
There are no reviews
Data sheet
- Type: Switchboards for construction sites
- Voltage: 230/400VAC
- Poles: 2P+E
- Degree of protection: IP65
- Installation: Wall-mounted
- Amps: 32A
3P+E
3P+N+E
