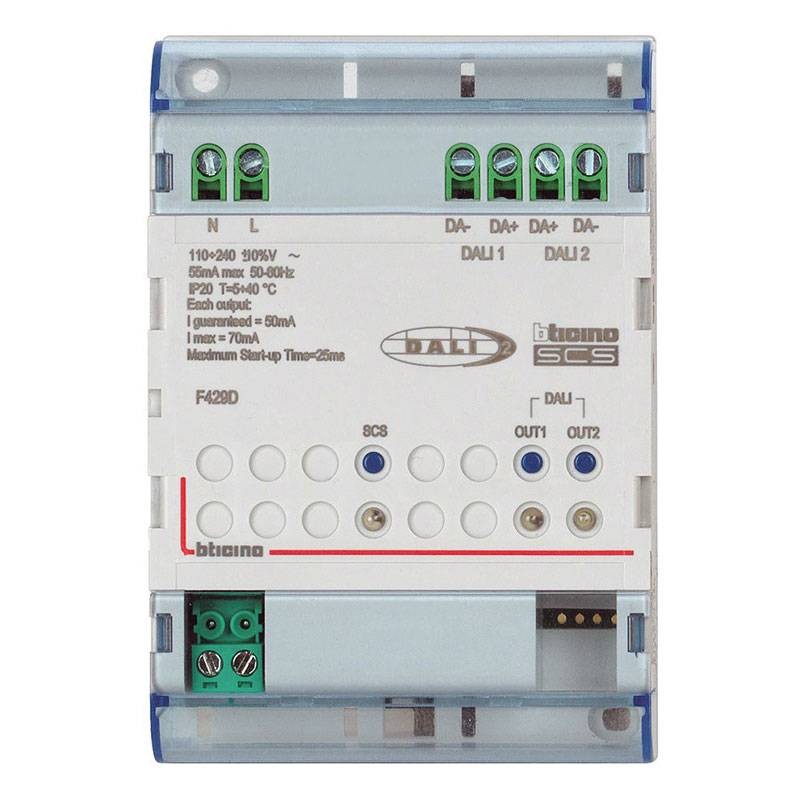

Bticino Dali and Dali 2 Dimmer for MyHome 2 Outputs F429D
BTI F429D
8005540000000
The Bticino F429D Dimmer is an advanced interface for lighting control via DALI or DALI-2 protocol, designed to integrate seamlessly into MyHome home automation systems. It has 2 independent outputs, each capable of managing up to 16 DALI ballasts (for a total of 32), and supports advanced controls such as ON/OFF, dimming, RGB and RGBW (dynamic white).
-
2 independent outputs for DALI and DALI-2 control
-
Supports up to 32 total ballasts (2 groups of 16)
-
Supported functions: On/Off, dimming, RGB, RGBW
-
Configuration via Home + Project app
-
Power supply: 27V DC
-
DIN format: 4 modules
-
Compatible with MyHome F460, F461 and Class 300EOS servers
-
Backward compatibility and upgrade from MHS1 via backup & restore function
€149.09
Items Available: 14
Frequently bought together
Bticino F429D DALI / DALI-2 Dimmer: Advanced Lighting Control.
The F429D device is the ideal interface for integrating advanced digital lighting management (DALI and DALI-2) within MyHome systems. Each output can control up to 16 DALI luminaires, enabling fine tuning of light, scene management, color variation (RGB) and dynamic white (RGBW).
The device is an interface between MyHOME/Lighting Management systems and DALI?2 (Digital Addressable Lighting Interface) piloted devices.
Professional and flexible configuration
Configuration of the dimmer is via the Home + Project app, the digital tool for professional installers. Compatibility with the MyHome system allows easy integration into new or existing installations, with the possibility of upgrading from older server versions (MHS1) without having to reconfigure the entire system.
Perfect for small and medium-sized DALI installations.
The F429D is designed for installations with a limited number of DALI light points. Its compact design (4 DIN modules) and independent management of 2 channels make it the optimal choice for homes, showrooms, offices, or commercial environments where precise, integrated lighting control is required.
Technical Specifications DALI BUS SCS Module
General Data
| Parameter | Value |
|---|---|
| Operating temperature | 5 - 40 °C |
| Input | BUS SCS |
SCS BUS power supply
| Parameter | Value |
|---|---|
| Voltage | 18 - 27 Vdc |
| Power consumption | 6 mA |
Input 230 Vac
| Parameter | Value |
|---|---|
| Voltage | 110 to 240 Vac |
| Operating frequency | 50/60 Hz |
| Power consumption | 55 mA max |
DALI outputs
| Parameter | Value |
|---|---|
| Rated voltage | 16 Vdc |
| Nominal power | 1,1 W |
| Max. current per output | 70 mA |
| Guaranteed current per output | 50 mA |
| Maximum startup time | 25 ms |
| DALI devices that can be controlled | 16 per output, total 32 |
| Maximum cable length | 300 m |
| Cable cross-section | 1.5 mm² |
| Compatible DALI loads | All |
| DALI-2 compatible loads | DT0, DT6, DT8 (up to RGBW on single channel) |
There are no reviews
Data sheet
- Type: Dimmer
