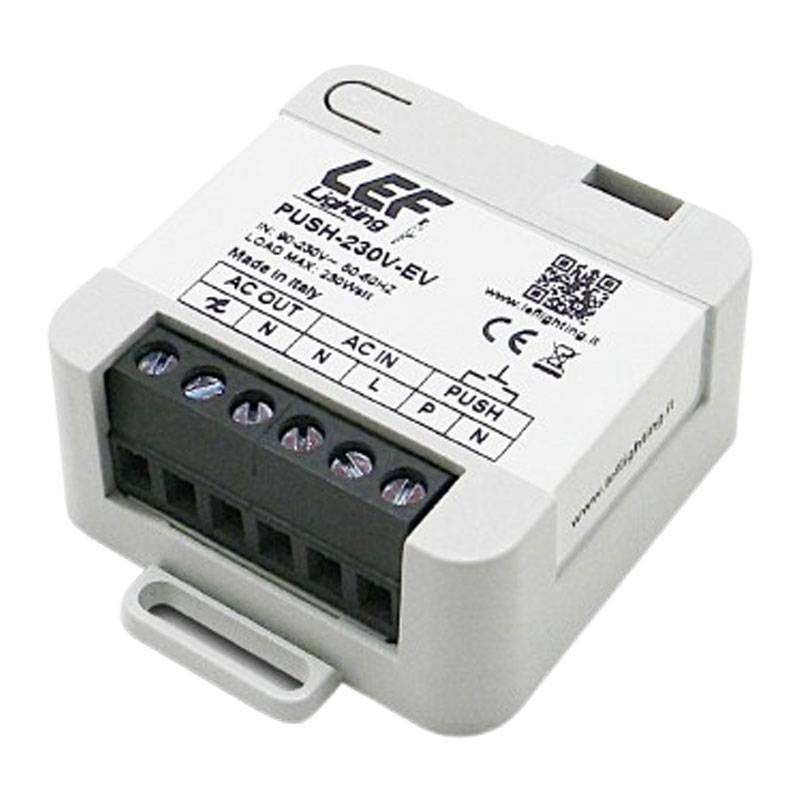

LEF Dimmer for Led Strip TE-EV 230W 110/240 Vac PUSH-230V-EV

Lef
Lef
LEF PUSH-230V-EV 8057760695511

Led strip dimmer, single-channel dimmer with phase-cut output for LED strips and 230V dimmable lamps. PUSH control, level and status memory, customizable adjustments, with the following features:

  • Input voltage: 110/240 Vac

  • Phase cut dimmer: EV or TE

  • Control: Via push button (PUSH 230V)

  • Max manageable power: 230W

  • Level memory: Always on

  • Status memory: Adjustable

  • Protections: OCP, OLP, OTP, OVP

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
LEF Dimmer for Led Strip TE-EV 230W 110/240 Vac PUSH-230V-EV
€36.98
€36.98

€36.98
Tax included
Calculate shipping cost
Items Available: 14
Further availability of the manufacturer
€36.98

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

230V phase cut dimmer for LED precise and intuitive control

The TE-EV 230V dimmer is an advanced electronic dimmer designed for dimming LED strips, LED modules, dimmable lamps, and resistive loads. It is fully compatible with 230V systems and is easily controlled via mains voltage PUSH button.

Phase-cut dimming for wide range of loads

The device supports rising phase (TE) and falling phase (EV Evolution Edge) dimming, adapting to different types of electronic ballasts and lamps. In particular, it smoothly handles:

  • Dimmable LED strips and modules up to 230W

  • LED, halogen or incandescent lamps up to 115W

  • Dimmable power supplies with DC/CV output for LEDs up to 115W

Advanced and customizable functions

Equipped with non-excludable light level memory and settable status memory, it allows intuitive use in any environment. Calibration is via external push-button, allowing you to define:

  • Minimum brightness level

  • Gradual on/off time (Fade ON/OFF)

  • Logarithmic or linear dimming curve

Maximum protection and electrical compatibility

The dimmer includes open circuit protection (OCP), overload (OLP), overvoltage (OVP) and overheating (OTP), for safe and durable use. The standardized plastic housing with electrical class II and IP20 grade makes it suitable for protected indoor installations.

Dimmer Strip Led Technical Specifications

Technical Data

Feature Value
Input Voltage 110-240 Vac
Frequency 50/60 Hz
Command Push button (PUSH 230 Vac)
Output Phase cut-off (TE/EV)
Manageable power - dimmable LED strips 230 W
Manageable power - Dimmable LED modules 230 W
Manageable power - Dimmable LED lamps 115 W
Manageable power - Incandescent/halogen 230V 230 W
Power manageable - DC/CV dimmable ballasts 115 W
Functions Level memory (non-deactivatable)
Status memory (settable)
Fade and minimum brightness calibration
Logarithmic/linear curve
Protections OCP, OTP, OVP, OLP
Operating temperature -20 ÷ +50 °C
Wire system 4 / 5 / 6
Container Plastic
Electrical Class II
Degree of protection IP20


Applications

Areas of use Description
Main uses LED strips, LED modules, lamps and 230V dimmable power supplies

There are no reviews

Data sheet

Type:
Dimmer
Voltage:
110/240V
Degree of protection:
IP20
Installation:
Recessed
