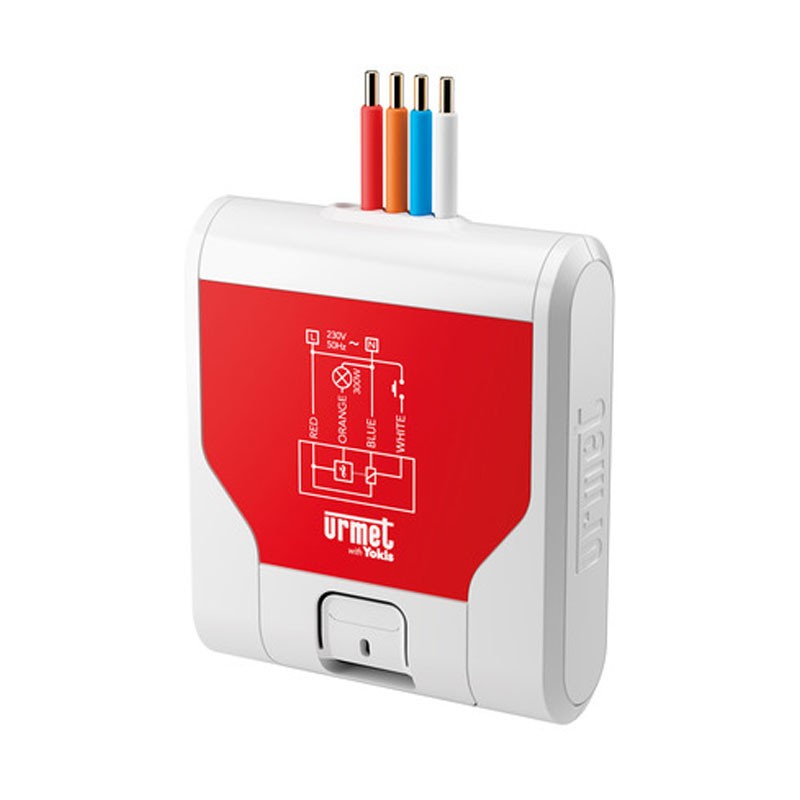

Urmet MTV300E-UP 300W connected dimmer module 4820408
UTD 4820408
8021156076949
Urmet MTV300E-UP electronic timed connected dimmer module, Radio UP system, built-in with neutral, allows management of brightness variation from 3% to 100% on loads up to 300W, with principle of variation by interruption at the beginning or end of the phase, with automatic recognition of the type of load: it is compatible with various loads, including, incandescent lamps, 230V LEDs and dimmable halogen lamps.
€56.91
Items Available: 7
: 2
Frequently bought together
Advantages:
- The MTV300E-UP dimmer module can be centralized via Zigbee radio.
- Supports management of multiple variation levels, which can be recalled with short presses: 1 press for 100% illumination, 2 presses to recall the last brightness level, 3 presses for 50% illumination, 4 presses to recall the minimum brightness level (preset)
- The module can be timed, from 2 seconds to 4 hours, with advance notice of shutdown and an extended duration, extending the timing up to 12 hours
- It also provides a child's courtesy night light function that allows for a 20% intensity light that will decrease in one hour to leave only a courtesy light (in 12 hours)
- It also allows light signals to be activated for corridors or other rooms for nighttime travel
- The module can be programmed to operate as a simple step relay or for deaf and hard of hearing application, taking advantage of the light for visual signaling
- With Soft Start/Soft Stop Function, it limits the inrush current when turning on the light caircle, thus increasing the life of the lamp and buttons
- The module provides 2 types of built-in electronic protections: in case of short-circuit on the load (with automatic reset after fault clearing) and against overheating. it is also immune to mains noise up to 1.5 kV
- If the system includes GATE-UP, the module can also be managed via the YnO UP App, both locally and remotely, and can be managed in automatic mode through scenario definition
- Programming the module is very simple: either through a directly connected button or via the U2PRO Installer App.
Features:
- Line voltage: 230 V~ (± 15%) - 50 Hz
- Power on load: 1.3A - 300W (resistive); 0.6A - 125VA (other loads)
- Stand-by consumption: < 0.8VA - < 0.4W
- Ambient temperature: -20°C + 40°C
- Relative humidity: 0 to 90%
- Degree of protection IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 40 x 45.7 x 13.1 mm.
There are no reviews
Data sheet
- Type: Dimmer
