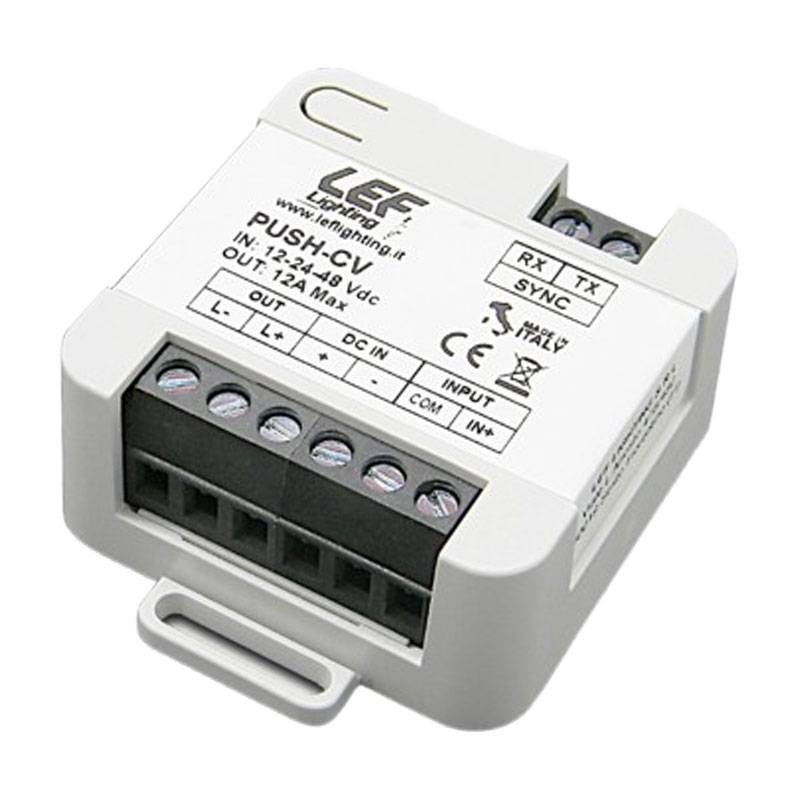

LEF Led dimmer interface 12A 576W 12-24-48Vdc IP20 PUSH-CV
LEF PUSH-CV
8057760696082
LEF LED dimmer interface, for dimming LED modules with constant voltage. Compatible with 12V, 24V and 48Vdc power supply, supports PUSH, 0-10V, 1-10V and potentiometer commands, with the following features:
-
Input/output voltage: 12-24-48 Vdc
-
Output current: 12 A
-
Max power: 144W-12V, 288W-24V, 576W-48V
-
Adjustment: PUSH / 0-10V / 1-10V / 100K potentiometer?
-
Function: Level/status memory
-
Frequency: PWM adjustable
-
Protections: OCP, OTP, OVP, RPP
€35.23
Items Available: 6
: 1
LEF LED dimmer interface flexibility and precision for every project
The LEF interface is a state-of-the-art LED dimmer designed for those seeking maximum versatility in lighting control. With compatibility with constant voltages of 12, 24 and 48 Vdc, and maximum power up to 576W, it is the ideal accessory for every type of project: from home lighting to light management in professional environments, showrooms and architectural installations.
Designed to deliver high performance with a compact and safe design, this dimmer allows you to precisely modulate light intensity, improving visual comfort, energy efficiency, and environmental quality.
Versatile dimming modes
LEF PUSH-CV supports several control modes:
-
PUSH via push button
-
0-10V / 1-10V with active signal
-
100K potentiometer
This makes it possible to choose the most suitable control technology for the system while maintaining maximum compatibility with drivers, controllers and home automation systems.
High performance for every power level
Thanks to the 12 A output current, the dimmer can deliver:
-
144W at 12V
-
288W at 24V
-
576W at 48V
These values make it perfect even for large LED installations or those with high brightness requirements.
Advanced features and built-in safety
Advanced features include:
-
Status memory (retains the last setting when turned back on)
-
Brightness level memory
-
Customizable fade ON and fade OFF
-
Selectable PWM frequency (390 Hz or 3000 Hz) to eliminate flickering
In addition, LEF PUSH-CV features protection against open circuit, overvoltage, overtemperature and reverse polarity, ensuring maximum safety and reliability even under critical conditions.
Technical Specifications LEF Led Dimmer
Technical Data
| Feature | Value |
|---|---|
| Input/output voltage | 12/24/48 Vdc |
| Maximum output current | 12 A |
| Maximum output power | 144 W at 12V 288 W at 24V 576 W at 48V |
| Modes of regulation | Push button (PUSH no voltage) 0-10V / 1-10V signal 100KΩ potentiometer |
| Functions | Status and level memory Fade ON/OFF adjustment Multiple synchronization |
| PWM frequency | Selectable: 390 Hz / 3000 Hz |
| Protections | OCP, OTP, OVP, RPP |
| Ambient Temperature | -20 ÷ +50 °C |
| Degree of protection | IP20 |
Applications
| Areas of use | Description |
|---|---|
| Main uses | Brightness control for LED 12-48 Vdc, professional installations, home automation, architectural lighting |
There are no reviews
Data sheet
- Type: Dimmer
- Voltage: 12-24-48V
- Degree of protection: IP20
- Installation: Recessed
