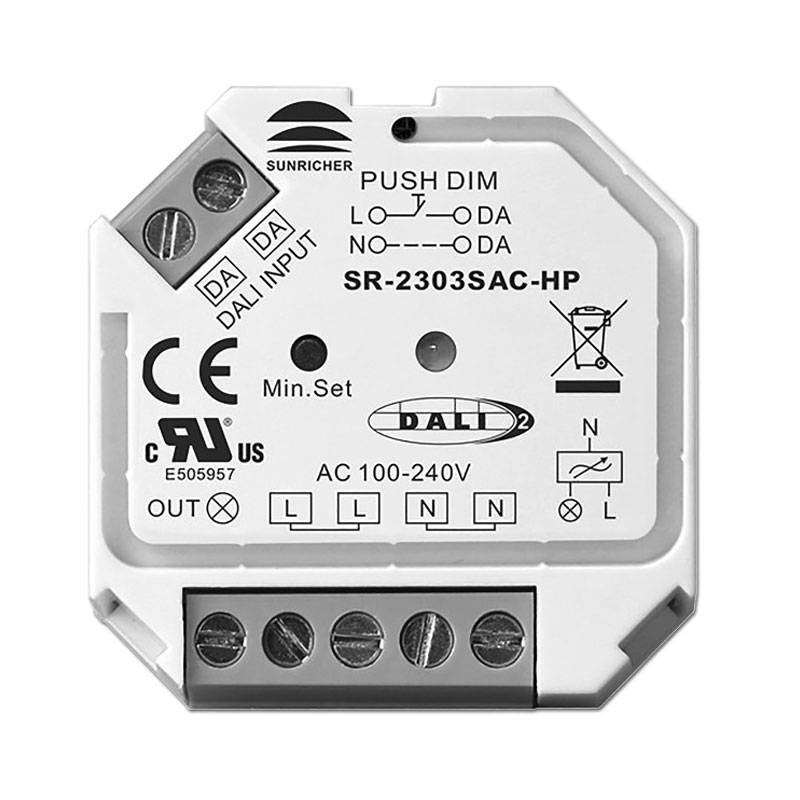

Dimmer with push-button control and DALI TCI 200W 100-230V 181213
TCI 181213
Dimmer with push-button control and DALI TCI for luminaires with phase cut adjustment:
- 200W power
- Power supply 100-230V - 50Hz
- IGBT load
€68.63
Items Available: 2
: 1
Features:
- DALI/PUSH SWITCH control interface for phase-cut luminaires (trailing edge).
- The interface can be addressed by the DALI master, only one address available
- Connect a maximum of 10 luminaires on the secondary to ensure operation
- Maximum cable length between interface and connected luminaires 80 meters
- Maximum cable length between pulsate/master and interface 80 meters
- DALI port consumption 2mA max
- Equipped with status LED
- Application in junction box
- Dimensions 45 x 20 x 45 mm
- Weight 41 grams
There are no reviews
Data sheet
- Type: Dimmer
- Voltage: 230V
- Installation: Recessed
