Dimmer for LED Strip Tecnel Dali RGBW 12-36Vdc 20A 3 Modules TEDALIRGBW
TTE TEDALIRGBW

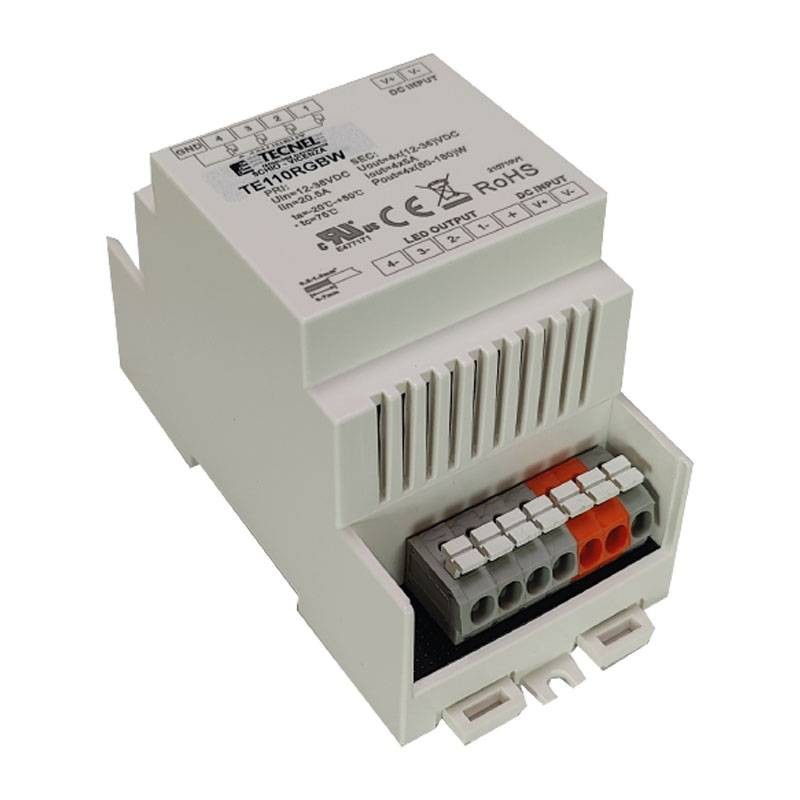

Dimmer for Tecnel Dali RGBW LED Strip with the following features:
- Voltage: 12-36Vdc
- Output Current: 20 Amps
- Power: RGBW LED Strip 240W/12Vdc - 480W/24Vdc - 720W/36Vdc
- Technology: PWM dimmer
- Control signal: DALI signal
- Degree of protection: IP20
- 3 Modules
€126.46
Items Available: 1
Dimmer for Strip LED RGBW 3 modules DIN Rail with manual or domotic DALI protocol signal input by which you can control the brightness of the 4 RGBW colors of the LED STRIP. In this way it is possible to obtain from the STRIP LED RGBW an infinite amount of fixed RGB colors or moreover modulated also by the presence of white W and by home automation program with DALI protocol signal to obtain any scenography and lighting effect.
It is also possible to adjust the independent brightness of 4 single-color LED STRIPs, the CCT of two Dynamic White LED STRIPs and the three colors of one RGB or RGBW LED STRIP as per the connection diagrams shown above. DALI protocol compliant with IEC 62386-102, IEC 62386-207.
There are no reviews
Data sheet
- Type: Dimmer
- Voltage: 12/36V
- Degree of protection: IP20
- Installation: Din
