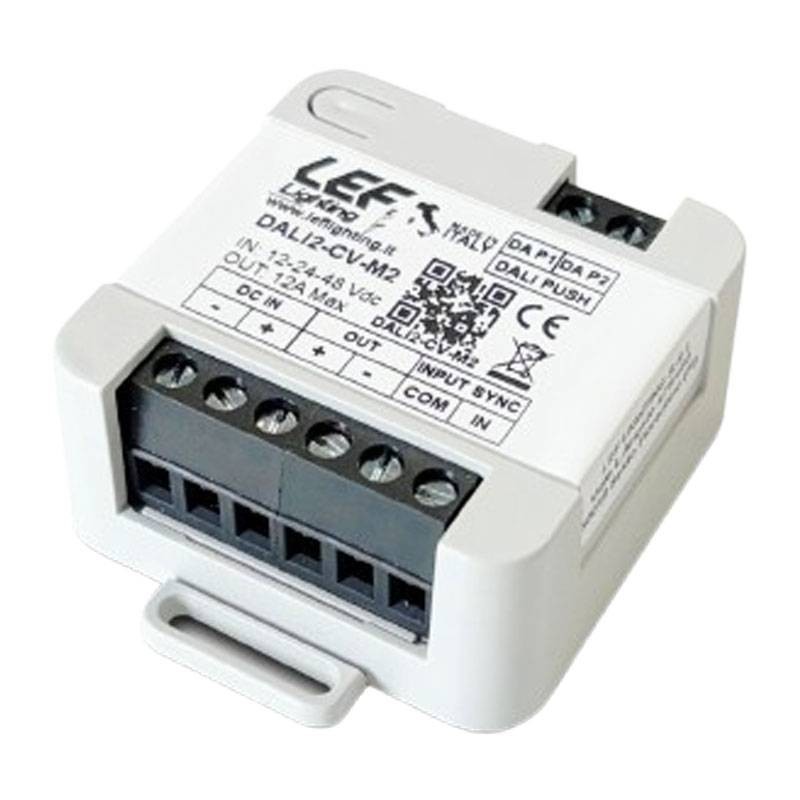

LEF Led Dimmer Interface PUSH 12A 576W 12-48Vdc IP20 DALI2-CV-M2

Lef
Lef
LEF DALI2-CV-M2 8057760695917

Compact LEF LED dimmer interface for constant voltage, with DALI dimmer control, PUSH, 0/1-10V, phase cut and potentiometer, multifunction, with the following features:

  • Input/output voltage: 12-24-48 Vdc

  • Output current: 12 A

  • Max power: 144W-12V, 288W-24V, 576W-48V

  • Control via: DALI, PUSH (230V/12-24Vdc), 0-10V, 1-10V, potentiometer, switch, sensor

  • Dimmer: Phase cut LE/TE

  • Memory: Level and status

  • Function: Night light and maximum light

  • Frequency: PWM selectable: 390Hz / 3000Hz

  • Protections: OCP, OVP, SCP, RPP

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
LEF Led Dimmer Interface PUSH 12A 576W 12-48Vdc IP20 DALI2-CV-M2
€45.90
€45.90

€45.90
Tax included
Calculate shipping cost
Items Available: 10
Further availability of the manufacturer
€45.90

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

LEF dimming interface flexible and professional control

Constant voltage 12/24/48Vdc LED dimming interface, compatible with a wide range of control systems: DALI, PUSH, 0-10V, 1-10V, sensors and potentiometers. Perfect for professional installations in architectural, commercial and residential environments.

With support for Leading Edge (LE) and Trailing Edge (TE) phase cutting, it can also be used in existing installations with analog dimmers, without replacing existing equipment.

High power and precise control

With an output current of up to 12 A, the DALI2-CV-M2 is capable of delivering:

  • 144W at 12V

  • 288W at 24V

  • 576W at 48V

The built-in PWM controller allows selection of operating frequency (390 Hz or 3000 Hz), adapting to both efficiency and visual flicker elimination requirements.

Smart functions and customizable adjustments

The device includes a number of advanced features such as:

  • Level and status memory

  • Double pressure for maximum light

  • Long pressure for night light

  • Fade ON/OFF calibration

  • Customizable minimum brightness level

  • Multiple synchronization between multiple interfaces

All settings are manageable via a simple external button procedure, making installation fast and without special tools.

Protection and secure installation

Housed in a compact plastic enclosure, the luminaire is Class II and IP20, suitable for protected indoor environments. Includes protection against:

  • Short circuit (SCP)

  • Overvoltage (OVP)

  • Reverse polarity (RPP)

  • Open circuit (OCP)

Technical Specifications LEF Dimmer Interface

Technical Data

Feature Value
Input/Output 12-24-48 Vdc
Maximum Current 12 A
Maximum Power 144W at 12V
288W at 24V
576W at 48V
Controls supported Push button (PUSH 230V or 12-48Vdc)
DALI signal
0-10V / 1-10V (active/passive)
100KΩ potentiometer
Switch / Motion sensor
Dimming Modes Phase cut Leading Edge (LE) / Trailing Edge (TE)
PWM selectable: 390 Hz / 3000 Hz
Functions Level and status memory
Max light / night light
Minimum brightness calibration and Fade effect
Synchronization between interfaces
Protections OCP, OVP, RPP, SCP
Operating temperature -20 ÷ +50 °C

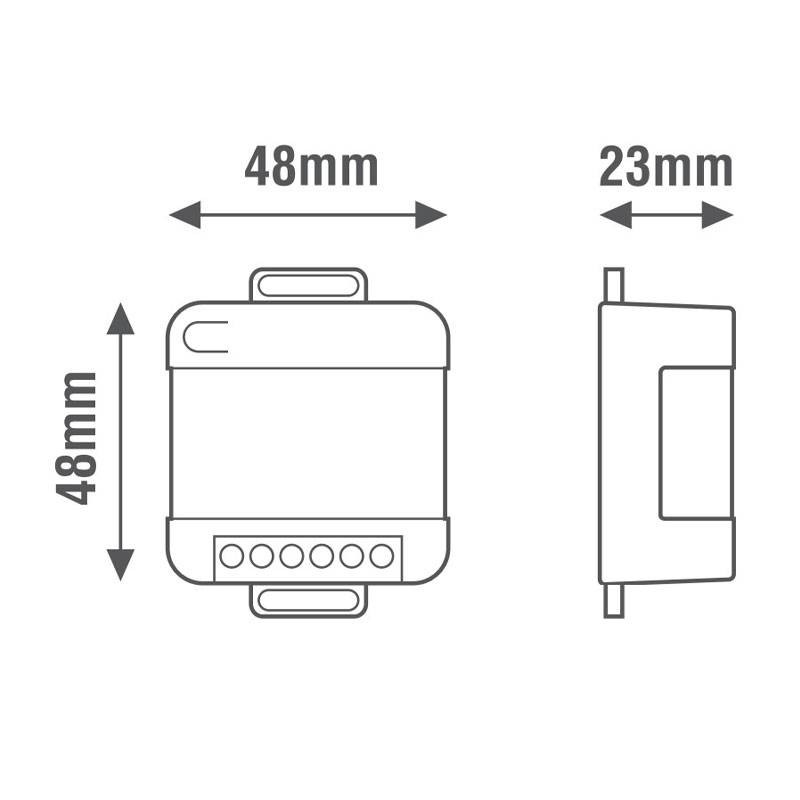

Container Compact plastic
Electrical class II
Degree of protection IP20


Applications

Areas of use Description
Main uses Constant voltage LED control, smart environments, home automation systems, architectural lighting

There are no reviews

Data sheet

Type:
Dimmer
Voltage:
12-24-48V
Degree of protection:
IP20
Installation:
Recessed
