Urmet Connected Light Kit Radio UP System 1054/15
UTD 1054/15
8021156077816
Connected Light Kit Urmet system Radio UP for the management of 5 Zigbee radio lights: it allows to control 4 lights in ON/OFF mode and 1 light in dimming mode, via radio controls from the Yokis UP range and wired buttons, and to connect the system to the Urmet Cloud in order to be able to manage the functions via Yokis YnO UP app, both locally and remotely, voice assistants, Alexa and google assitant, and the definition of scenarios, manual or automatic.

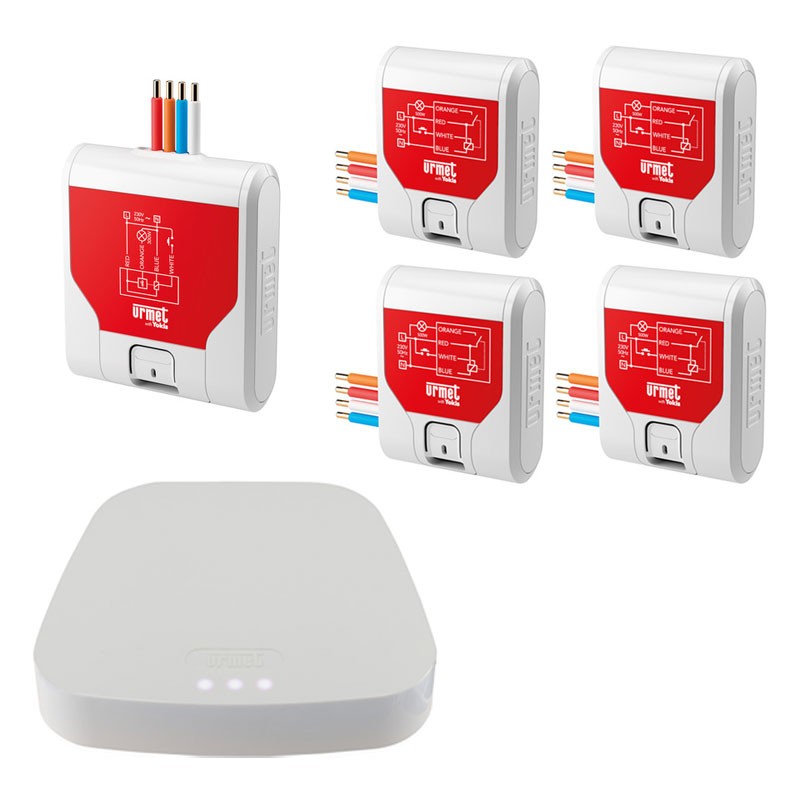

The kit consists of:
- 4 Urmet MTR500E-UP radio relay module 4820404
- 1 MTV300E-UP electronic dimmer module 4820408
- 1 IP/radio gateway GATE-UP 4820411
€390.23
Items Available: 5
: 1
Frequently bought together
Ideal as a basic connected kit for controlling the lights in a room or as an extension of an existing unconnected installation.
Kit component specifications:
MTR500E-UP electronic time-step relay module:
- Line voltage: 230 V~ (± 15%) - 50 Hz
- Power on load: 2A - 500VA (resistive); 1A - 250VA (other loads)
- Stand-by consumption: < 0.8VA - < 0.4W
- Ambient temperature: -20°C + 60°C
- Relative humidity: 0 to 90%
- IP rating: IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 29.1 x 36.7 x 13 mm

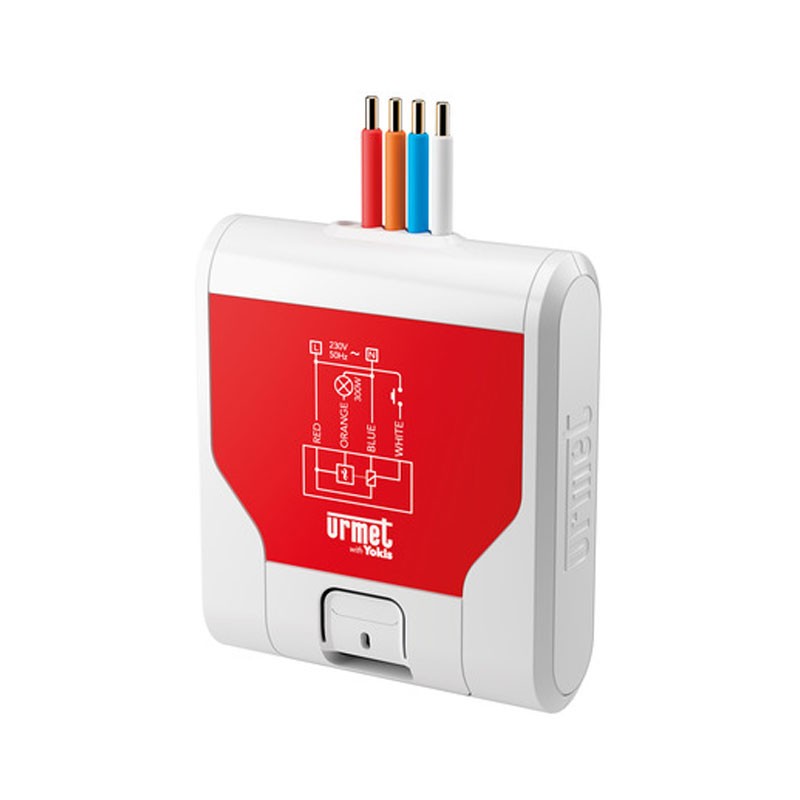

MTV300E-UP electronic timed dimmer module:
- Line voltage: 230 V~ (± 15%) - 50 Hz
- Power on load: 1.3A - 300W (resistive); 0.6A - 125VA (other loads)
- Stand-by consumption: < 0.8VA - < 0.4W
- Ambient temperature: -20°C + 40°C
- Relative humidity: 0 to 90%
- IP rating: IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 40 x 45.7 x 13.1 mm

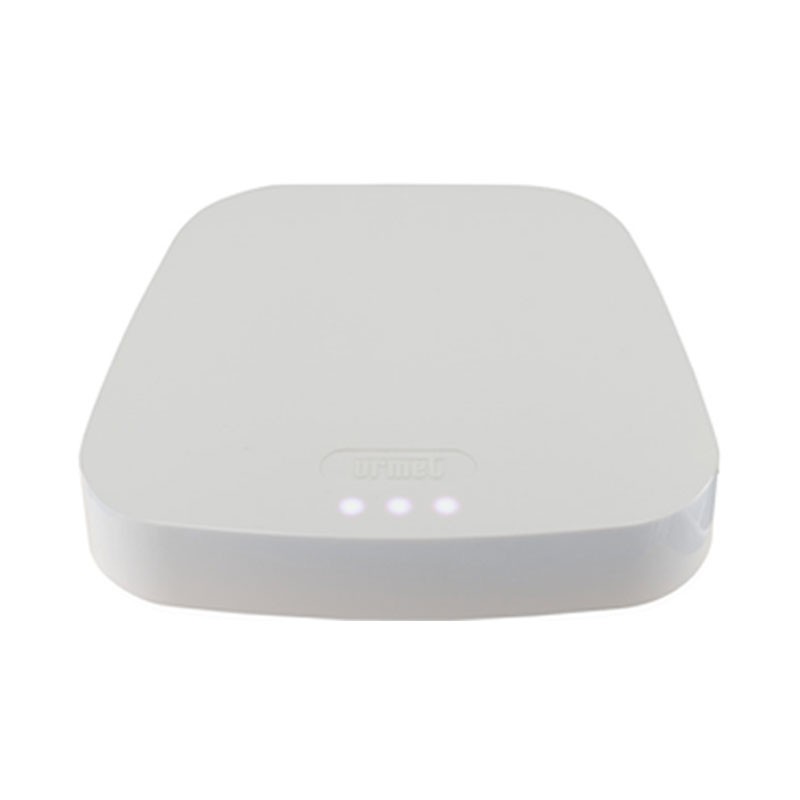

IP/radio gateway GATE-UP:
- Power supply: USB DC 5V to 5.25V 2A
- Radio protocol: Zigbee
- Radio frequency band: 2400.0 to 2483.5 MHz
- Maximum transmitted radio power: 10 mW
- IP network connection: Ethernet RJ45 or Wi-Fi 2.4GHz and 5GHz
- Ambient temperature: -20°C to +40°C
- Relative humidity: 0 to 90%
- Protection ratings IP30
- Installation: table-top and wall-mounted
