Urmet MTR500E-UP time-step radio relay module 4820404
UTD 4820404
8021156076901

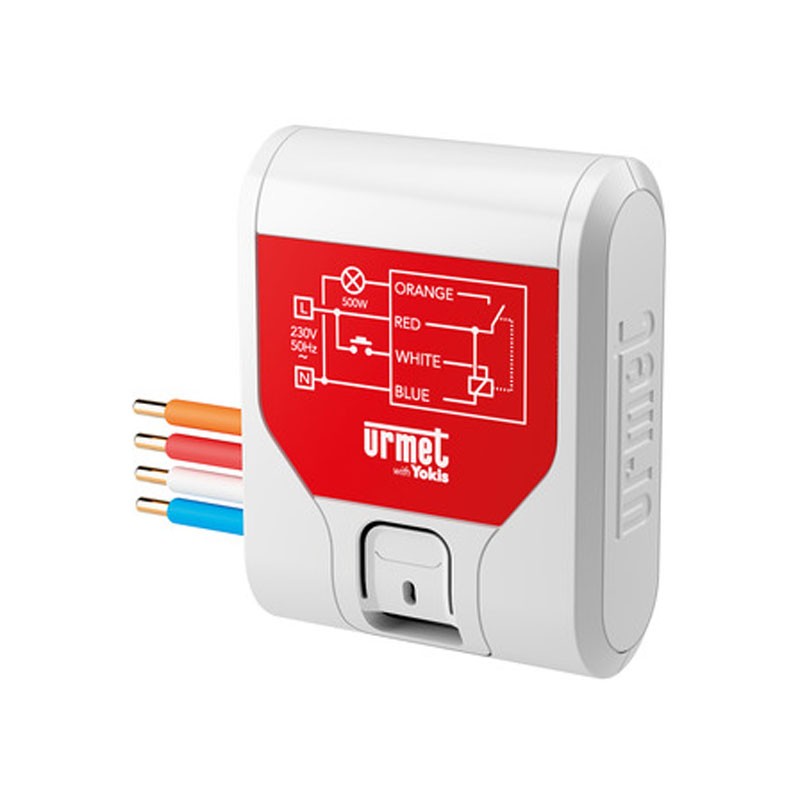

Urmet MTR500E-UP time-step radio-electronic relay module that allows management of lights up to maximum 500W.
The behavior of the relay is customizable, among the following: pulse mode (e.g., electric lock), monostable mode (e.g., doorbell), flasher mode (deaf and hard of hearing application), or staircase light timer mode.
Accessories:
- R12M (cod. 5454073): Dual button interface (non-interlocked)
- D600V (cod. 5454072): diode for centralization of modules via pilot wire.
€44.47
Items Available: 12
: 1
Frequently bought together
Advantages:
- Provides for dual timings: a main one from 2 seconds to 4 hours, with shutdown notice, and an extended one (12 hours)
- The MTR500E-UP module is hybrid, and therefore can be controlled in wired mode, either by directly connected pushbutton or switch, and in radio mode, via Yokis UP transmitters or third-party Zigbee 3.0 transmitters
- Similarly, multiple MTR500E-UP modules can be centralized to enable total turn-on or turn-off, either via pilot wire or via Zigbee radio
- If the installation includes Yokis GATE-UP, the module can also be managed via the YnO UP App, either locally or remotely, and can be managed in automatic mode via scenario definition
- Programming the module is very simple: either through a directly connected button or through the UP2PRO Installer App.
Features:
- Line voltage: 230 V~ (± 15%) - 50 Hz
- Power on load: 2A - 500VA (resistive); 1A - 250VA (other loads)
- Stand-by consumption: < 0.8VA - < 0.4W
- Ambient temperature: -20°C + 60°C
- Relative humidity: 0 to 90%
- IP rating: IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 29.1 x 36.7 x 13 mm.
There are no reviews
Data sheet
- Type: Actuators
