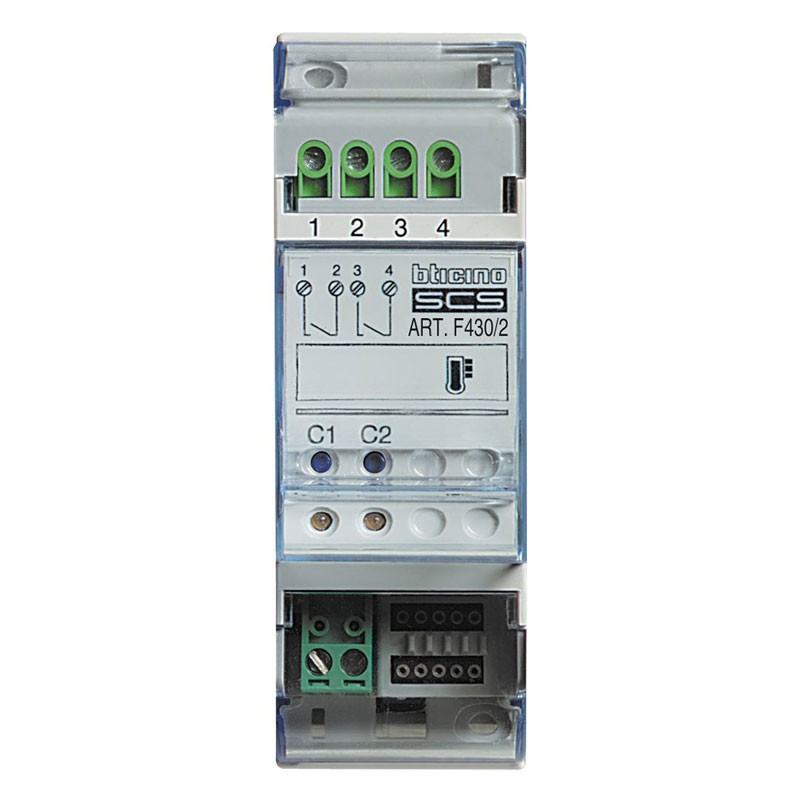

Bticino My Home Actuator with 2 relays 27 Vdc 2 Din Modules F430/2
BTI F430/2
8012199667690
Bticino MyHome actuator with 2 independent relays for single and double loads. Ideal for valves, pumps and electric radiators. ON/OFF or open/close function, with the following features:
-
Supply voltage: 27 Vdc
-
Current consumption: 25 mA
-
Number of DIN modules: 2
-
Number of contacts: 2 independent relays
-
Supported functions: single ON/OFF - Open/Close (relay interlock)
-
Installation type: DIN rail
-
Compatibility: SCS BUS systems - MyHome
-
Applications: Motorized valves, pumps, electric radiators, home automation loads
€100.99
Items Available: 19
: 10
2-Relay actuator: flexible control for residential and plant automation
The MyHome series 2-independent relay actuator is the ideal solution for managing single or dual electrical loads in advanced automation systems. This device, which can be installed in a 2-module DIN-rail electrical panel, receives commands from a control panel or probe to activate electrical loads such as motorized valves, pumps, and electric radiators.
Dual modes: ON/OFF or Open/Close
Thanks to the presence of two independent relays, the actuator can be configured to control two separate loads in ON/OFF mode, or a single load in Open/Close mode, with logical management via contact interlocking. In the latter case, C1 commands opening and C2 closing, avoiding simultaneous actuations and extending the life of the controlled load.
High compatibility and safety
The 27 Vdc power supply and low current draw (25 mA) make it perfect for MyHome and SCS BUS-based home automation systems, offering safety, low consumption and full compatibility. The actuator complies with regulations for use in civil and industrial switchboards.
DIN-rail installation and intuitive operation
The compact 2-DIN module design enables quick and easy installation in standard switchboards. With its modular design and neat wiring, it is easy to integrate even into existing installations. Once installed, it can be configured with home automation controllers for automatic management based on scenarios, temperatures, or timers.
Technical Specifications Bticino My Home Actuator
| Parameter | Value |
|---|---|
| Supply voltage | 27 V DC |
| Current consumption | 25 mA |
| Power consumption | 1,7 W |
| Number of DIN modules | 2 |
| Device height | 90 mm |
| Number of contacts | 2 independent relays |
| Maximum load (resistive) | 6 A |
| Maximum load (pumps/valves) | 2 A |
| Supported functions | Single ON/OFF, Open/Close (relay interlock) |
| Installation type | DIN rail |
| Compatibility | SCS BUS - MyHome |
| Applications | Motorized valves, pumps, radiators, home automation loads |
