Urmet Radio Shutter Module MVR500E-UP 4820409
UTD 4820409
8021156076956

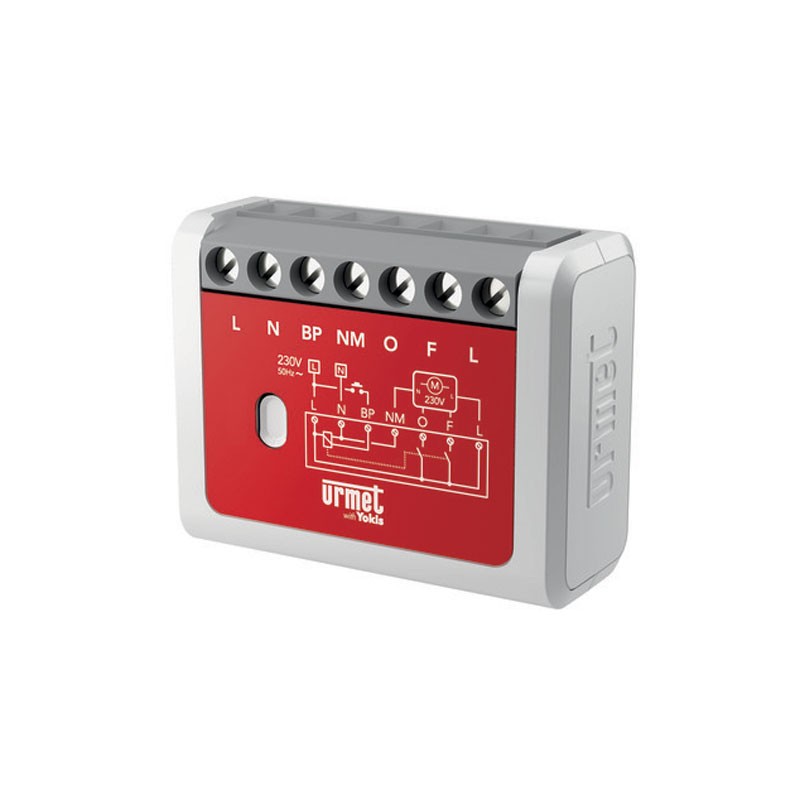

Urmet MVR500E-UP Electronic Radio Roller Shutter Module is an actuator is an actuator suitable for operating 3-wire or 4-wire motors up to 500W (powered at 230V) for operating motorized roller shutters, blinds, shutters, and awnings.
Accessory to be purchased separately Pilot wire centralization diodes 5454072 and Dual pushbutton interface (non-interlocked) 5454073.
€53.57
Items Available: 12
Frequently bought together
Advantages:
- Operable with both single and double non-interlocked pushbuttons, via R12M accessory
- Possibility of defining an intermediate position (recallable with 2 button presses) and configuring electronic limit switches
- MVR500E-UP modules can be centralized either in wired mode, via pilot wire, or via Zigbee radio
- If the system includes GATE-UP, the module can also be managed via the YnO UP App, either locally or remotely, and can be managed in automatic mode via scenario definition
- Built-in torque control prevents damage to the shutter or motor in the event of an obstacle, and allows the shutter's reverse movement to be activated in the event of a motor overload
- Programming the module is very simple: either through a directly connected button or through the UP2PRO Installer application
Features:
- Line voltage: 230V ~ (+10% - 15%) - 50Hz
- Power on load: 2A max. 500VA
- Standby consumption: 1.3VA - 0.7W
- Ambient temperature: -20°C + 60°C
- Relative humidity: 0 to 90%
- Degree of protection: IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 34.7 x 44.1 x 18.5 mm
There are no reviews
Data sheet
- Type: Actuators
