Urmet connected roller shutters kit Radio UP System 1054/17
UTD 1054/17
8021156077809

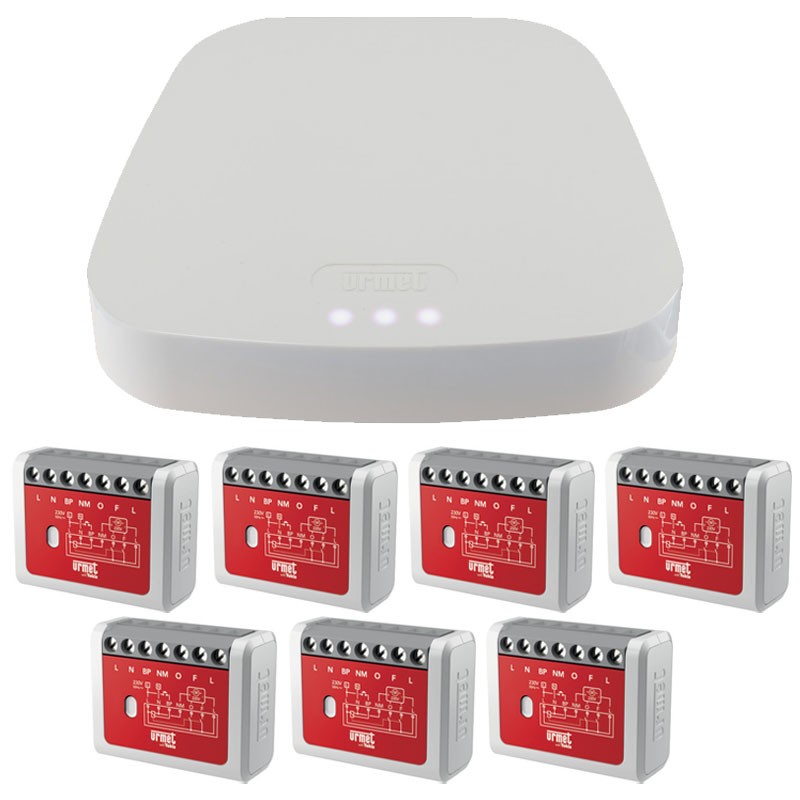

Urmet connected rolling shutter kit Radio UP system consisting of:
- 7 Electronic shutter modules, 500W, Radio UP system, flush-mounted (4820409)
- 1 Gateway IP/radio GATE-UP, Radio UP system (4820411)
The kit allows to manage up to 7 motorized rolling shutters, via Yokis UP radio controls and wired buttons, and to connect the system to the Urmet Cloud in order to be able to manage the functions via Yokis YnO UP app, both locally and remotely, voice assistants, Alexa and google assitant, and the definition of scenarios, manual or automatic.
€513.07
Items Available: 13
: 4
Frequently bought together
The kit is expandable with other devices from the Yokis UP range to allow the Yokis system to be extended at a later date.
Parts specifications:

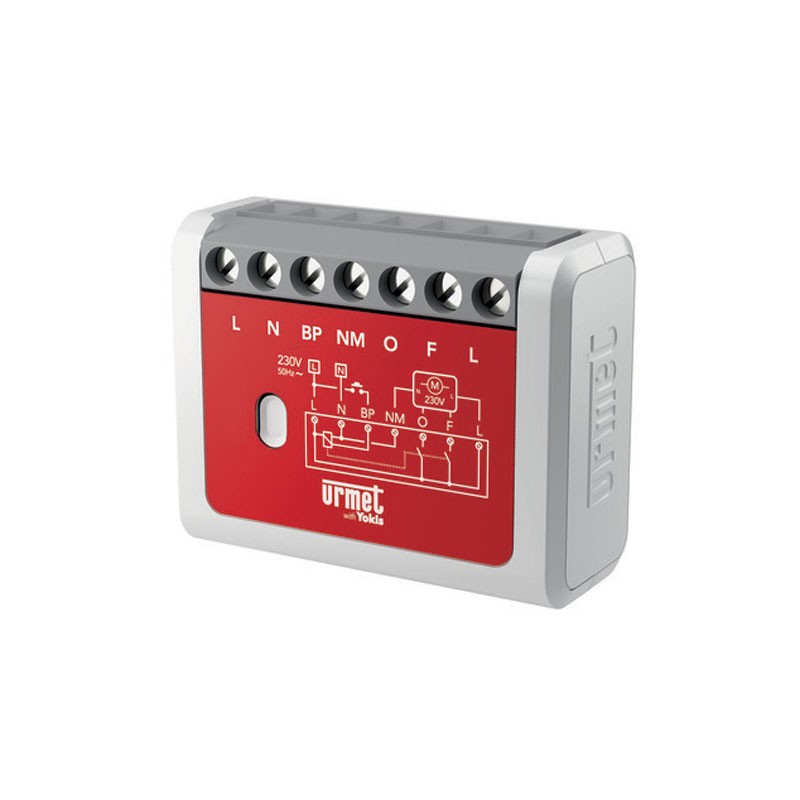

MVR500E-UP Electronic Shutter Module:
- Line voltage: 230V ~ (+10% - 15%) - 50Hz
- Power on load: 2A max. 500VA
- Stand-by consumption: 1.3VA - 0.7W
- Ambient temperature: -20°C + 60°C
- Relative humidity: 0 to 90%
- Degree of protection: IP30
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 34.7 x 44.1 x 18.5 mm
IP/radio gateway GATE-UP:
- Power supply: USB DC 5V to 5.25V 2A
- Radio protocol: Zigbee
- Radio frequency band: 2400.0 to 2483.5 MHz
- Maximum transmitted radio power: 10 mW
- IP network connection: Ethernet RJ45 or Wi-Fi 2.4GHz and 5GHz
- Ambient temperature: -20°C to +40°C
- Relative humidity: 0 to 90%
- Protection ratings IP30
- Installation: table-top and wall-mounted
There are no reviews
Data sheet
- KIT: Smart Roller Shutter Kit
