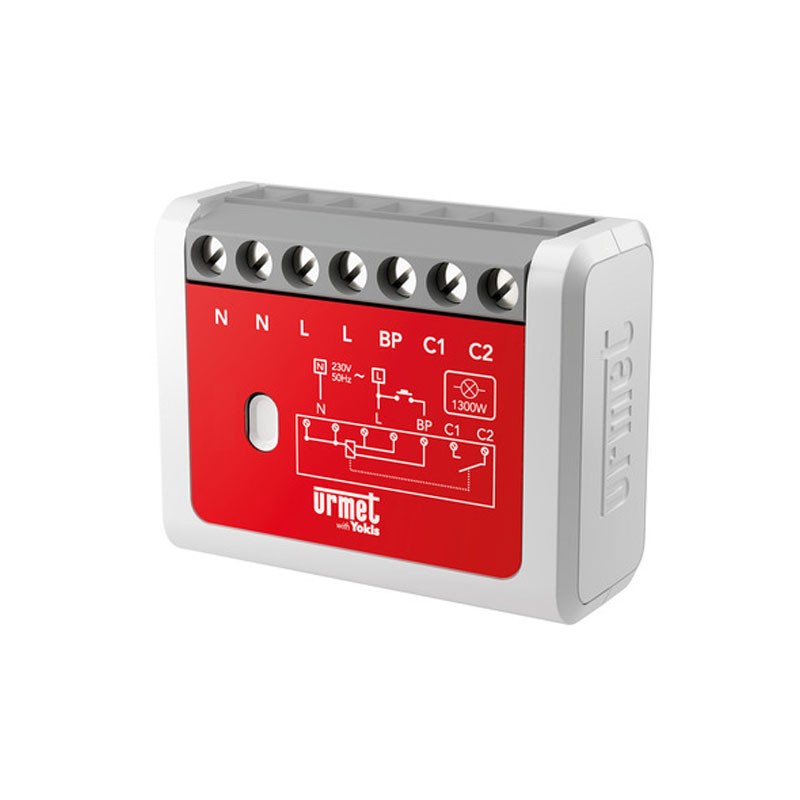

Urmet MTR1300EB-UP time-step radio relay module 4820406
UTD 4820406
8021156076925
Urmet MTR1300EB-UP time-step radio relay module, UP radio system, built-in, with neutral:
- Line voltage: 230 V~ (± 15%) - 50 Hz
- Power on load: 5.6A - 1300W (resistive); 2.8A - 690VA (other loads)
- Stand-by consumption: < 0.8VA - < 0.4W
- Ambient temperature: -20°C + 60°C
- Relative humidity: 0 to 90%
- IP protection rating: IP30
- Audio level: <60dB at 20cm
- Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
- Radio protocol: Zigbee
- Maximum transmitted radio power: 10 mW
- Radio frequency band: 2400.0 - 2483.5 MHz
- Dimensions (WxHxD): 44.1 x 34.7 x 18.5 mm
Accessories:
- R12M (cod. 5454073): Dual button interface (non-interlocked)
- D600V (cod. 5454072): diode for centralization of modules via pilot wire
€45.30
Items Available: 49
: 15
Frequently bought together
The MTR1300EB-UP flush-mounted radio module is a timed electronic stepper relay that allows the management of automations up to a maximum of 1300W; it is the most versatile timed relay in the Yokis UP range: thanks to its dry contact operation, it allows the control of power circuits up to 1300W as well as the control of logic or low-voltage circuits.
Advantages:
- Improved wiring: thanks to screw terminals, the wiring is more robust and the presence of the double input for phase and neutral does not require additional terminal blocks
- Provides for dry contact operation, and therefore also suitable for low voltage or automation projects
- Relay behavior is customizable, including the following: pulse mode (e.g., electric lock), monostable mode (e.g., doorbell), flasher mode (deaf and hard of hearing application), or staircase light timer mode
- Provides for dual timings: a main one from 2 seconds to 4 hours, with warning to turn off, and an extended one (12 hours).
The MTR1300EB-UP module is hybrid, and therefore can be controlled in wired mode, either by directly connected pushbutton or switch, and in radio mode, via Yokis UP transmitters or third-party Zigbee 3.0 transmitters.
Similarly, multiple MTR1300EB-UP modules can be centralized to enable total turn-on or turn-off, either via pilot wire or via radio
Zigbee.
If the installation includes Yokis GATE-UP, the module can also be managed via the YnO UP App, either locally or remotely, and can be managed in automatic mode via scenario definition. Programming the module is very simple: either through a directly connected button or through the UP2PRO Installer App.
There are no reviews
Data sheet
- Type: Actuators
