Bticino actuator with 1 relay for single loads 3476
Bticino actuator with 1 relay for single loads: 2A resistive or incandescent lamps, 2A inductive for ferromagnetic transformers.
Prepared for connection with push-button control type NO - Basic module for installation in junction boxes or equipment boxes.
Bticino actuator with 1 relay for single loads 3476
Tax included

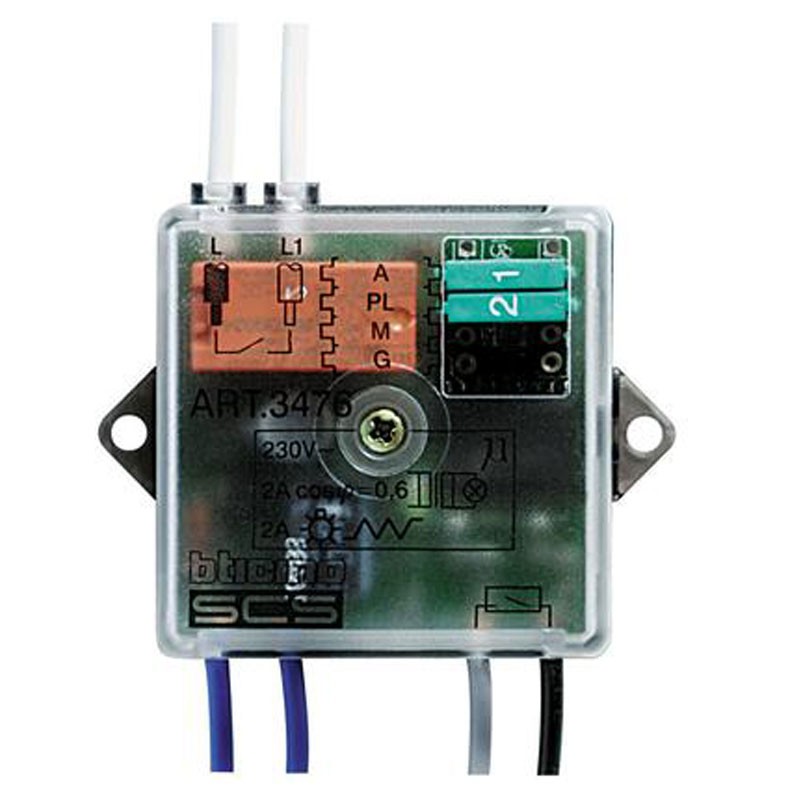

The device is characterized by small dimensions and can be used in flush-mounted boxes, junction boxes, boxes, channels. Particularly advantageous is the use from the back of the box that provides for the positioning of the article on the bottom of the recessed box, behind automation devices lowered or behind traditional devices (buttons, switches, etc..). This actuator/command accepts a traditional pushbutton with NO contact as input. The command/actuation device has a bus input made via the blue colored wires, an input to connect the external push button via the gray and black wires and a relay contact for load control via the two white wires.
Configuration:
The device if installed in a MyHOME system can be configured in two ways:
- PHYSICAL CONFIGURATION, by inserting the configurators in the appropriate locations.
- Configuration through MyHOME Suite software, downloadable from www.homesystems-legrandgroup.com; this mode has the advantage of offering many more options than the physical configuration. For the list of modes and their meanings, refer to the indications of this sheet and to the "Glossary" section of the MyHOME Design and Installation Guide.
NOTE: The MyHOME Server automatically configures 1 channel for this device.
Features:
- Voltage 27Vdc
- Current In 13mA
- Contact Type 1
- IT Series MyHome
Data sheet
- Type:
- Actuators
