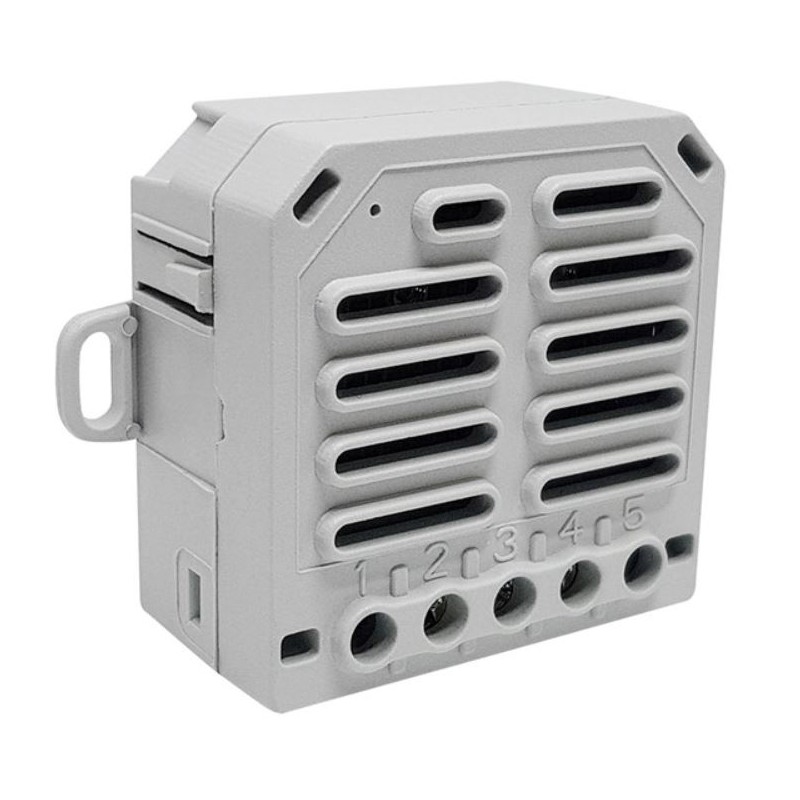

Dimmer Controller Light Perry for incandescent lamps 400W 1MCD002
PER 1MCD002
8019108023691
Perry light dimmer controller for incandescent lamps, with the following features:
- 230V ac power supply ± 10% 50 Hz
- Section of cables at terminals 0,75/6 mm²
- Degree of protection IP20
- Recessed box installation
- Operating temperature from -10°C to +35°C
- Storage temperature from -10°C to +60°C
- LVD/EMC marking standard EN60669-2-1

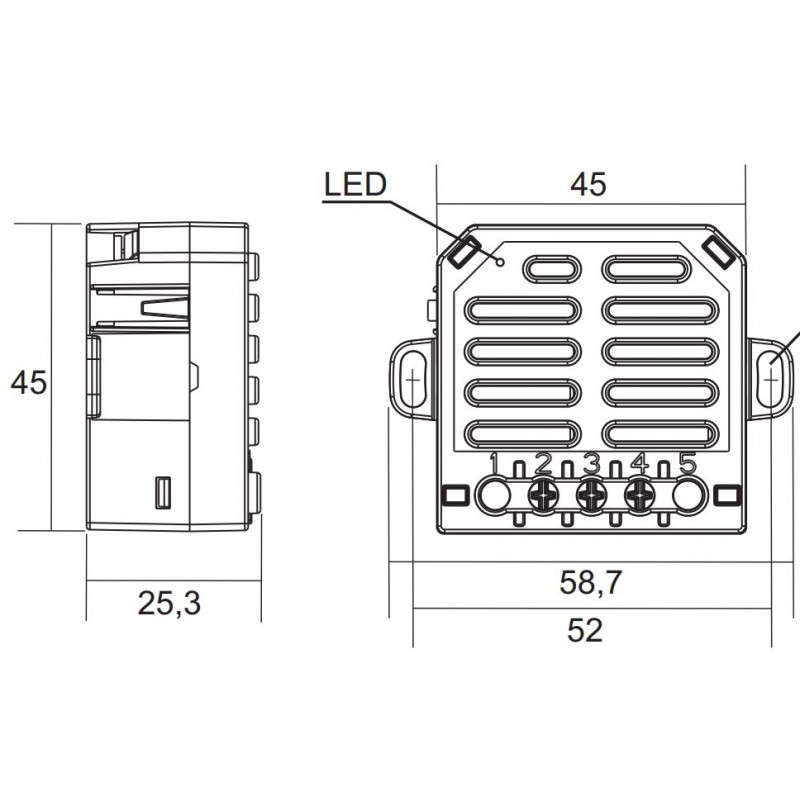

- Dimensions (WxDxH) 58.7 x 45 x 25.3 mm
€33.96
Items Available: 23
: 2
The Dimmer is an artificial dimming device in domestic, civil and tertiary environments.
It can be installed inside electrical panels, in junction boxes type 503 or recessed in the wall.
It has been specially designed to be used with dimmable lamps: LED, halogen, incandescent, with the TE "TrailingEdgedimming" regulation method.
It has an internal memory and, once the desired light intensity has been defined, it will maintain the setting at subsequent switch-on.
The connection of remote buttons, allows you to manage the 'lighting in a convenient and practical, so you can turn on, off and adjust the lights from different points (particularly useful in large rooms or corridors).
Maximum power that can be driven:
- TE 400W incandescent lamps
- TE 400W Halogen lamps
- LED TE 150W
There are no reviews
Data sheet
- Type: Dimmer
