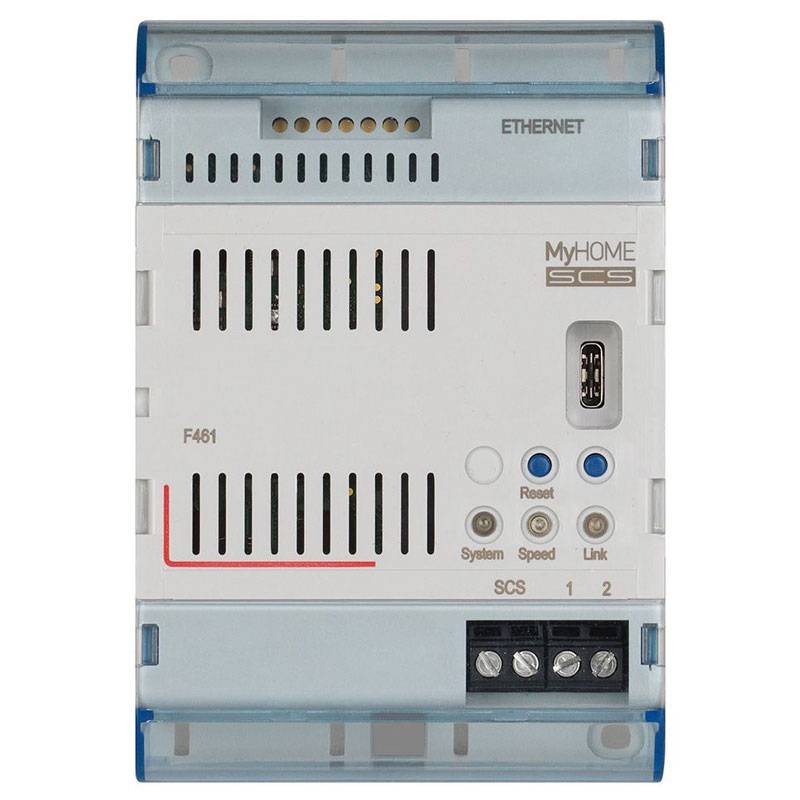

Bticino MyHome SCS Web Server for Third Parties F461
BTI F461
8005540000000
The Bticino F461 is the SCS Web Server designed for advanced management of MyHome home automation systems in integration with third-party platforms such as RTI, Crestron, Control4 and Savant. It is the ideal solution for high-level and complex home automation projects that require interfacing between MyHome and external professional systems
-
Server for MyHome integration with third parties
-
Compatible with RTI, Crestron, Control4, Savant
-
Configurable via Home + Project app
-
Operational use via third-party app (not Home + Control)
-
Native SCS protocol for direct communication with external systems
-
Automatic updates when connected to the internet
-
Power supply from BUS 27 VDC
-
4-module DIN mounting
-
Cannot be used in conjunction with F460 server in the same system
€304.40
Items Available: 18
Bticino F461 SCS Web Server: Third-party systems integration for MyHome
The F461 Web Server is designed to be the bridge between the Bticino MyHome world and professional control systems used in complex automation environments. It is perfect for installations where you want to keep MyHome for technical management (lights, shutters, climate...) but control everything from custom third-party graphical interfaces.
Configuration via Home + Project
Initial server configuration is via Home + Project app, available for professional installers. Once configured, control of the system will be exclusively via connected external systems, thanks to the exposure of the SCS protocol in the local area network.
Compatibility and limitations
The F461 Web Server cannot be installed together with the F460 server in the same plant. It is designed for installations where management is fully delegated to third-party systems. For technical documentation and APIs, the official developer portal is available at developer.legrand.com.
Technical Specifications Power Supply and Absorption
| Parameter | Value |
|---|---|
| Power supply from SCS BUS | 18 - 27 Vdc |
| Additional power supply (optional) | 20 - 27 Vdc |
| SCS BUS power consumption without additional power supply | 18 Vdc / 128 mA, 27 Vdc / 85 mA |
| SCS BUS absorption with additional power supply | 3 mA |
| Absorption from supplementary power supply | 20 Vdc / 106 mA, 27 Vdc / 87 mA |
| Operating temperature | 5 - 35 °C |
There are no reviews
Data sheet
- Type: Server
