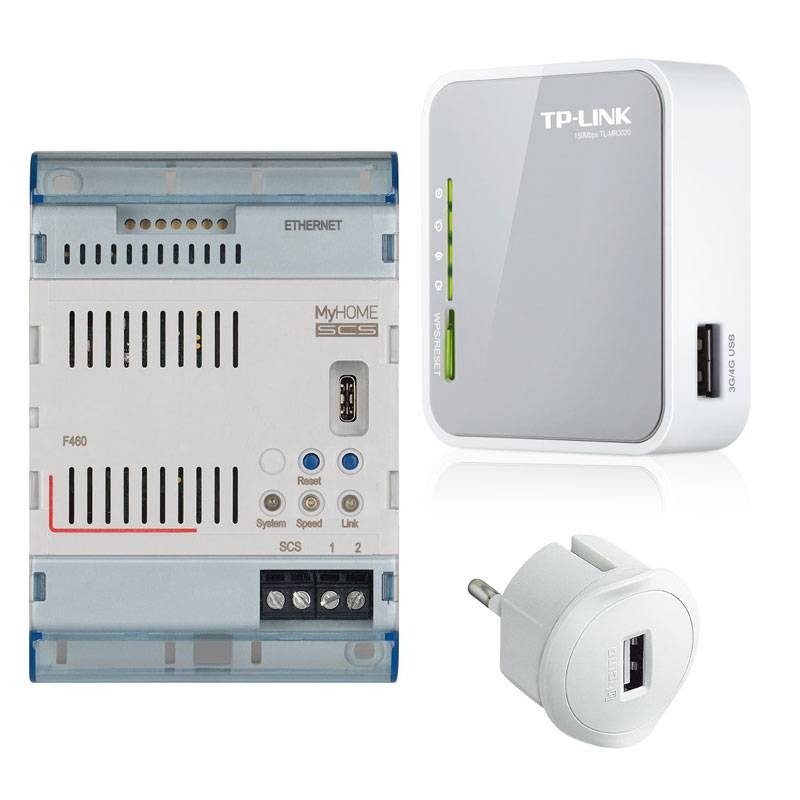

Bticino F460KIT home automation kit perfect for installations in environments where a fixed network is not available

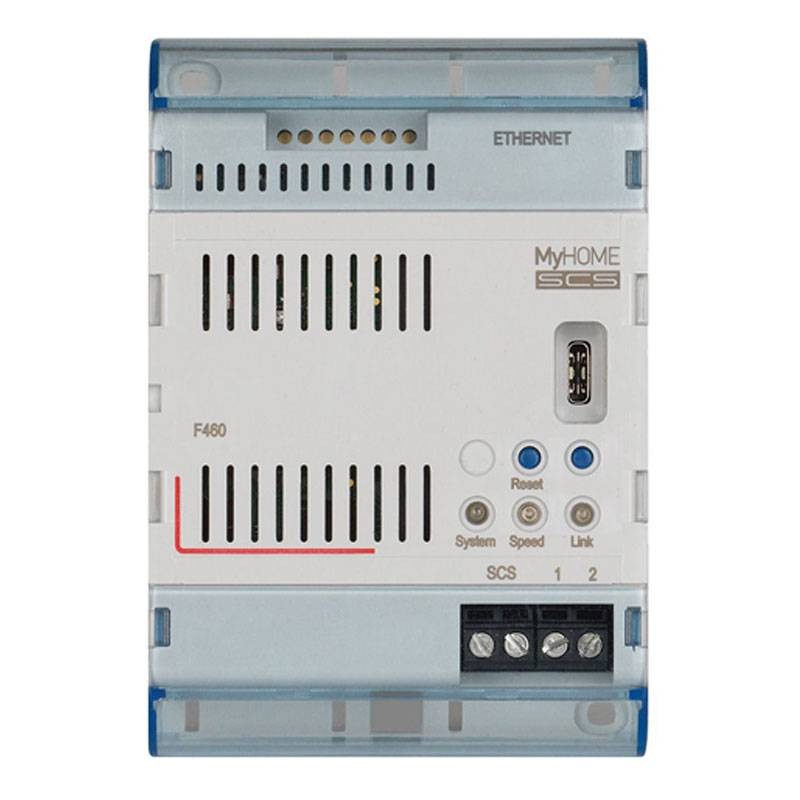

Bticino MyHome Server SCS F460 for MyHome home automation devices

The MyHOME Server SCS is the new server designed for complete configuration, management and control of MyHOME home automation devices, ideal for high-end residential and professional installations. It enables integration and supervision of all major home automation functions, with extensive expandability, remote management and compatibility with leading voice assistants.

• MyHOME device configuration via Home + Project app, even offline

• Local and remote management via Home + Control app for Android and iOS

• Compatible with Amazon Alexa® and Google Assistant®

• Supports up to 175 native addresses, expandable to 525 addresses with 2 F422A interfaces

• Integration with Philips Hue®, Lifx® devices and other third-party smart systems

• Compatible with HOMETOUCH touchscreen for centralized control and video intercom function

• Direct power supply from BUS 27 V DC

• 4-module DIN mounting

• Lighting, Automation, Climate and Energy Management

• Native integration of ambient humidity management.



Bticino F460 MyHome Server: Total control of your home automation system

The MyHOME Server SCS enables quick and intuitive configuration of all MyHOME devices via the dedicated Home + Project app, even in the absence of an Internet network. During installation, you can easily associate and customize each device with a professional interface designed for installers and system integrators.

User control via app and voice commands

Once installed, the user can manage all home automation functions via the Home + Control app, available for Android and iOS smartphones. The system is compatible with Alexa® and Google®, for intuitive and smart voice control. Third-party devices, such as Hue® or Lifx® smart lamps, can also be integrated to further expand the potential of the system.

Expandable and seamlessly integrated with Hometouch

The server natively handles 175 addresses, but can be expanded up to 525 using two F422A interfaces. It integrates seamlessly with the HOMETOUCH touchscreen, turning it into a home automation control center and a connected video intercom indoor station.

Functions of the Bticino F460 Server

• Device association during system startup by the installer using the Home+Project app. As for the Light, Automation, Temperature Control and Energy systems, the system startup is done via Server using the Home+Project app directly (Possibility to configure the system even without internet).
• For local and remote management of functions by the user with the specific Home + Control app for Android and iOS smartphones and with Alexa® and Google® voice commands, it is possible to control the MyHOME system (2) and third-party devices (3). You can also make customizations and create scenarios for managing the MyHOME system.



A physical interface used as a VDE indoor station and Touchscreen for system control (HomeTouch) can be combined with the server.

Installation tips

• It is recommended to update MH Server SCS to the latest available firmware version.
• MH Server SCS will update automatically if connected to the internet in % progressive.
• In the same installation MyHOME F460 server SCS should not be used in combination of F461 third-party server.

Technical Specifications Power Supply and Operating Conditions

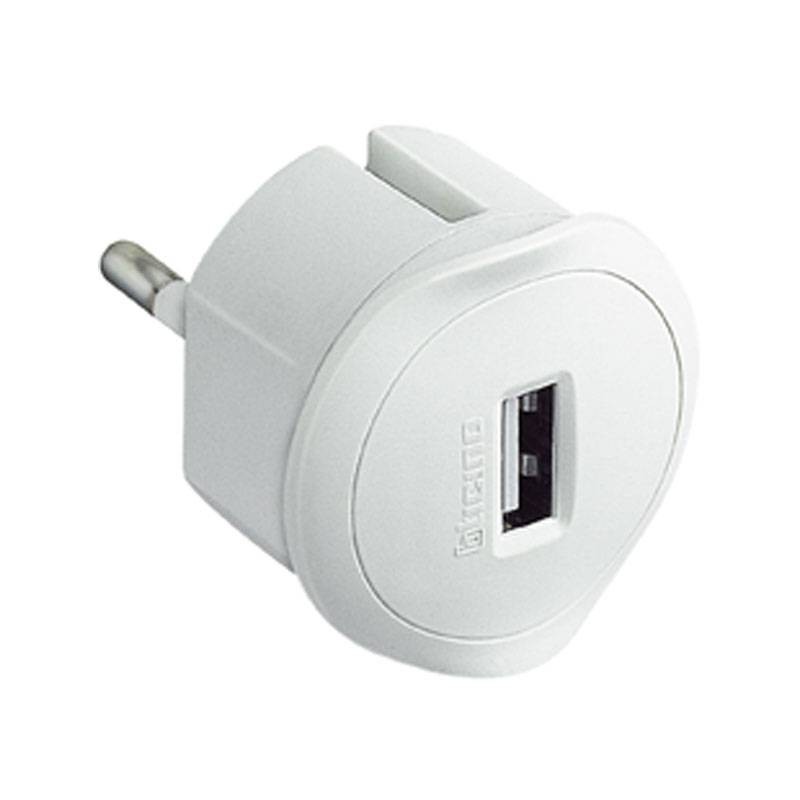

S3625DU German standard plug adapter USB 1.5A white socket

The S3625DU adapter provides a 5V 1.5A USB port, ideal for powering your portable router or other low-power devices. Compact size with German plug allows direct installation in wall outlet, without taking up space in the electrical panel.

• Type: USB adapter

• Plug: German standard

• Output: 5V 1.5A

• Color: White

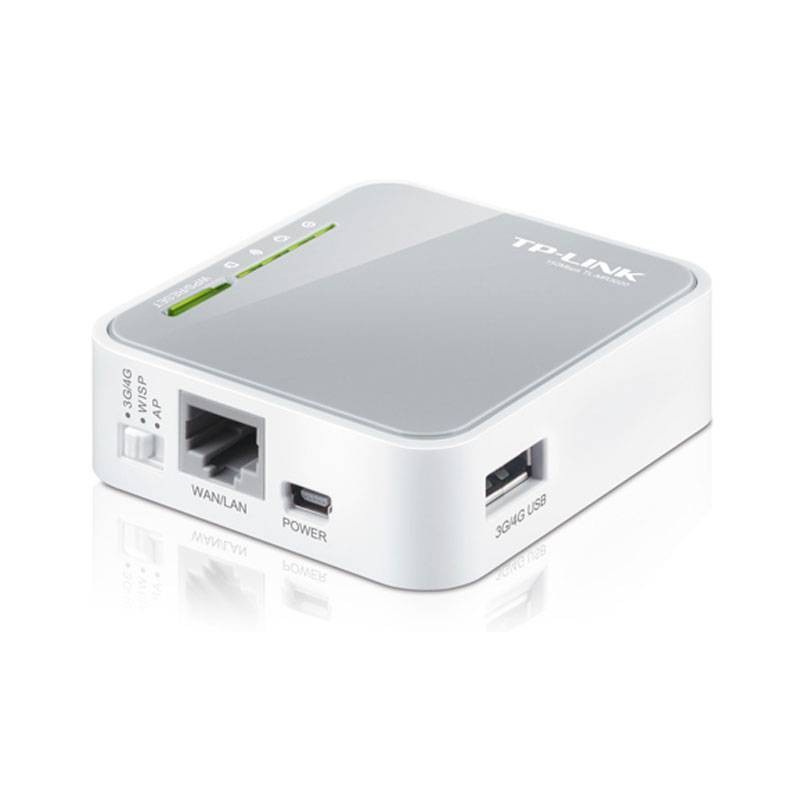

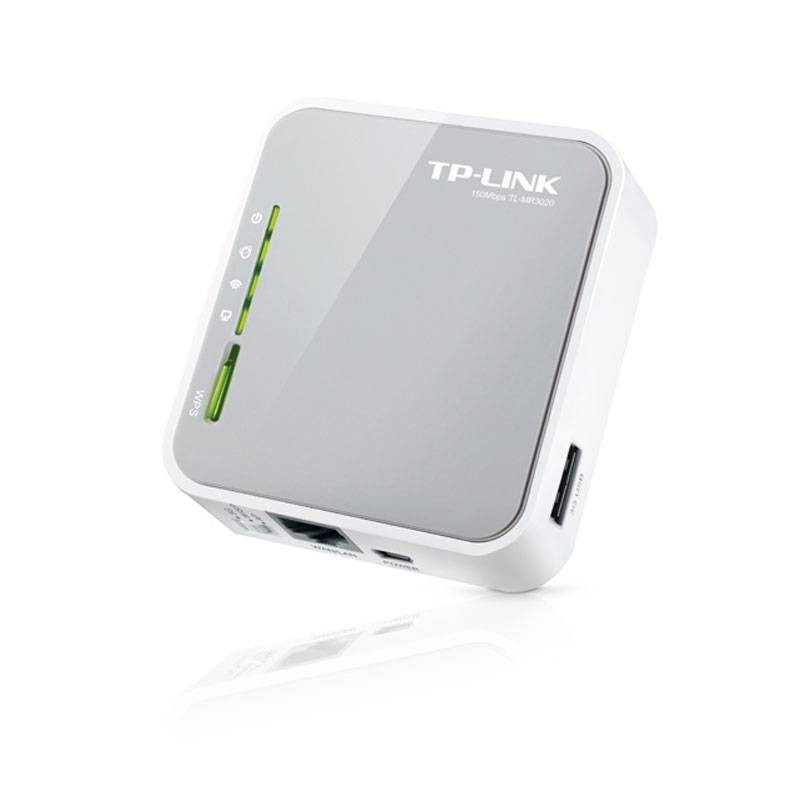

TP-Link TL-MR3020 Portable Router

The TP-Link TL-MR3020 is a portable router designed to share 3G/4G LTE mobile connections anywhere reached by a cellular network. Lightweight, compact and powered via MiniUSB, it is the ideal solution for travel, camping, hotels and mobility. Supports 3G/4G USB modems and can be configured in different operating modes: 3G/4G Router, WISP Client and Access Point (AP)

• Wireless speed up to 150 Mbps (N standard)

• Compatible with 3G/4G LTE/UMTS/HSPA/EVDO USB modems

• 3 operating modes: 3G/4G Router - WISP Client Router - Access Point (AP)

• Wi-Fi hotspot sharing wherever there is cellular coverage

• USB/WAN failover function for an always-on connection

• Power supply via MiniUSB port (from notebook or power supply)

• Compact and lightweight travel design

• Ideal for: traveling families, camping, hotels, trains, temporary offices



Internet anywhere thanks to mobile network

The TL-MR3020 allows you to create a portable Wi-Fi hotspot by connecting a 3G/4G USB modem to the built-in USB port. It is perfect for those who need a stable connection in places where there is a lack of a fixed network, such as vacation homes, vehicles, mobile facilities or temporary events.

Always-on connection with USB/WAN failover

With a failover feature between USB and WAN ports, the router automatically switches between connections in the event of a signal interruption, ensuring continuous, uninterrupted browsing.

Compact and can be powered anywhere

The pocket size and the ability to be powered via MiniUSB make it perfect for use on the go. It can be connected to a notebook, power bank or USB charger, offering maximum flexibility and portability.

Technical Specifications - TL-MR3020 Router

Hardware Features

Wireless Features

Software Features

Other
