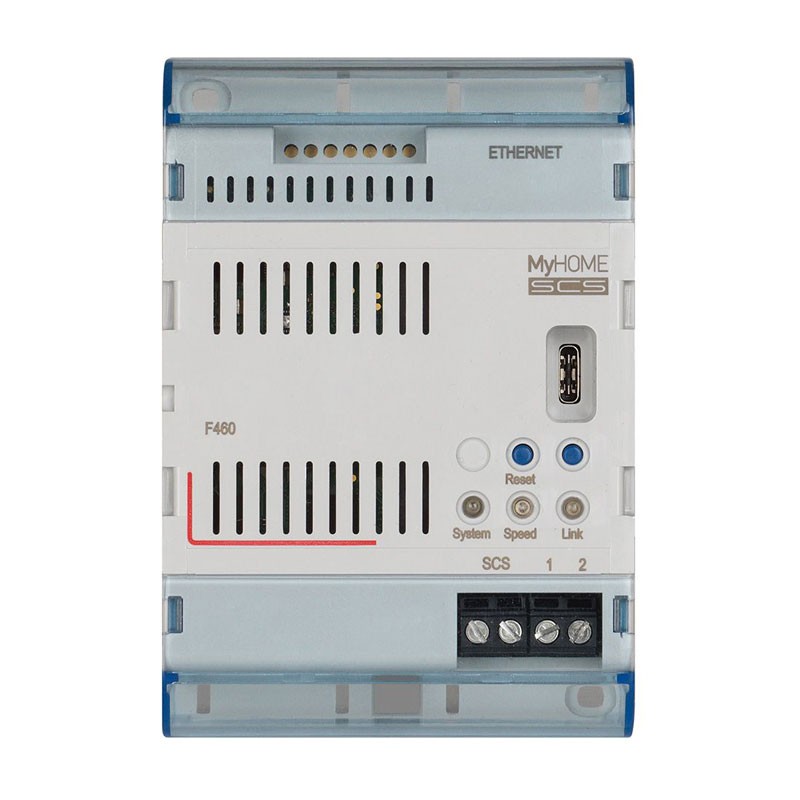

Bticino MyHome SCS F460 server for MyHome home automation devices
BTI F460
8005543718216
The MyHOME Server SCS is the new server designed for complete configuration, management and control of MyHOME home automation devices, ideal for high-end residential and professional installations. It enables integration and supervision of all major home automation functions, with extensive expandability, remote management and compatibility with leading voice assistants.
- MyHOME device configuration via Home + Project app, even offline
- Local and remote management via Home + Control app for Android and iOS
- Compatible with Amazon Alexa® and Google Assistant®
- Supports up to 175 native addresses, expandable to 525 addresses with 2 F422A interfaces
- Integration with Philips Hue®, Lifx® devices and other third-party smart systems
- Compatible with HOMETOUCH touchscreen for centralized control and video intercom function
- Direct power supply from BUS 27 V DC

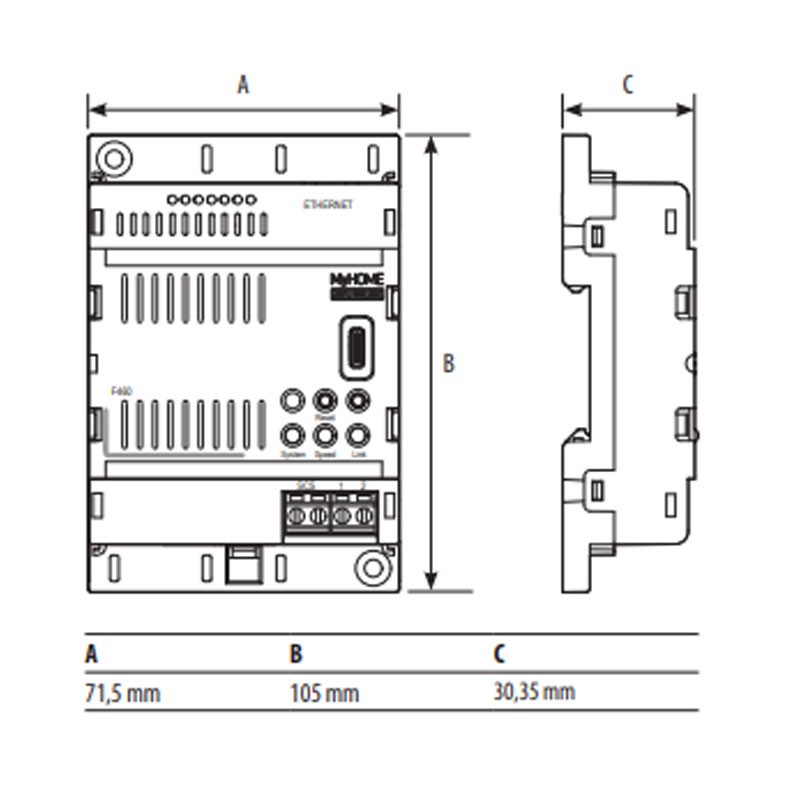

- DIN mounting - 4 modules
- Lighting, Automation, Climate and Energy Management
- Native integration of ambient humidity management
€389.79
Items Available: 22
Bticino F460 MyHome Server: Total control of your home automation system.
The MyHOME Server SCS enables quick and intuitive configuration of all MyHOME devices via the dedicated Home + Project app, even in the absence of an Internet network. During installation, you can easily associate and customize each device with a professional interface designed for installers and system integrators.
User control via app and voice commands
Once installed, the user can manage all home automation functions via the Home + Control app, available for Android and iOS smartphones. The system is compatible with Alexa® and Google® for intuitive and smart voice control. Third-party devices, such as Hue® or Lifx® smart lamps, can also be integrated to further expand the potential of the system.
Expandable and seamlessly integrated with Hometouch
The server natively handles 175 addresses, but can be expanded up to 525 using two F422A interfaces. It integrates seamlessly with the HOMETOUCH touchscreen, turning it into a home automation control center and a connected video intercom indoor station.
Functions of the Bticino F460 Server
- Device association during system startup by the installer using the Home+Project app. As for the Light, Automation, Temperature Control and Energy systems, the system startup is done via Server using the Home+Project app directly (Possibility to configure the system even without internet).
- For local and remote management of functions by the user with the specific Home + Control app for Android and iOS smartphones and with Alexa® and Google® voice commands, it is possible to control the MyHOME system (2) and third-party devices (3). You can also make customizations and create scenarios for managing the MyHOME system.
A physical interface used as a VDE indoor station and Touchscreen for system control (HomeTouch) can be combined with the server.
Installation tips
- It is recommended to update MH Server SCS to the latest available firmware version.
- MH Server SCS will update automatically when connected to the internet in % progressive.
- In the same installation MyHOME F460 server SCS should not be used in combination of F461 third-party server.
Technical Specifications - Power Supply and Operating Conditions
| Parameter | Value |
|---|---|
| Power supply from SCS BUS | 18 - 27 Vdc |
| Additional power supply (optional) | 20 - 27 Vdc |
| SCS BUS power consumption (without additional power supply) | 18 Vdc / 128 mA, 27 Vdc / 85 mA |
| SCS BUS absorption (with additional power supply) | 3 mA |
| Absorption from supplementary power supply | 20 Vdc / 106 mA, 27 Vdc / 87 mA |
| Operating temperature | 5 - 35 °C |
Parfait emballage et livraison rapide je recommande très bien
Produit e qualité conforme à la commande
ottimo apparecchio perchè permette di rimuovere i configuratori fisici e passare tutto a programmazione tramite app/pc.
Assurdo però che bticino non permetta l'esportazione dei segnali a software terzi di home automation. Utilizzabile soltanto tramite Home project e home control
bon produit, même constat ,un peu chère
Preciso e puntuale nella spedizione. Consiglio vivamente
Ottimo prodotto by BTicino, perfetta integrazione tramite APP MyHome_UP ed integrazione con Alexa tramite apposita SKILL
Conforme à l'attente. Bon produit. Utilisation à compléter car beaucoup de possibilités.
Produit Conforme à la desciption pas de surprise
Ottimo prezzo, materiale corretto consegna nei tempi.
Ottimo prezzo e spedizione veloce, consigliato
Data sheet
- Type: Server
