Bticino 363915 Video Intercom Kit Components

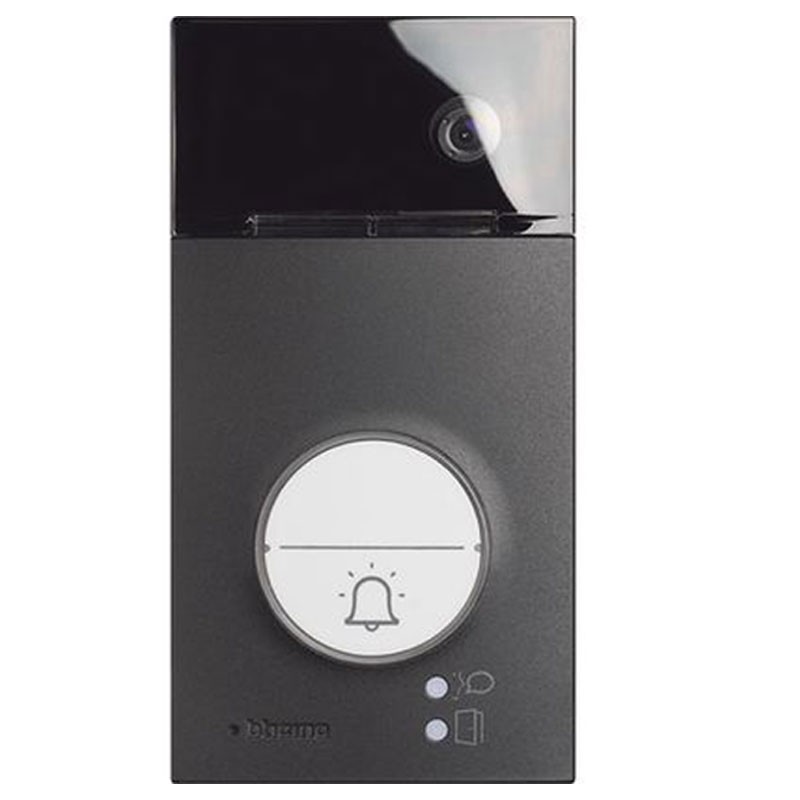

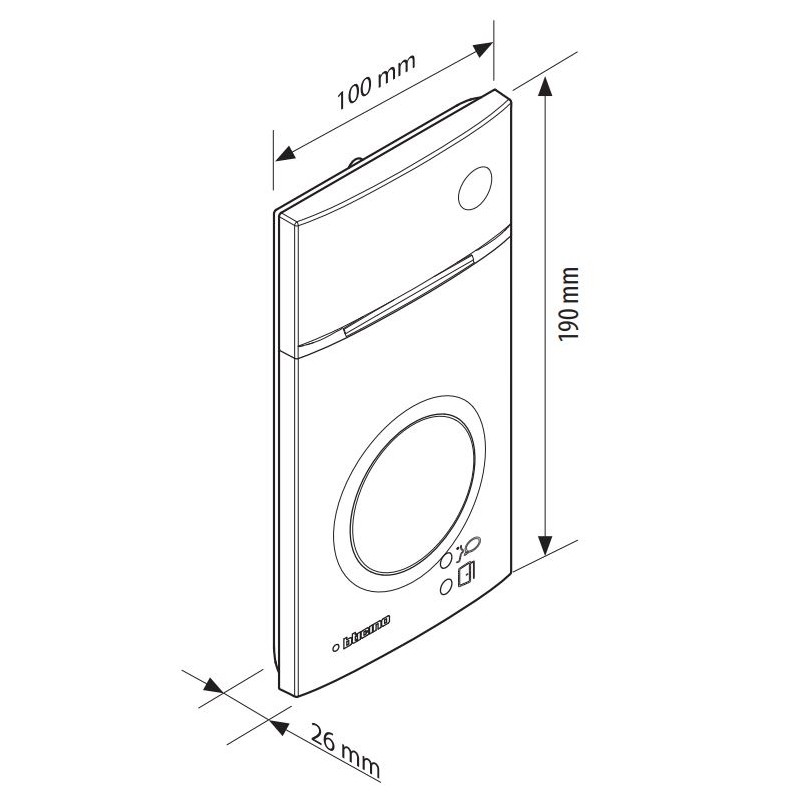

Linea 3000 wall-mounted video door entry panel with RFID reader black finish

2-WIRE wall-mounted button panel with zamak front, wide-angle color camera and proximity reader. White LEDs for field illumination in low light conditions.

Configurable for single-family or two-family installations. Allows the opening of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max).

Handles a maximum number of 20 badges (125 KHz) for opening the electric lock (including the system management badge). Illumination of name tag with white LED.

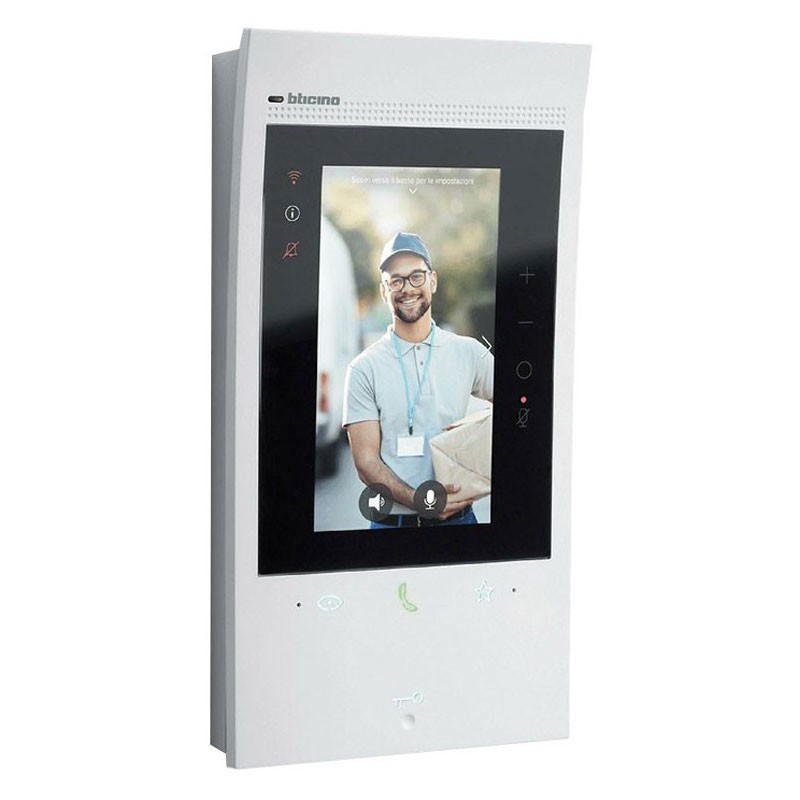

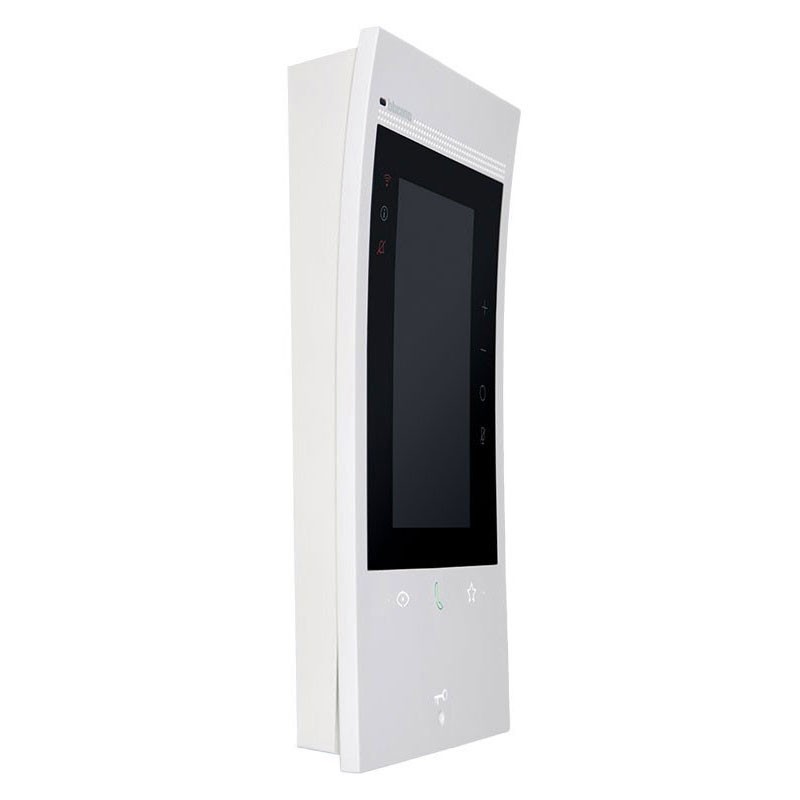

2-Wire / Wi-Fi connected video intercom Classe 300EOS white with integrated Alexa voice assistant

2-Wire/Wi-Fi handsfree connected video door phone with built-in Amazon Alexa® voice assistant*, 5" vertical LCD touch screen display and video answering machine. And equipped with physical key for lock opening and capacitive keys for operating the main video door phone functions:

• hands-free communication

• door station activation/camera cycling and favorite key (configurable to activate the quick actions that the user uses most frequently e.g. additional locks, stair light control, intercom,).



There are indicator LEDs for: connection status to WiFi network, info / notifications and call mute.

It is possible to interact with the built-in Alexa® voice assistant via dedicated capacitive keys or by voice to activate video door phone functions, smart home, routines, reminders etc.

Via the touch display, it is possible to access the notification list, favorite video door phone, security and smart home commands. Smart Home function panels are also available on the Home Page, to simultaneously control all lights, blinds and fancoils in the house or individual rooms, manage thermostats and view energy consumption in the house. Possibility of voice communication with concierge switchboard if present in the system upon specific call.

Flexible Installation and Smart Management

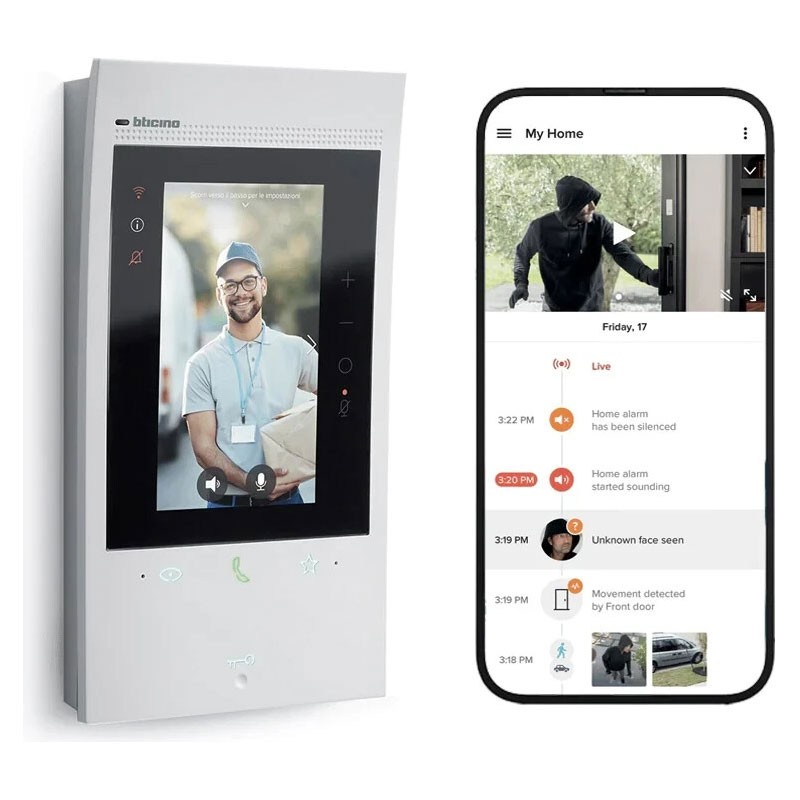

The device needs to be configured by physical input of configurators or from menus taking advantage of a greater possibility of customization of functions and associated texts. Thanks to the Wi-Fi connection, it is possible to associate the video door phone with the Home + SecurityApp (available for Android and iOS). LApp allows you to use the main functions of the video door phone (call reception, lock opening, event timeline display and door station activation/camera cycling). Through the Home + Security lApp it is also possible to manage the products of Netatmo's Security offer (outdoor and indoor cameras, door and window sensors, indoor siren, smoke detector). This allows you to quickly and easily create a Smart security system.

The device also allows for the implementation and management of MyHOME BUS SCS solutions without the addition of dedicated gateways. The installer will be able to configure the MyHOME system with the Home + Project App. The user will be able to manage his home: remotely with the Home + Control App, from display interface and with Alexa® and Google® voice commands.

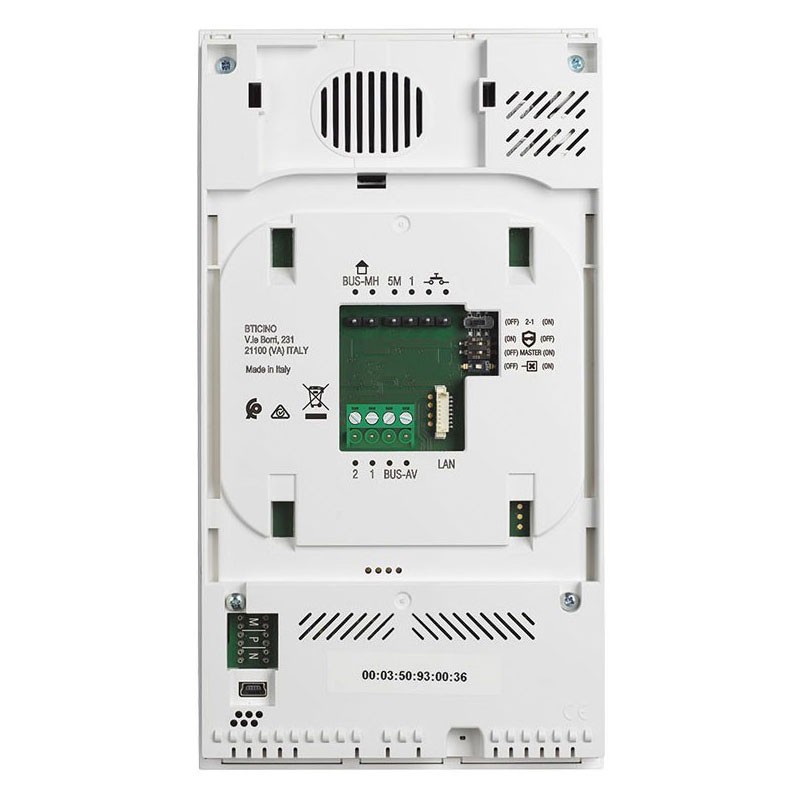

Wall-mounted installation with bracket included. Possibility of Wi-Fi connection or via RJ45 Ethernet cable using dedicated accessory 344844.

Prncipal functions of the Bticino Classe 300EOS video intercom

• Video intercom answering machine: The video door phone answering machine function (if activated) allows you to view a video message left by a visitor. It is also possible to record an audio message to be played back at the door station following an unanswered call

• Intercom function: The intercom function allows up to 3 minutes of communication between video door phones in the same apartment/different apartments

• Door Status Function: This function signals the status of the lock (only if the system is prepared by means of a special actuator). If it is open the lock led flashes, if it is closed it remains off. The function cannot be activated at the same time as the Studio Professionale function

• Professional Study Function: The Professional Study function allows you to set the automatic opening of the lock in case of a call from the Door Station, you cannot activate it at the same time as the Door Status and Secure Lock function. Flashing of the lock button indicates that the function is activated

• MyHOME Smart Home Functions: MyHOME function panels allow you to simultaneously control all lights, blinds and fancoils in the house or individual rooms. In addition, you can manage thermostats and view the home's energy consumption.



MyHome functions:

• Light: Turn on/off and adjust intensity of a light

• Shutter: Adjust the opening and closing of shutters

• Towel warmer: Turn on/off a towel warmer

• Roller shutter: Adjust the opening and closing of shutters, blinds and garage doors

• Colored light: If there is a colored light on the system (Philips Hue*, Lifx* Enttec ODE* colored LED bulbs), you can adjust the light intensity, and view the status

• Socket: Control the load connected to a controlled socket

• Lock: Opens a lock

• Scenarios: Runs the scenarios set by the installer.

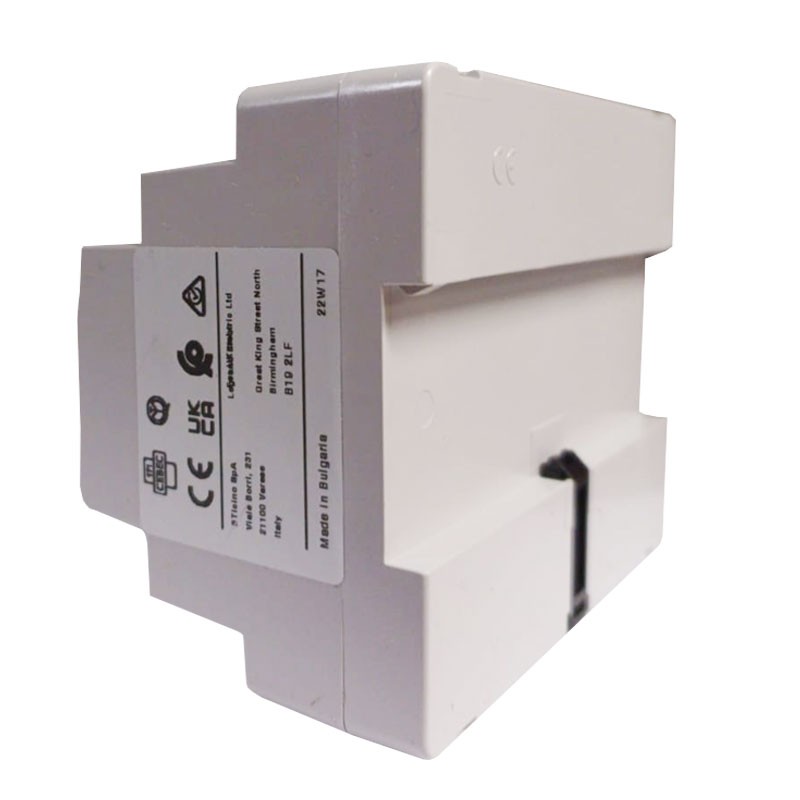

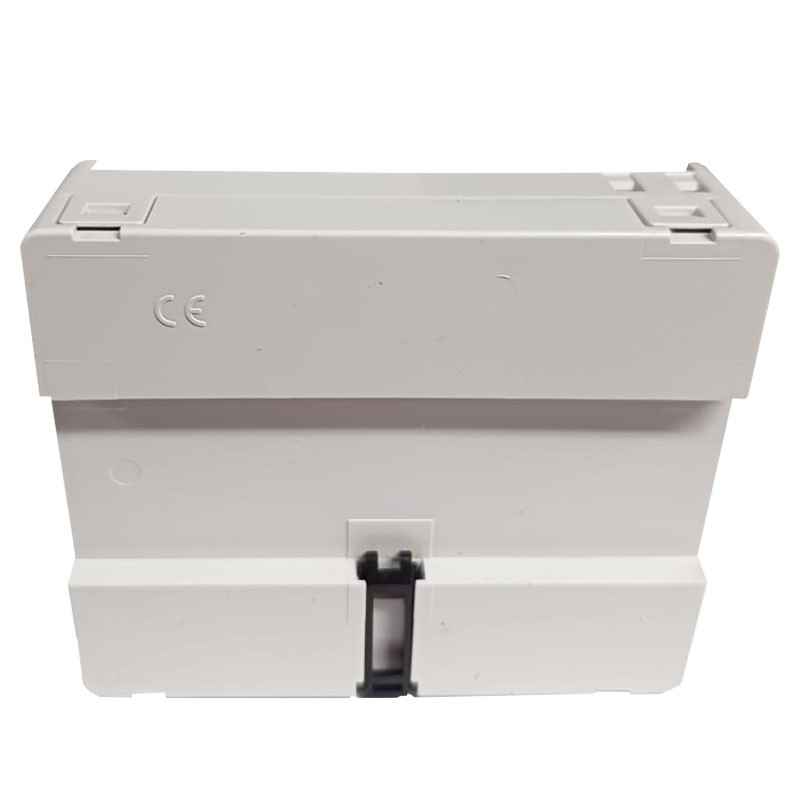

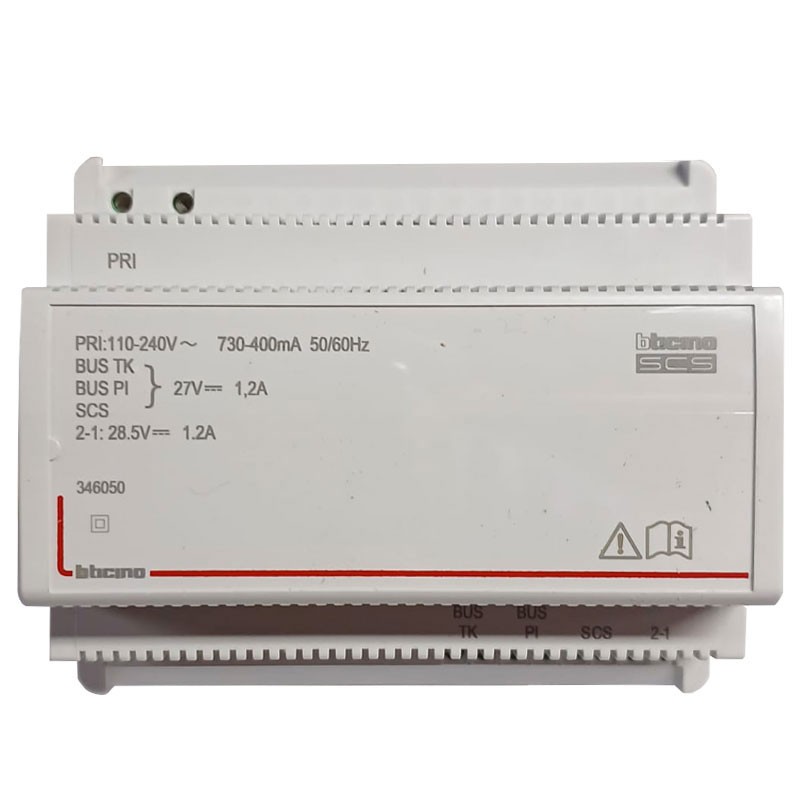

BUS-SCS power supply for 2-wire audio and video systems 346050
