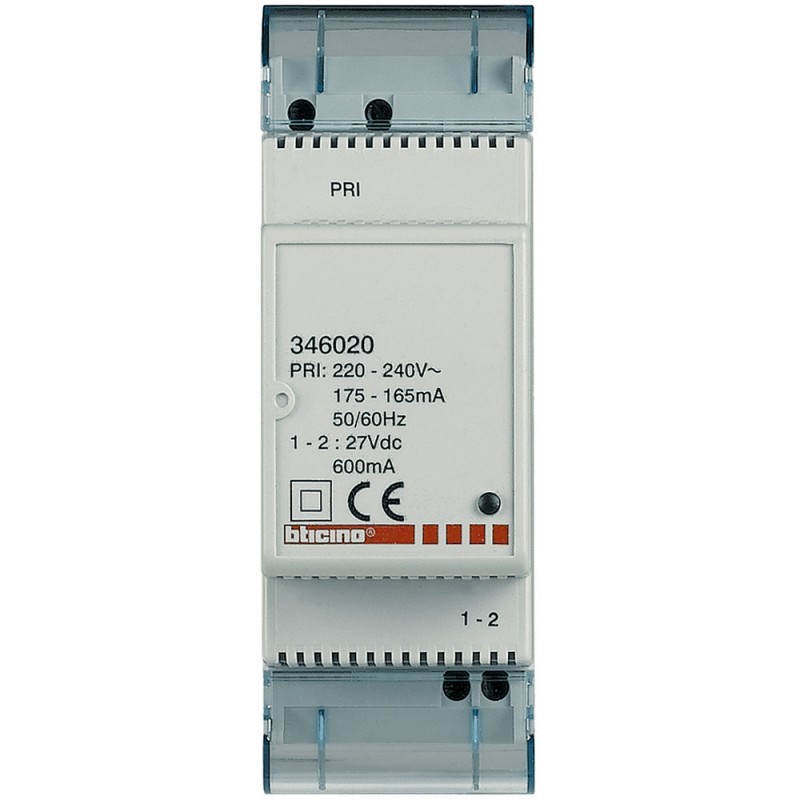

Bticino 2M DIN Supplementary Power Supply for BUS-SCS Systems 346020
BTI 346020
8012199955933
Bticino Supplementary Power Supply for BUS-SCS systems, 27 Vdc, 600 mA. Ideal for locally powering indoor/outdoor posts and MyHome accessories, with the following features:
-
Output voltage: 27 Vdc ± 100 mV
-
Maximum output current: 600 mA
-
Number of modules: 2 DIN
-
Power supply: 230 Vac - 50/60 Hz
-
Compatible with: SCS-BUS and MyHome systems
-
Overload and short-circuit protection on PRI side
€97.53
Items Available: 54
: 2
Bticino power supply reliable solution for local power supply
The Bticino supplementary power supply is designed to provide local power to devices on video or home automation systems with BUS-SCS technology. With a stabilized 27 Vdc output and a maximum current of 600 mA, it ensures continuity and reliability even in complex systems.
Perfect for video door phone and home automation systems
The device is compatible with Bticino indoor and outdoor stations, as well as numerous accessories of Communication and MyHome systems such as:
-
Web server
-
Audio/video servers
-
Scenario programmers
-
2-Wire/IP interface
-
Ethernet switches
-
Modem/router
-
TV Hub
Simple and safe installation
With its modular 2-DIN housing, installation inside the electrical cabinet is quick and tidy. The power supply requires no configuration, and has a built-in non-replaceable fuse on the primary side for effective protection against overloads and short circuits.
Double-insulation SELV device
The product complies with the highest safety standards, being classified as a double-insulated SELV device. Ideal for civil and commercial installations, it enables a safe, stable and efficient power supply.
Technical Specifications Bticino Power Supply
| System type | BUS-SCS / MyHome |
|---|---|
| PRI input voltage | 220 - 240 Vac |
| PRI input current | 180 - 190 mA |
| Output voltage | 27 Vdc ± 100 mV |
| Output current | 0 - 0,6 A |
| Rated power | 16,2 W |
| Power dissipation (max) | 3,8 W |
| Power consumption (at full load) | 20 W max |
| Efficiency | 80% typ. |
| Standby power | < 1 W |
| Operating temperature | 5 °C to 40 °C |
| Protection | T2A 250V fuse (not replaceable) |
| DIN modules | 2 |
| Insulation grade | SELV |
| Connection | 2 wires / 2Wires |
