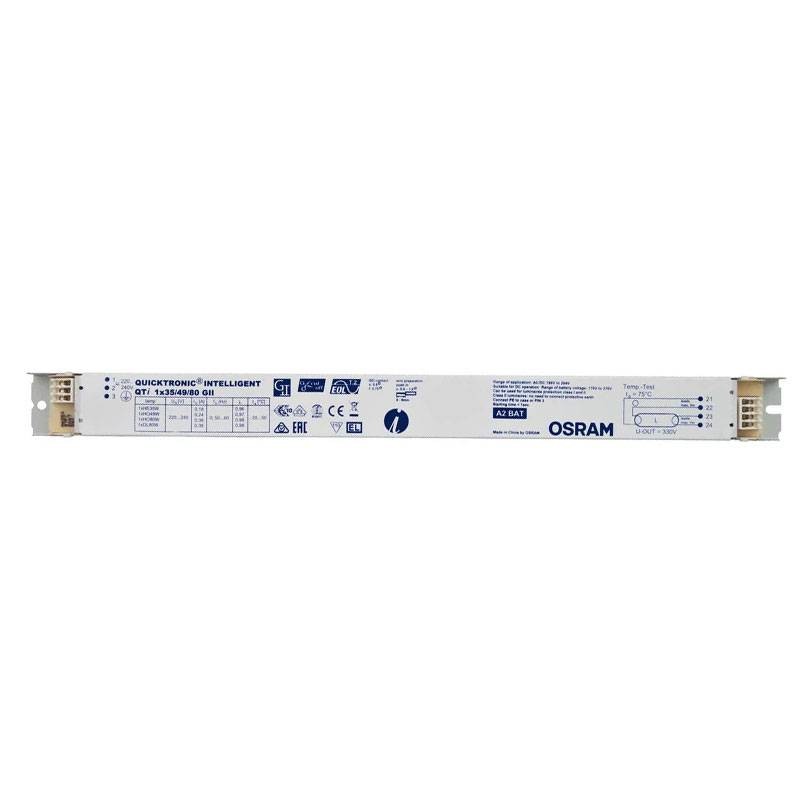

Ledvance Osram Power Supply QTI 1x35/49/80 90W 220/240V QTI1X3580N

Osram
Osram
LDV QTI1X3580N 4008321383372

Ledvance Osram QTI Led Power Supply is a reliable, high-performance solution for the operation of T5 and T8 fluorescent lamps. Designed for durability, energy efficiency, and compatibility with numerous applications, it is ideal for modernizing existing systems or building new ones, with the following features:

  • Power: 90 watts

  • Supply voltage: 220/240 V

  • Output voltage: 330 V

  • Frequent trouble-free ignitions: no adverse effects due to advanced design

  • Automatic restart: quick activation after lamp replacement

  • Perfect with motion sensors: optimal ignition in automated applications

  • Certified safety: complies with VDE/VDE EMC, EN 60929 and EN 61347-2-3 standards

  • Automatic shutdown: detection and shutdown of defective or end-of-life lamps

  • Non-dimmable

  • Degree of protection: IP20

  • non dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Ledvance Osram Power Supply QTI 1x35/49/80 90W 220/240V QTI1X3580N
    €61.77
    €61.77

    €61.77
    Tax included
    Calculate shipping cost
    Items Available: 14
    Further availability of the manufacturer
    €61.77

    Buy it within and receive it from Tuesday, 10 February
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Ledvance Osram Power Supply QTI 1x35/49/80 90W 220/240V

    Efficiency and reliability

    With advanced cutting technology, the QTI 1x35/49/80 power supply ensures outstanding performance with low power consumption. Optimal filament preheating reduces stress on the lamps, extending lamp life and improving reliability.

    Versatile applications

    This ballast is suitable for a wide range of professional and industrial applications:

    • Emergency lighting: compliant with EN 50172/DIN VDE 0108-100 and operating on direct current

    • Offices and corridors: ideal for office environments with frequent switching on

    • Sports arenas and factories: supports installations in large spaces

    • Public and industrial buildings: offers stable and reliable performance

    • Modernization: perfect solution for upgrading existing lighting installations

    Suitable for both Class I and Class II luminaires, this power supply easily integrates into a variety of systems

    Simple and safe installation

    The power supply is compatible with a supply voltage of 220 to 240 V and frequencies of 0 Hz, 50 Hz or 60 Hz, ensuring stable operation even under changing conditions. Safety is guaranteed by European standards, making installation safe and efficient.


    Electrical Data

    Power 90 watts
    Rated voltage 220/240 V
    Input Voltage 198/264 V
    DC voltage (dc) 176/276 V
    Trigger current 53 A
    Frequency 50/60 Hz
    Ambient temperature -20/+50 degrees
    Dimmable No
    Degree of protection IP20
    Energy efficiency class A2

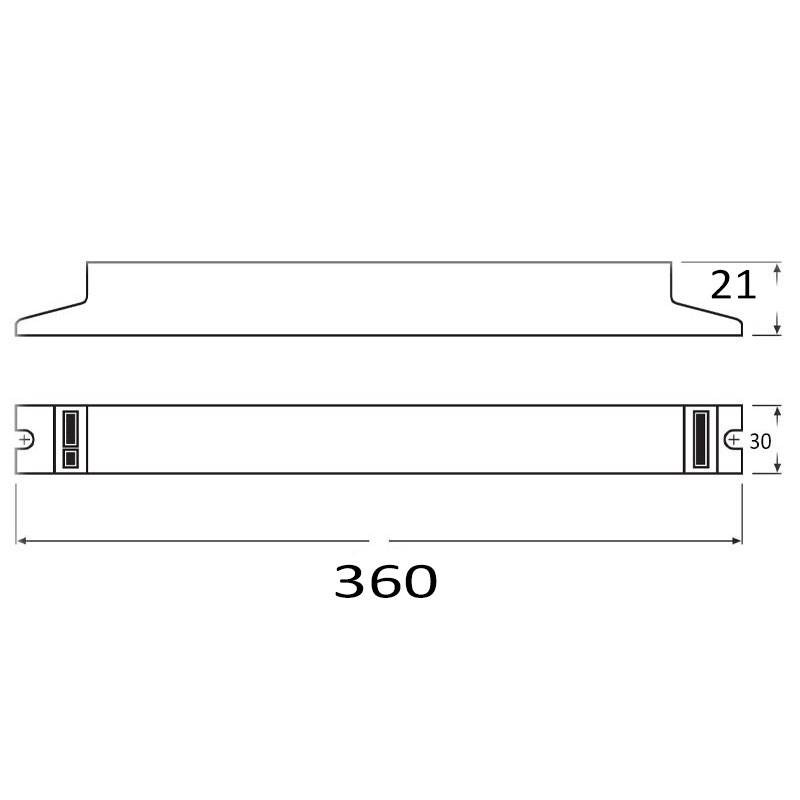

    Dimensions

    Length 360 mm
    Width 30 mm
    Height 21 mm

    There are no reviews

    Data sheet

    Type:
    Power supplies
    Degree of protection:
    IP20
    Watts:
    51 to 100W
    Output voltage:
    330 V
    Input voltage:
    220/240V
