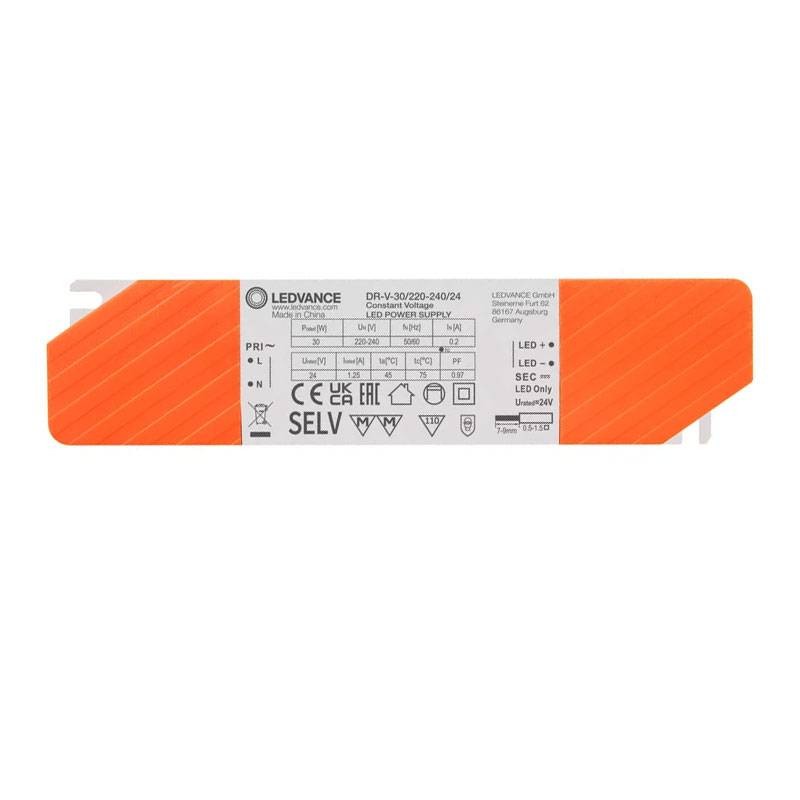

Osram Ledvance Power Supply for LED 30W 24V IP20 DRVAL3024G3
LDV DRVAL3024G3
4058075835856
The Osram Ledvance DRVAL3024G3 power supply is the ideal solution for powering 24V LED strips, providing efficient, safe and durable lighting. With an output of 30W, it is perfect for various applications, such as recessed lighting in confined spaces or wallwasher effects in rooms such as living rooms, dining rooms, bedrooms, and entryways. The compact design and IP20 protection make it suitable for indoor installations, both residential and commercial:
-
Power: 30W
-
Supply voltage: 220/240V
-
Type of protection: IP20
-
Service life: up to 35,000 hours
-
Operation: Frequency of 50/60 Hz
-
Safety voltage: Operates with less than 60V (SELV)
-
Protection: Overtemperature, overload, short circuit and open circuit
€11.57
Items Available: 41
: 25
Osram Ledvance Power Supply 00W 24V DRVAL3024G3:
Technical Specifications
Electrical Data
| Feature | Detail |
|---|---|
| Rated Power | 30,00 W |
| Rated output power | 30 W |
| Rated voltage | 220/240 V |
| Nominal output voltage | 24 V |
| Input voltage range | 220/240 V |
| AC input voltage | 198/264 V |
| U-OUT (working voltage) | 24 volts |
| Type of current | Continuous current |
| Rated current | 200mA |
| Rated output current | 1250mA |
| Inrush current | 18.6 Un |
| Output ripple current (120 Hz) | < 1 % |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 8% |
| Power factor | 0,97 |
| ECG efficiency | 89% |
| Device power loss | 2,2 W |
| Maximum number of ECGs on the circuit breaker 10 A (B) | 31 |
| Maximum number of ECGs on the circuit breaker 16 A (B) | 49 |
| Maximum number of ECGs on the circuit breaker 25 A (B) | 77 |
| Overvoltage capacity (LN) | 1 kilovolt |
| Galvanic isolation | SELV |
Dimensions and Weight
| Feature | Detail |
|---|---|
| Length | 162.00 millimeters |
| Distance between mounting holes, length | 151.00 millimeters |
| Width | 40.00 millimeters |
| Height | 29.00 millimeters |
| Cable cross section, input side | 0.751.5 mm² |
| Cable cross-sectional area, output side | 0.51.5 mm² |
| Pre-wired | NO |
| Wire preparation length, input side | 79 millimeters |
| Wire preparation length, output side | 79 millimeters |
| Product weight | 115,00 g |
Colors and Materials
| Feature | Detail |
|---|---|
| Product color | White |
| Enclosure Material | Plastic |
| Body Material | Plastic |
Temperature and Operating Conditions
| Feature | Detail |
|---|---|
| Ambient temperature range | -20+45 °C |
| Maximum temperature at test point tc | 75 °C |
| Maximum temperature of the housing at failure | 110 °C |
| Operating temperature range | -20+45 °C |
| Allowable relative humidity during operation | 20/90 % |
| Maximum time at 90% relative humidity | 56 days/year |
Duration
| Feature | Detail |
|---|---|
| ECG lifetime | 35000 hours |
Capacity
| Feature | Detail |
|---|---|
| Dimmable | NO |
| Dimming interface | Not dimmable |
| Overheating protection | YES |
| Overload protection | YES |
| Short-circuit protection | YES |
| Suitable for equipment with protection class | Io, II |
| Suitable for emergency lighting | NO |
| Connection type, output side | Screwless terminal |
Certificates and Standards
| Feature | Detail |
|---|---|
| Approval Marks | CE, UKCA, EAC |
| Standard | According to EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 62384 |
| Protection class | Io |
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 21 to 30W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
