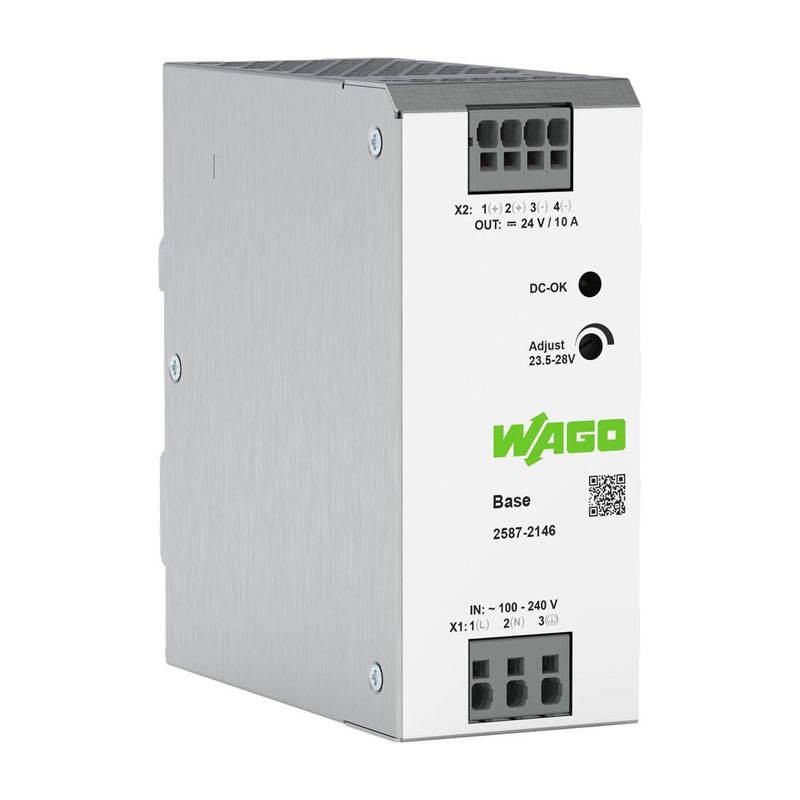

Wago Switching Power Supply 10A 1 Phase 24DC LED DC-OK 2587-2146
WAG 2587-2146
4066966703177
Switching power supply Wago 24 VDC 10A, 240 W, with LED DC-OK, push-in connection, active PFC and SELV output. Reliable for electrical panels, automation, and industrial applications.
-
Switching power supply 24 VDC 10 A 240 W
-
Input voltage 1~100240 VAC
-
Active Power Factor Correction (PFC)
-
Optical indication LED DC-OK
-
SELV output isolated according to EN 62368-1 / UL 61010-1
-
Quick push-in connection
-
Operation in series or parallel
-
Natural convection cooling
-
Adjustable output voltage 23.528 VDC
-
Overload protection with auto-restart
€62.66
Items Available: 10
: 9
High-performance Wago switching power supply
The Wago 2587-2146 is a professional switching power supply designed to provide a stable continuous voltage of 24 VDC, with a nominal current of 10 A and a total power of 240 W. It is an essential component for electrical panels, industrial machines, automation systems, PLCs, I/O modules, and any equipment requiring reliable and safe power supply.
The compact design, quick wiring, and superior performance make it an ideal choice for installers and system integrators.
Guaranteed reliability with active PFC
Unlike simpler models, this power supply integrates an active power factor corrector (PFC), which optimizes current absorption from the network by reducing disturbances, losses, and non-linear loads.
The advantages of active PFC include:
-
better energy efficiency,
-
less interference on the network,
-
greater power stability,
-
compliance with international standards
Quiet operation with natural cooling
The power supply does not use fans: cooling occurs entirely through natural convection, ensuring:
-
absence of noise,
-
reduced maintenance,
-
longer component lifespan,
-
reliable operation even in industrial environments.
Horizontal mounting maximizes cooling efficiency and ensures consistent performance over time.

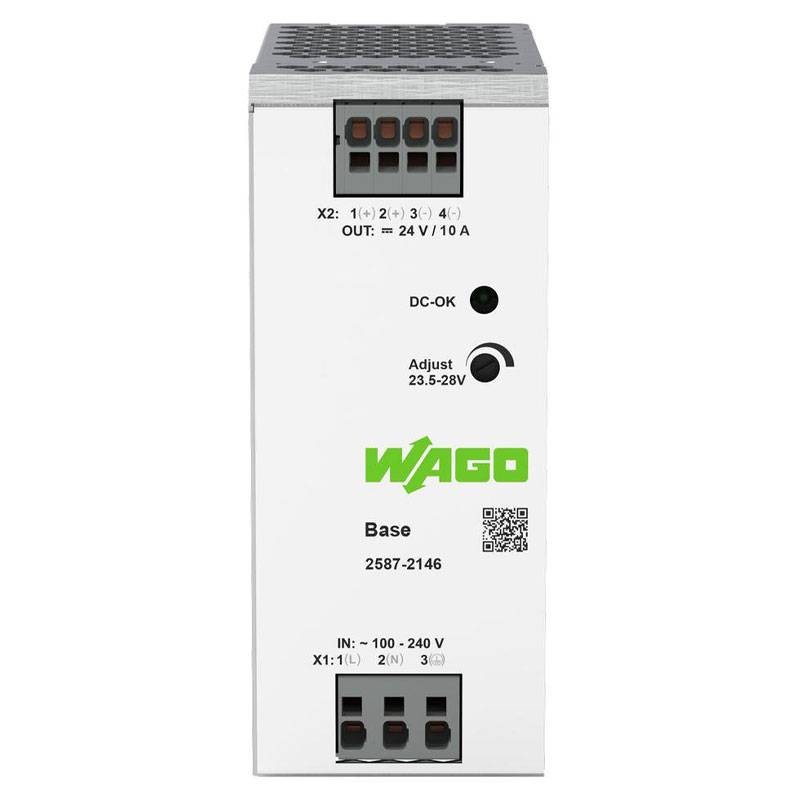

Push-in connection and immediate status indication
The push-in connection technology allows for quick and secure wiring without tools, reducing installation time and costs.
The front DC-OK LED provides immediate indication of the output voltage status, simplifying diagnostics and maintenance.
Precise and stable electrical performance
The adjustable output voltage from 23.5 to 28 VDC allows for compensation of cable drops or adjustment of power supply to specific devices. The 100 mV ripple ensures a clean power supply, essential for sensitive electronic equipment.
The protection logic with automatic shutdown and restart intervenes in case of short circuit or overload, preserving both the power supply and the load. This function is useful in industrial plants where operational continuity is essential.
Series and parallel operation
The Wago 2587-2146 is designed to work:
-
in parallel, increasing the available current;
-
in series, doubling the output voltage when necessary.
This flexibility is perfect for modular installations and complex systems

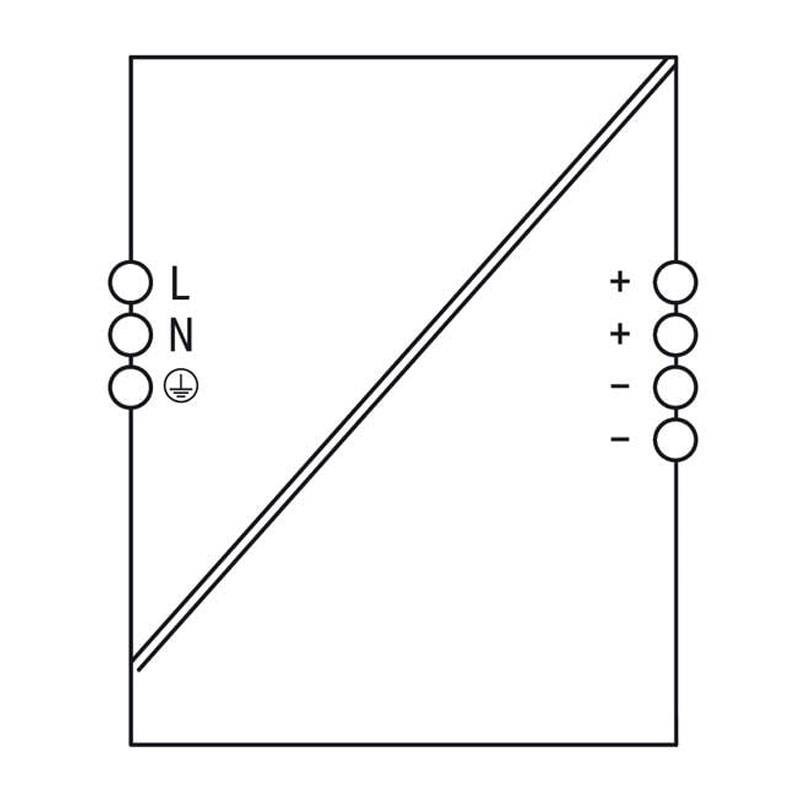

INPUT
| Phases | 1 |
| Nominal input voltage Ui nom | 1 x 100 … 240 V AC |
| Input voltage range | 1 x 90 … 264 VAC (Derating −1 %/V below 100 VAC) |
| Nominal frequency | 50 / 60 Hz |
| Input current Ii | ≤ 3.5 A |
| Inrush current | ≤ 15 A (at 230 V AC / 25 °C) |
| Power factor correction (PFC) | Active |
| Network drop compensation | ≥ 22 ms (230 V AC) |
OUTPUT
| Nominal output voltage | 24 V DC (SELV) |
| Output voltage range | 23.5 … 28 V DC (adjustable) |
| Default setting | 24 V DC |
| Nominal output current | 10 A |
| Nominal power | 240 W |
| Deviation | ≤ 1% |
| Residual ripple | ≤ 100 mV (Peak-to-peak) |
| Overload behavior | Automatic shutdown and restart |
SIGNALING AND COMMUNICATION
| Signaling | Indicazione ottica DC OK |
LOSSES AND EFFICIENCY
| Dissipated power | ≤ 5 W (230 VAC, no load); ≤ 24.6 W (230 V AC, full load) |
| Efficiency (typ.) | 91% |
SAFETY AND PROTECTION
| Insulation voltage pri/sec | 3510 V AC |
| Insulation voltage pri/earth | 2210 V AC |
| Protection class | IP20 — Class I |
| Overvoltage category | III (≤ 2000 m); II (> 2000 m) |
| Emission level | 2 |
| Short-circuit protected | Yes |
| Open circuit proof | Yes |
| Parallel operation | Yes |
| Series operation | Yes |
| MTBF | > 1,000,000 h (25 °C, IEC 61709; SN 29500) |
CONNECTION
| Connection technique | Push-in cage clamp |
| WAGO connector | Series 2624 |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Flexible conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| With insulated ferrule | 0.25 … 2.5 mm² |
| With non-insulated ferrule | 0.25 … 2.5 mm² |
| Stripping length | 10 … 12 mm |
GEOMETRIC DATA
| Width | 52 mm / 2.05" |
| Height | 125 mm / 4.92" |
| Depth | 117 mm / 4.61" |
MECHANICAL DATA
| Mounting | DIN 35 rail |
MATERIAL DATA
| Weight | 802 g |
ENVIRONMENTAL REQUIREMENTS
| Operating temperature | -30 … +70 °C (start tested at -40 °C) |
| Storage temperature | -40 … +85 °C |
| Relative humidity | 5 … 96% (non-condensing) |
| Power derating | -4.8 W/°C above 45 °C (<200 V); above 50 °C (≥200 V) |
| Climatic category | 3K3 (EN 60721) |
| Operating altitude | Up to 5000 m |
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Amps: 10A
