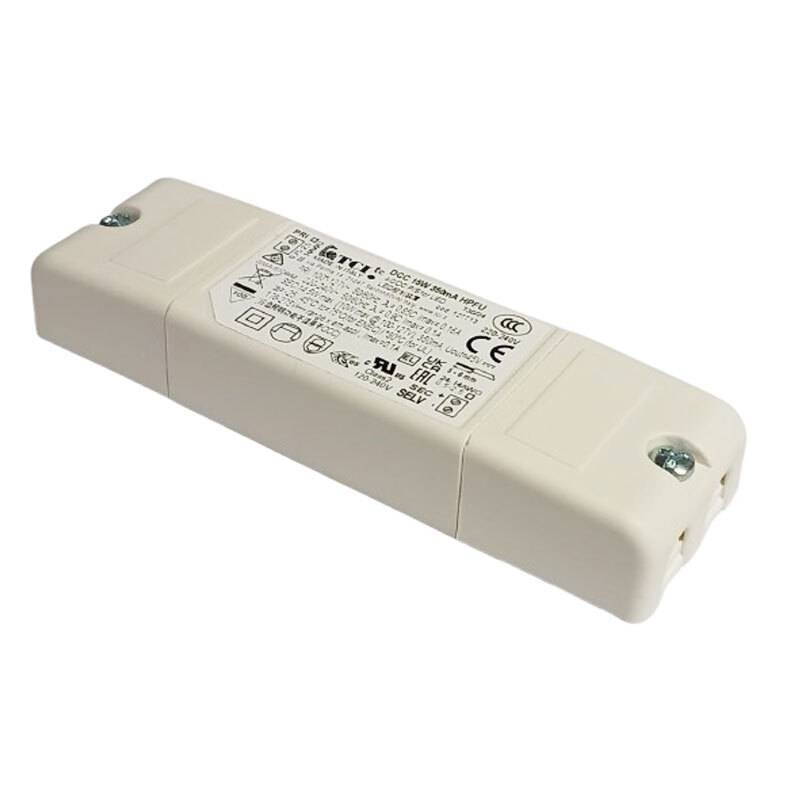

TCI DCC 15W 350mA IP20 LED Power Supply 127713

Tci Led
Tci Led
TCI 127713 8010703871076

The TCI DCC 15W 350mA HPFU LED power supply (127713) is designed for optimum performance in a wide range of applications, offering high energy efficiency and advanced protection. This compact power supply is ideal for LED lighting installations, with full protection against overvoltage and overload, making it perfect for indoor use:

  • Power rating: 15W

  • Output current: 350mA

  • Input voltage: 220-240V

  • Protection: Thermal, short-circuit, overload, extra-mains voltage

  • Type of protection: IP20

  • Certifications: ENEC, UL (class 2), CCC, RCM, CE, EAC, UKCA

  • Dimensions: 115 x 19 x 34 mm

  • Weight: 70g

  • Cable cross-section: Up to 2.5 mm² / AWG13

  • Cutting hole diameter: 40 mm

  • non dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    TCI DCC 15W 350mA IP20 LED Power Supply 127713
    €12.96
    €12.96

    €12.96
    Tax included
    Calculate shipping cost
    Items Available: 45
    Further availability of the manufacturer
    €12.96

    Buy it within and receive it from Friday, 6 February
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    TCI DCC 15W 350mA LED Power Supply 127713

    The TCI DCC 15W 350mA HPFU is a high-quality LED power supply that offers an ideal solution for indoor LED lighting. With its compact design and IP20-protected enclosure, it is suitable for installation in tight spaces while providing high reliability and long-term performance. This power supply is equipped with a thermal, short-circuit and overload protection system, ensuring the safety and protection of connected devices.

    Versatility and applications

    The TCI DCC 15W power supply is perfect for LED lighting systems in residential, commercial and industrial environments. Thanks to its protection function against extra mains voltages, it can be used in unstable mains conditions, ensuring proper operation of LED fixtures. Its cable cross-section of up to 2.5 mm² and minimum cutting hole diameter of 40 mm make it extremely versatile for various applications.

    Protections and safety

    The power supply is equipped with thermal protection, overload protection, and short-circuit protection, ensuring that the LED lighting system operates safely even under conditions of high energy demand. The active pfc (pf>0.9) also contributes to energy conservation, minimizing losses.

    Technical Characteristics


    Electrical Data

    FeatureDetail
    Output power 14,5 W
    Output voltage 241.5 V DC
    Output current 350 mA constant
    Output voltage 45 V
    Frequency 50-60 Hz
    AC usage voltage 90 ÷ 264 V


    Dimensions and Weight

    FeatureDetail

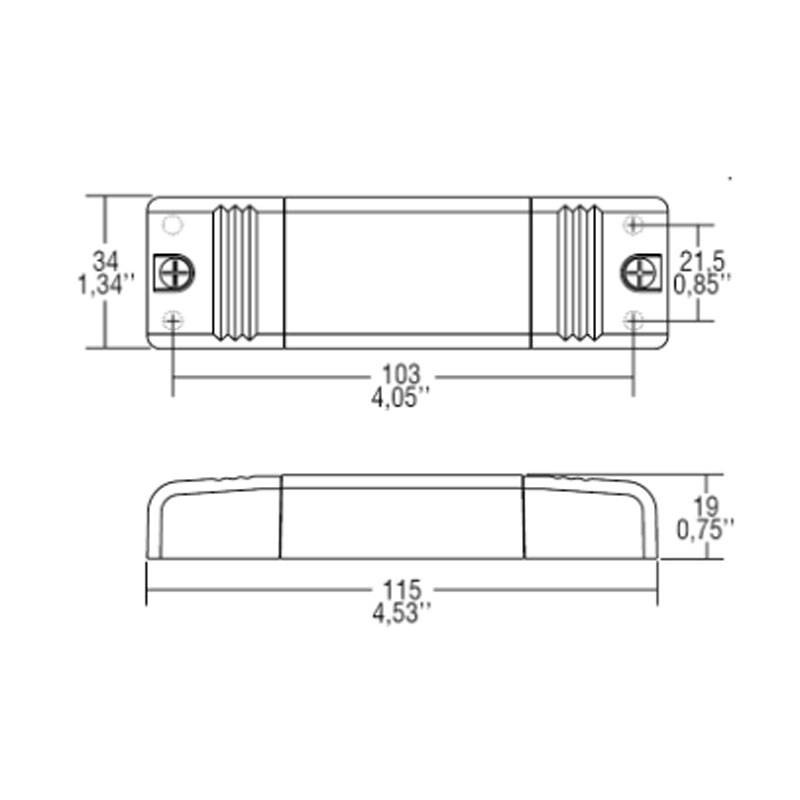

    Measurements 115 x 19 x 34 mm


    Colors and Materials

    FeatureDetail
    Casing Plastic
    Degree of Protection IP20


    Capacity and Adjustment

    FeatureDetail
    Adjustment Non-dimmable

    There are no reviews

    Data sheet

    Type:
    Power supplies
    Degree of protection:
    IP20
    Watts:
    From 1 to 20W
    Output voltage:
    41.5 V
    Input voltage:
    220/240V
