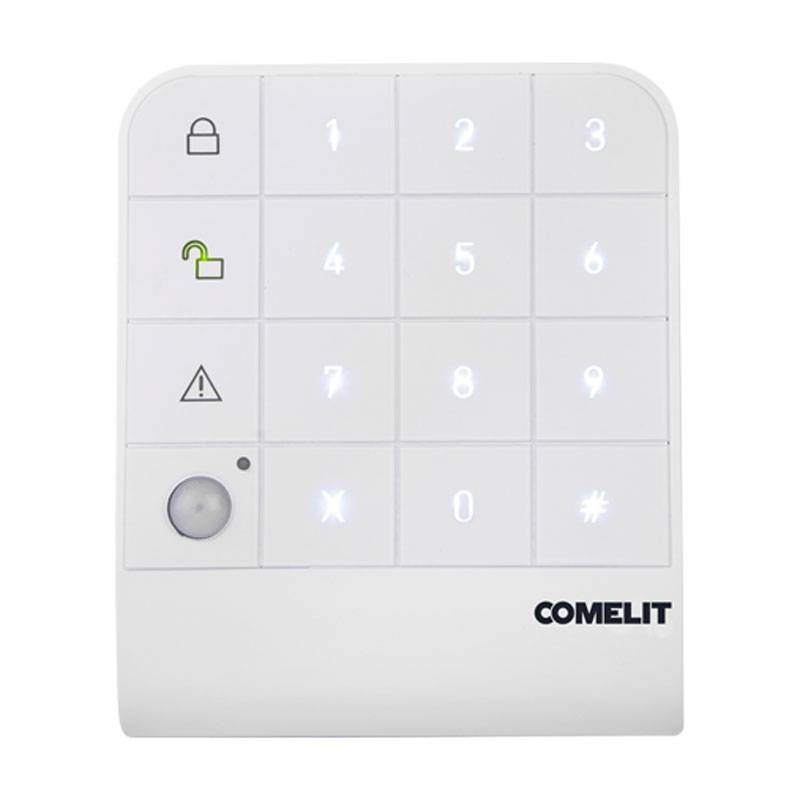

Comelit radio keypad for Nexus control panels RFKP
COE RFKP
8023903466683
The Comelit RFKP radio keypad is a bidirectional wireless device for the complete management of Comelit Nexus alarm panels, with soft-touch controls, proximity sensor, and low-consumption automatic lighting.
-
Compatibility: Comelit Nexus series alarm panels
-
Connection type: Bidirectional wireless
-
Keypad type: Capacitive soft-touch
-
Light signals: 4 LEDs (system disarmed, system armed, fault, alarm)
-
Sound signals: Integrated buzzer
-
Integrated sensors: Proximity activates the keypad when the user passes by - Ambient light, automatically adjusts backlighting
-
Security: Tamper-proof
-
Power supply: 2 CR123A lithium batteries
-
Autonomy: Optimized thanks to automatic lighting control
-
Dimensions: 102 × 84 × 25 mm
-
Installation: Wall-mounted, without wiring
-
Design: Compact, modern, and low-profile
€135.95
Items Available: 7
: 2
Frequently bought together
Comelit RFKP radio keypad for Nexus control panels
The Comelit RFKP is a wireless soft-touch keypad designed to intuitively and securely control Comelit Nexus control panels, offering maximum ease of use and an elegant design suitable for any home or professional environment. Thanks to bidirectional radio technology, communication with the control panel is always reliable and constant, with visual and acoustic confirmation of operations performed (arming, disarming, alarm, anomalies).
Smart features
-
Proximity sensor: automatically activates the keypad when the user approaches, reducing energy consumption
-
Light sensor: adjusts the automatic backlighting of the keys based on ambient light, improving visibility in all conditions
-
Status LEDs: clearly indicate the condition of the system (armed, disarmed, anomaly or alarm)
-
Acoustic signals: via integrated buzzer, alerts the user of events or programming errors
-
Anti-tamper tamper: protects the keypad from unauthorized removal or opening attempts
Design and installation
With a sober and modern design, the RFKP keypad integrates perfectly into any residential or professional context. The installation is completely wireless, avoiding masonry work or wiring, and the power supply is provided by two easily replaceable CR123A batteries. The intelligent management of consumption, combined with the integrated sensors, ensures high operational autonomy and reduced maintenance.
Technical specifications
| MAIN FEATURES | |
|---|---|
| Wireless technology | Bidirectional, BeaconPlus |
| Frequency band | 868.05 ÷ 869.95 MHz |
| Modulation | GFSK |
| Open field range | 500 m |
| Keypad type | Soft-touch with micro-switch |
| Number of keys | 15 (numeric keypad, cancel, hash, arm, disarm, non-pressable fault icon) |
| Tamper | Anti-tampering / Anti-tear |
| Alarm activation | Yes |
| Internal buzzer | Yes |
| Light sensor | Yes |
| Compatible expansions / Control panels | RFNEXUS |
| HARDWARE FEATURES | |
| Installation | Wall-mounted |
| Cover material | Plastic |
| Colour | White |
| Operating temperature | -10 ÷ +40 °C |
| Height | 102 mm |
| Width | 84 mm |
| Depth | 25 mm |
| Weight | 200 g |
| ELECTRICAL FEATURES | |
| Low voltage threshold | 5.7 V |
| BATTERIES | |
| Number of batteries | 2 |
| Battery type | CR123A |
| Comelit battery code | 30007622 |
There are no reviews
Data sheet
- Type: Keyboards
- System: Wireless
