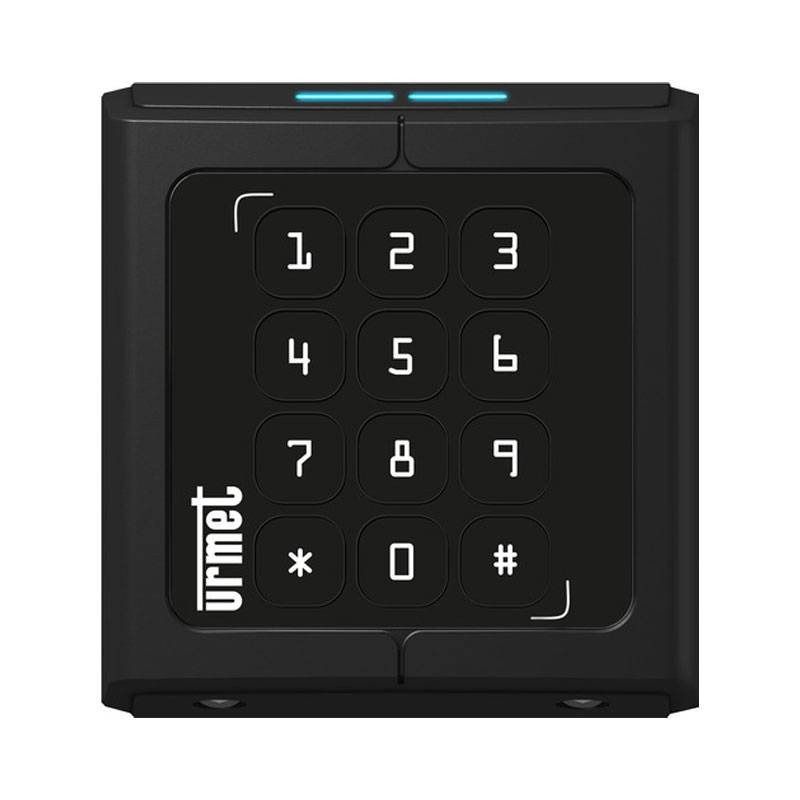

Urmet 1088/46 Mifare Plus Proximity Reader Keypad
UTD 1088/46
8021156075553
Urmet 1088/46 keypad with Mifare Plus reader, Bluetooth and 2-wire connection is ideal for Ipassan and Transit+ systems and allows access by code, tag or smartphone.
-
Compatible with Ipassan and Transit+ only.
-
Mifare and Mifare Plus proximity reader
-
Integrated Bluetooth interface (Ipassan only)
-
Access via code, tag or K-App app
-
2-wire connection up to 100 m
-
IP65 IK10 degree of protection
-
Backlit keypad and status LEDs
€265.53
Items Available: 23
: 4
Frequently bought together
Advanced access control keypad for Ipassan and Transit+ systems.
The Urmet 1088/46 proximity reader keypad is a professional solution for access control in Transit+ and Ipassan systems. The device allows the opening of gates via numeric code, Mifare/Mifare Plus RFID tags, or via smartphone via Bluetooth, ensuring versatility and security in any context.
Access via code, badge or smartphone
The reader is compatible with URMET keys, cards and remote controls and supports the new Mifare Plus generation, increasing the security of access credentials. In addition, thanks to the Bluetooth interface, when used with Ipassan, access can also be managed through the K-App app for Android and iOS, turning your smartphone into a digital key.
Built-in status LEDs and buzzer
The module is equipped with three indicator LEDs:
-
Blue for operational unit
-
Green for access granted
-
Red for access denied
Combined with the built-in buzzer, they provide immediate visual and audible feedback that is useful for the user and for diagnostics.
Easy installation and certified robustness
The device connects via 2-wire bus and can be installed up to 100 meters from the control panel, making it perfect even for distributed installations. Its compact design (85x90x25 mm) and IP65 rating against dust and water, along with IK10 rating against shock, make it an ideal choice even in outdoor or high-traffic environments.
Technical features
| Feature | Value |
|---|---|
| Model | Urmet 1088/46 |
| Type | Keyboard with proximity reader and Bluetooth |
| System compatibility | Transit+, Ipassan |
| Technologies supported | Mifare, Mifare Plus |
| Communication and connections | |
| Link | 2 wires - maximum distance 100 m |
| BUS outputs | 2-SMART (2-wire) |
| Supply voltage | 12 V supplied by the controller via BUS 2-wire |
| Bluetooth interface | Yes (only for Ipassan system) |
| Compatible app | K-App (iOS and Android) |
| Reading performance | |
| MIFARE Classic reading distance | Up to 40 mm |
| Mifare Plus reading distance | Up to 20 mm |
| BLE (Bluetooth) reading distance | Up to 15 m (variable depending on device and settings) |
| Functional features | |
| Status LEDs | Blue, Green, Red |
| Audible buzzer | Built-in |
| Backlit keypad | Yes |
| Tamper proof tamper | Yes |
| Radio specifications | |
| Frequency band | 2,400 to 2,481 MHz / 13,541 to 13,569 MHz |
| Maximum radio power output | 0 dBuA/m - @BLE: 2 mW / @13.56 MHz: 0 dBuA/m |
| Environmental conditions | |
| Operating temperature | -20°C ÷ +60°C |
| Storage temperature | -20°C ÷ +70°C |
| Maximum relative humidity | 85% RH (without condensation) |
| Construction characteristics | |
| Degree of protection | IP65 |
| Shockproof grade | IK10 |
| Color | Black |
| Dimensions (W × H × D) | 85 × 90 × 25 mm |
