Urmet Ipassan access control kit with 2Smart keypad 1088/514
UTD 1088/514
8021156081691
The Urmet Ipassan access control kit with 2Smart keypad is a complete and professional solution for secure management of 4 gates, ideal for modern, integrated installations.

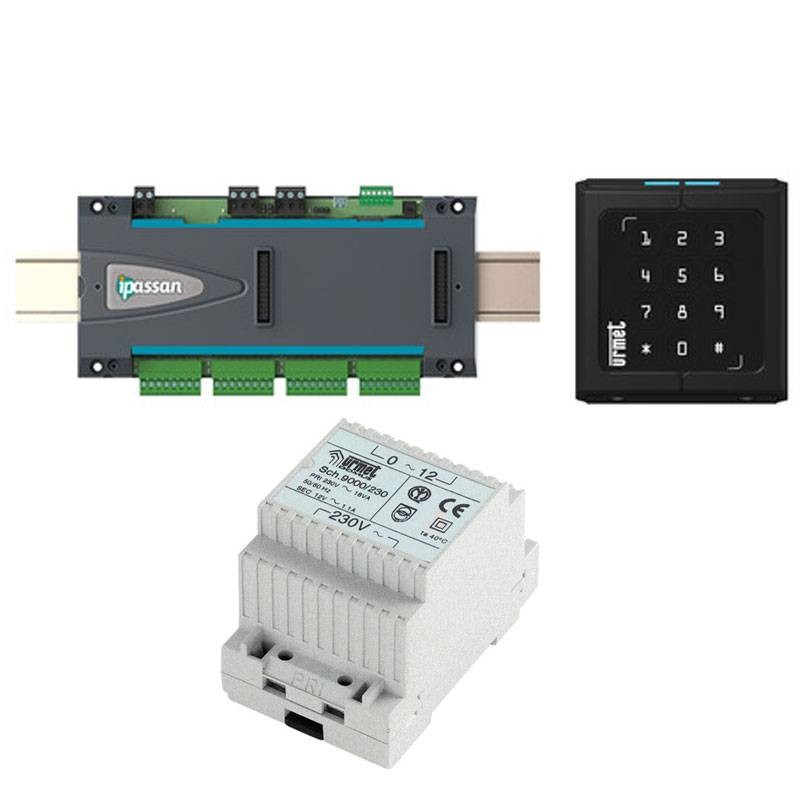

The kit includes:
-
1x Ipassan 2Smart 4-door control unit (code 1088/4)
-
1x Keypad with Mifare+ proximity reader and Bluetooth (code 1088/46)
-
1x DIN 13.2Vdc 1.8A power supply unit (cod. 1092/802)
€721.05
Items Available: 8
: 1
Frequently bought together
Complete and secure professional Urmet Ipassan access control kit
The Urmet Ipassan kit with 2Smart keypad (code 1088/514) is designed to provide efficient, secure and scalable management of entrances in residential, business or public environments. It includes an Ipassan 2Smart central unit, a keypad with proximity reader and Bluetooth, and a DIN rail power supply, providing everything needed for an immediately operational access control system.
Ipassan central unit: powerful and connected
The Ipassan Central Unit (code 1088/4) manages up to 4 gates with 48V@2A relay outputs, 12Vdc power supply, and communications via Ethernet, RS485 and USB. The system supports static IP or DHCP addressing, and integrates protected inputs for REX (fast output) and door contact with EOL management. The built-in tamper protects against physical tampering, ensuring maximum reliability even in critical environments.
2Smart keyboard with Mifare reader and Bluetooth
The Urmet 1088/46 reader-keypad allows access by code, Mifare/Mifare Plus badge or smartphone when combined with the Ipassan system and K-App app. It is equipped with status LEDs (blue, green and red), anti-sabotage tamper, 2-wire connection and IP65 and IK10 protection rating, making it suitable for outdoor installation as well.
Stable and safe power supply
The DIN rail power supply (code 1092/802) offers a 13.2VDC 1.8A output with universal 100-240Vac input, ensuring a continuous and reliable power supply for all system devices.
Ipassan access control panel 4 gates, 12Vdc, 2 Smart 1088/4
-
Power supply: 12Vdc@ 1 A with 6 gates
-
Communication:Ethernet: fixed IP or DHCP, RS485 Main for controller connection, RS485 Local for communication with input/Output modules, USB connection
-
Peripheral output:12Vdc@ 80mA
-
N. Gate relays: 4 (48V@2A)
-
REX input: protected by photo coupler
-
Door contact input: EOL management
-
Anti-sabotage tamper
-
Temperature: -20°C to 50°C
-
Dimensions (W x H x D): 200 x 90 x 34 mm
he IPassan access control system is intelligent, simple and state-of-the-art. It is designed specifically for medium and large residential and commercial buildings.
By storing all necessary information and built-in intelligence, which enables local decision making, the IPassan control unit ensures access control even if the server is idle.
The control unit manages 4 gates/peripherals connected with 2 wires and can go up to 6 gates by adding the door add-on module. LED indicators showing status of all readers and relays Secure IP and RS-485 communication. Designed for wall mounting or standard DIN rail mounting.
Advanced access control keypad for Ipassan and Transit+ systems
Urmet 1088/46 proximity reader keypad is a professional solution for access control in Transit+ and Ipassan systems. The device allows the opening of gates via numeric code, Mifare/Mifare Plus RFID tags, or via smartphone via Bluetooth, ensuring versatility and security in any context.
Access via code, badge or smartphone
The reader is compatible with URMET keys, cards and remote controls and supports the new Mifare Plus generation, increasing the security of access credentials. In addition, thanks to the Bluetooth interface, when used with Ipassan, access can also be managed through the K-App app for Android and iOS, turning your smartphone into a digital key.
Built-in status LEDs and buzzer
The module is equipped with three indicator LEDs:
-
Blue for operational unit
-
Green for access granted
-
Red for access denied.
Combined with the built-in buzzer, they provide immediate visual and audible feedback, useful for user and diagnostic purposes.
Easy installation and certified robustness
The device connects via 2-wire bus and can be installed up to 100 meters from the control panel, making it perfect even for distributed installations. Its compact design (85x90x25 mm) and IP65 rating against dust and water, along with IK10 rating against shock, make it an ideal choice even in outdoor or high-traffic environments.
Technical features
| Feature | Value |
|---|---|
| Model | Urmet 1088/46 |
| Type | Keyboard with proximity reader and Bluetooth |
| System compatibility | Transit+, Ipassan |
| Technologies supported | Mifare, Mifare Plus |
| Communication and connections | |
| Link | 2 wires - maximum distance 100 m |
| BUS outputs | 2-SMART (2-wire) |
| Supply voltage | 12 V supplied by the controller via BUS 2-wire |
| Bluetooth interface | Yes (for Ipassan system only) |
| Compatible app | K-App (iOS and Android) |
| Reading performance | |
| MIFARE Classic reading distance | Up to 40 mm |
| Mifare Plus reading distance | Up to 20 mm |
| BLE (Bluetooth) reading distance | Up to 15 m (variable depending on device and settings) |
| Functional features | |
| Status LEDs | Blue, Green, Red |
| Audible buzzer | Built-in |
| Backlit keypad | Yes |
| Tamper proof tamper | Yes |
| Radio specifications | |
| Frequency band | 2,400 to 2,481 MHz / 13,541 to 13,569 MHz |
| Maximum radio power output | 0 dBuA/m - @BLE: 2 mW / @13.56 MHz: 0 dBuA/m |
| Environmental conditions | |
| Operating temperature | -20°C ÷ +60°C |
| Storage temperature | -20°C ÷ +70°C |
| Maximum relative humidity | 85% RH (without condensation) |
| Construction characteristics | |
| Degree of protection | IP65 |
| Shockproof grade | IK10 |
| Color | Black |
| Dimensions (W × H × D) | 85 × 90 × 25 mm |
