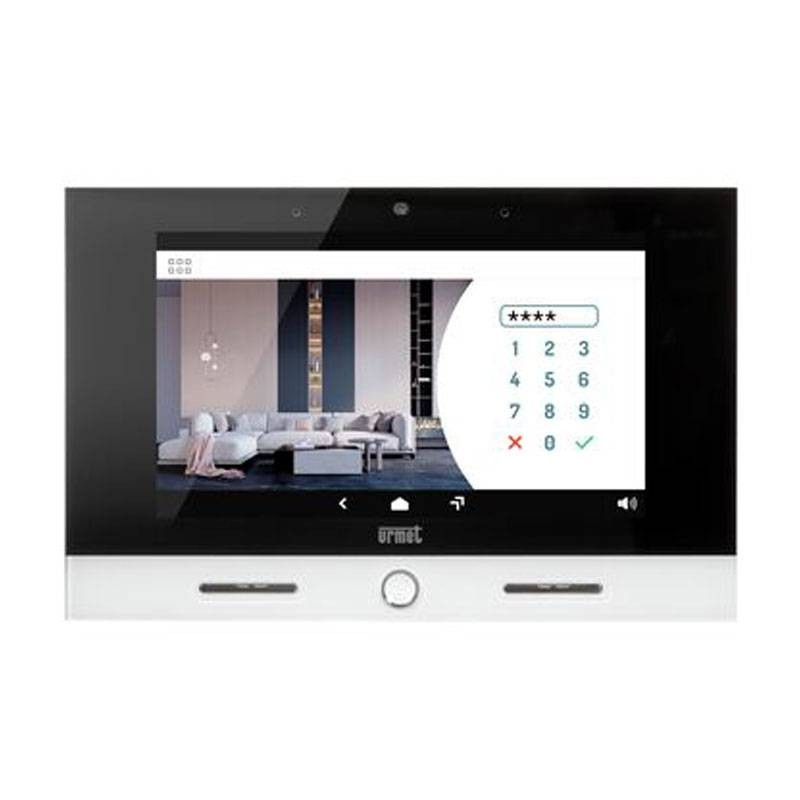

Urmet Touch Keypad for 1068 7 inch control panels 1068/027
UTD 1068/027
8021156064335
Urmet touch control keypad for 1068 control panels with the following features:
- POE supply voltage: 48 - 54 VDC
- External supply voltage: 48 dc - min. 15 W
- Maximum power consumption: 12 W
- Display 7 in.
- Resolution: 1024x600 px
- Dimensions: 212x138x24 mm (W-H-P)
Compatible with 1068 control panels with firmware version 1.025 or higher.
Urmet Touch Keypad for 1068 7 inch control panels 1068/027
€261.42
€261.42
Tax included
Tax included
Pay in installments with Klarna
Items Available: 3
Frequently bought together
The touch keypad allows you to manage the 1068 system. In addition to normal control functions, scenarios can be managed, video surveillance, video intercom, and home automation can be integrated. Music player, gallery and web browser are utilities available to the user.
The keypad provides wall-mounted installation, has a local Eth-WiFi carrier for connection with 1068 control panels and for Internet connectivity.
And powered by a PoE switch (optional code 1068/002) that provides backup on data communication.
Compatible with 1068 control panels with firmware version 1.025 or higher.
Features:
- Terminal output S+, S- : 25 mA @ 24 VDC
- Capacitive touchscreen
- Brightness: 350 cd/m2
- Viewing angle: 160° / 160°
- Operating temperature: -5 ÷ 45°C
- Frequency bands: WiFi : 2400 ÷ 2483.5 MHz, Bluetooth ver. 4.0 : 2400 ÷ 2483.5 MHz, Yokis : 2400 ÷ 2483 MHz
- Output power (Max): WiFi : 20 dBm, Bluetooth ver. 4.0 : 4 dBm, Yokis :10 dBm
There are no reviews
Data sheet
- Type:
- Keyboards
