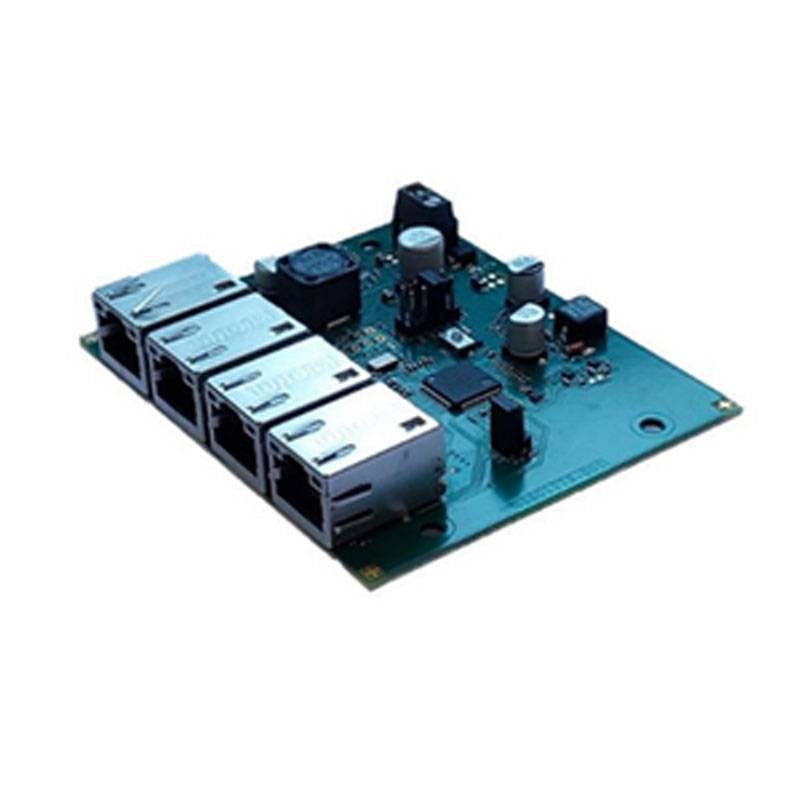

Urmet 4-port PoE interface for touch keyboard 1068 1068/002
UTD 1068/002
8021156072187
Urmet PoE interface for touch keyboard backup 1068 with the following features:
- Rated supply voltage: 13.8 VDC
- Operating voltage : 10 ÷ 14.5 Vdc
- Rated current consumption at 13.8 Vdc (without LAN connections) : 48 mA
- Rated PoE voltage: 48 Vdc
- PoE power: 14 Watts
- Dimensions: 88x74x17 mm (W-H-P)
The Poe interface is a 4-port Ethernet switch, one of which is PoE to power the 1068/027 touch keyboard and provide backup on communication with 1068 control panels.
€75.18
Items Available: 6
: 1
Frequently bought together
Features:
- Max current consumption at 13.8 VDC (PoE and LAN connections) : 1.2 mA
- ETH2, ETH3, ETH4 connections : RJ45 10/100BaseT
- MDI/MDIX automatic detection
- ETH0-PoE connection : RJ45 PoE IEE 802.3af
- 10/100BaseT MDI/MDIX automatic detection
- Transfer Mode: Storage and Forwarding
- Cable type: 100base-T CAT5 or higher UTP
- ETH0-PoE (30m)
- ETH2, ETH3, ETH4 ( 100m)
- Yellow LED RJ45 : 10/100Mbps speed
- Green RJ45 LED : Active Ethernet connection
- Dimensions (W x H x D): 88 x 74 x 17 mm
There are no reviews
Data sheet
- Type: IP interfaces
