Overview:

Do you need a nice access reader for your project? All residents in upscale homes will be thrilled with 2N Access Units 2.0. Choose a modern approach via cell phone or fingerprint. Do you prefer classic methods? In this case we offer an RFID card reader or keypad. Can't decide? Choose a combination of several methods in one. Don't look for a controller in our portfolio; it is part of each reader:



• Ideal for residential projects
• Flexibility for users
• You don't need a controller
• Wall and glass installation
• A solution that does not age over time
• Quick installation and remote administration



Power supply:

• PoE type and/or 12V/1A DC
• PoE 802.3af (Class 012.95W)



Interface:

• LAN 10/100BASE-TX with Auto-MDIX, RJ-45 conector
• Recommended wiring Cat-5e or higher
• Active switch output 8 - 12V DC/max 600mA
• Passive switch NO/NC switching contacts, up to 30V/1A AC/DC
• Passive/active mode 2 inputs (-30V to + 30V DC) - OFF = open or Uin> 1.5 V - ON = short connection or Uin> 1.5 V
• Protection switch is automatically part of 2N Access Unit 2.0
• Audio buzzer (97dBA)
• Supported protocols DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog



Bluetooth Reader:

• Bluetooth 5.0 LE compatible version
• Range (short-typically up to 3m*, long-typically up to 10m (distances should only serve as a rough guide and may vary depending on phone model and installation environment)
• RSA-1024 and AES-128 encryption security
• RX sensitivity up to -93 dBm
• Tap mode, tap inpp, card



Mobile app support:

• Android 6.0 and above, iOS 12.0 and above



RFID card reader:

• Frequency supported 125kHz variant 13.56MHz variant - 125kHz and 13.56MHz variant
• Card types supported card type compatibility depends on the order number
• 125 kHz EM4xxx - HID Prox - versions with 125 kHz and S support only in the order number
• 13.56 MHz ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key) law UID (CSN) and MIFARE® DESFire® EV2/EV3 protected cards using 2N® PICard technology
• Protected 13.56 MHz ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key), HID SE (Seos, iClass, MIFARE SE) reads MIFARE® DESFire® EV2/EV3 protected cards using 2N® PICard technology reads PACs ID (HID iClass cards with SIO)

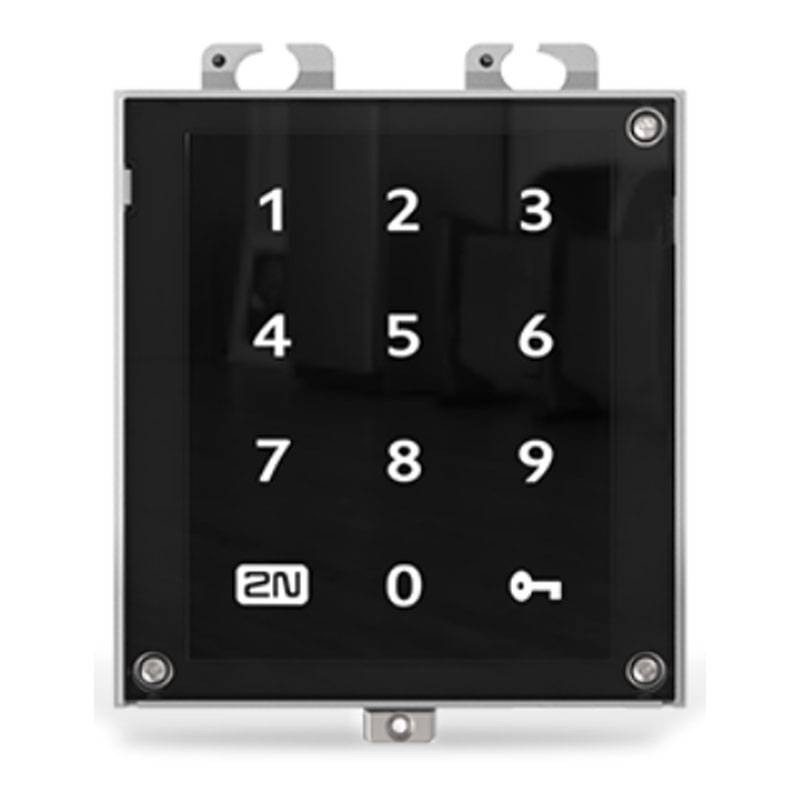

Tactile keyboard:

• Capacitive touch layer technology (0.1pF sensitivity)
• Reliable automatic constant calibration (SmartSence) does not detect false contacts on a wet surface
• Adjustable backlight intensity indication by multi-color LED lights audible signal with each touch of the keyboard



Fingerprint reader:

• Optical sensor sensor protected by durable glass
• Reliable algorithm for detecting fake fingerprints
• Resistance resistant to water and dust
• Acoustic and via multicolor LED signaling
• Large sensing area with dimensions of 15.24 x 20.32 millimeters
• Certification certified via FBI standards



Mechanical properties:

• Rugged zinc structure cover with coating (nickel and black color)
• Operating temperature -40°C to +60°C
• (2N® Access Unit 2.0 Fingerprint Reader -20°C to +55°C)
• Storage temperature -40°C to +70°C
• Operating relative humidity 10%-95% (non-condensing)
• Dimensions Surface mount frame: 1 module: 107 (W) x 130 (H) x 28 (L) mm - Wall mount frame: 1 module: 130 (W) x 153 (H) x 5 (L) mm
• Wall mounting frame (minimum wall hole size): 1 module: 108 (W) x 131 (H) x 45 (S) mm
• Max. weight 0.8 kg
• IP54 and IK08 coverage level
