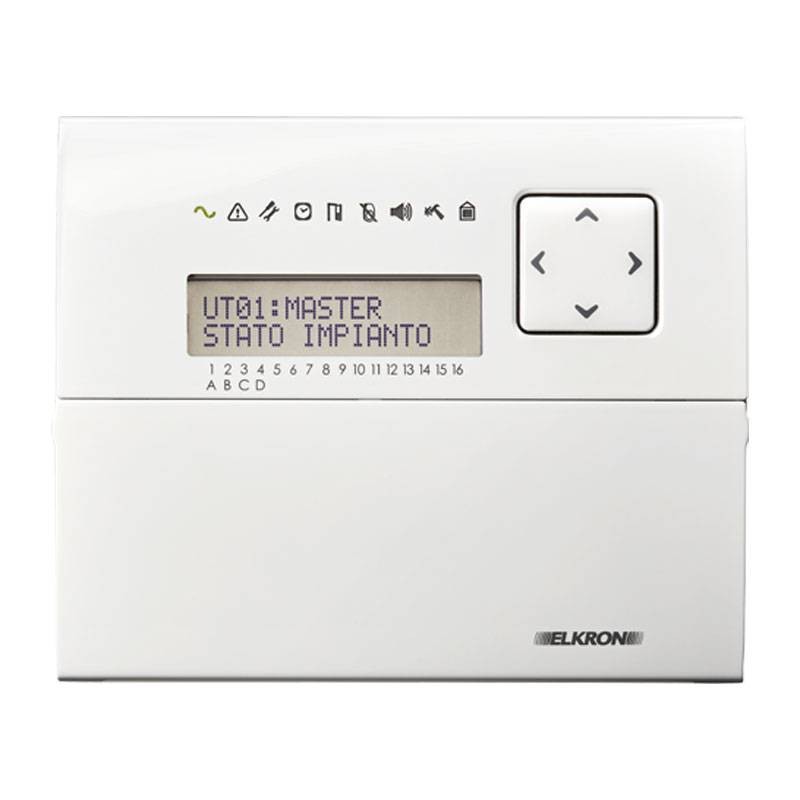

Elkron KP3000-DP Lcd Keyboard with Proximity Reader 80KP0200111
EKO 80KP0200111
8034034448608
The Elkron KP3000-DP keypad is the ideal local interface for MP3000 series alarm systems. The LCD display enables clear and immediate interaction, while the built-in proximity reader allows the user to issue commands easily via the DK70 key.
-
Compatibility: MP3000 series control panels (MP3040, MP3100, KP3000-D)
-
Function: local system interface with LCD display
-
Built-in proximity reader: supports MIFARE DK70 keys
-
Programmable inputs/outputs: 2 points (PrIO) individually configurable
-
Connection: via BUS to the control unit
-
Installation: prepared for rectangular and round flush-mounted boxes
€120.96
Items Available: 1
Frequently bought together
Elkron KP3000-DP Keypad with LCD Display for MP3000 Series Control Panels
The Elkron KP3000-DP keypad is the ideal local interface for MP3000 series alarm systems. The LCD display enables clear and immediate interaction, while the built-in proximity reader allows the user to issue commands easily via the DK70 key.
In addition to direct control of the control panel, the keypad offers two programmable PrIO points, which can be used as input or output according to the needs of the installation. Connected to the control panel via BUS, the KP3000-DP keypad provides quick and secure integration, easily fitting into rectangular or round flush-mounted boxes.
With its combination of display, proximity reader and programmable points, the KP3000-DP enables both local system management and monitoring of key system functions.
-
Intuitive interface: LCD display for clear and immediate control
-
Security: built-in MIFARE DK70 reader
-
Flexibility: two individually programmable inputs/outputs
-
Easy installation: compatible with rectangular and round flush-mounting boxes
-
Extended compatibility: operation with MP3040, MP3100 and KP3000-D control panels
| Feature | Value |
|---|---|
| Display | 2 × 16 with contrast and brightness adjustment |
| Signaling LEDs | 9 |
| Menu navigation keys | 7 |
| Alphanumeric keys | 12 total, including 3 dedicated to: - Fire alarm - Rescue - Panic |
| Buzzer | With adjustable sound level |
| PriO points (IN/OUT) | 2 on board |
| Proximity reader | Integrated, for keys model DK70 |
| Protection | Against opening and removal |
| Dimensions (W × H × D) | 151 × 125 × 29 mm |
| Certification | EN50131 grade 2 class II |
There are no reviews
Data sheet
- Type: Keyboards
